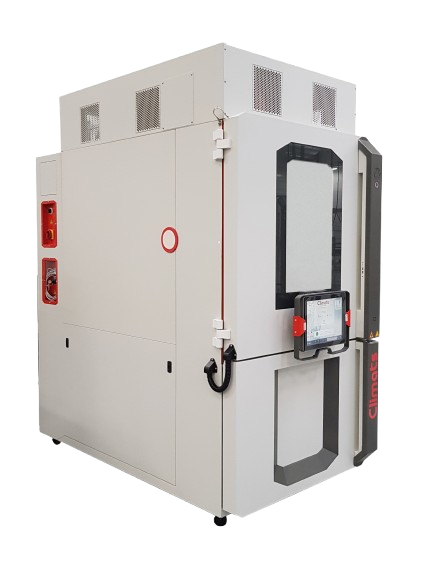

High-Temperature Thermal Chamber ESS +265°C
Climats
Extreme high-temp ESS chamber, -80°C to +265°C, for electronic board qualification in extreme environments.
Technical specifications
- Operating temperature
- -80°C to +265°C
- Speed variation
- 10°C/min linear from +200°C to -40°C, with 10 kg of PCBs
- Useful volume
- 400 liters
- Useful width
- 660 mm
- Useful depth
- 800 mm
- Useful height
- 750 mm
- Overall width
- 1300 mm
- Overall depth
- 1800 mm
- Overall height
- 2230 mm
- Cooling rate (linear)
- 10°C/min from +200°C to -40°C
- Instantaneous speed
- 20°C/min
About
Hot-cold environmental test chamber for testing electronic boards in instrumented tooling, used to characterize equipment under extreme heat, reaching a very wide temperature range from -80°C to +265°C. This chamber aims to find failures on electronic boards in the welding seams, in components, glues, and resins. Features include special high-temperature portholes, warm air extraction and fresh air supply with motorized dampers, nickel-plated evaporator, door opening safety controlled by adjustable temperature range, dry air injection solenoid valve, and air dryer.
