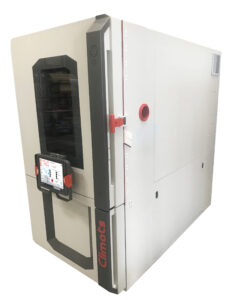

SCAL CTK
Climats
A thermal shock/climatic test chamber (SCAL CTK) equipped with the Spirale control system, offering multi-level operation and advanced test cycle management for reproducible environmental testing.
Technical specifications
- Scal 230ctk7.5 temperature range
- -80/+180°C
- Scal 300ctk7.5 temperature range
- -85/+180°C
- Scal 500ctk15 temperature range
- -90/+180°C
- Hot cabinet range (all models)
- +60/+180°C
- Standards compliance
- DIN, IEC 60068-2-14, JESD22-A104D, MIL-STD-202G, MIL-STD-750E, MIL-STD-810G, MIL-STD-883H
About
SCAL CTK is a climatic/thermal shock test cabinet controlled via the Spirale control system, which lets operators manage all equipment functions. The Spirale interface features an extra-large 15-inch touchscreen and offers three levels of use: Production (simple, clear and functional), Standard (a versatile level), and Laboratory (focused on advanced testing). It includes a tracking alarm in Shock or VRT mode to ensure reproducibility of tests. On the Spirale Vision variant, programmable pre-treatment/post-treatment allows temperature conditioning or drying of samples at the beginning and/or end of a test cycle, and an automatic defrost function optimizes the cycle so that defrosting is carried out correctly without disturbing the temperature of the samples under test. The system offers a Standard mode for easy program creation, and a Time-optimized or ‘guaranteed step time’ mode (Wait for mode) that guarantees a programmed step time regardless of the number of samples loaded. The Energy Saving mode, available on Spirale for test cabinets only, reduces electricity consumption by at least 40% during test cycles.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
