SCAL-CTR
Climats

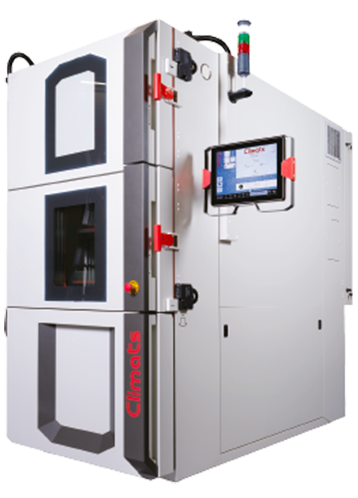

SCAL-CTR is a vertical thermal shock test chamber controlled via the Spirale touchscreen interface, used to subject samples to rapid temperature cycling for qualification and reliability testing.
Technical specifications
- Display
- Extra-large 15" touchscreen
- Usage levels
- Production, Standard, Laboratory
- Tracking alarm
- CHoc or VRT mode, for reproducibility of tests
- Pre-treatment/post-treatment
- Programmable on Spirale Vision, to temperature condition or dry samples at start/end of cycle
- Automatic defrost function
- Spirale Vision optimizes the cycle so defrosting does not disturb sample temperature
- Standard mode
- Easy program creation
- Time-optimized mode
- Guaranteed step time ('Wait for' mode) regardless of number of samples on board
- Energy Saving mode
- Only the test cabinet containing the samples operates; reduces energy consumption by 40% to 70%
About
SCAL-CTR is a vertical thermal shock chamber (Enceinte choc thermique vertical) equipped with the Spirale control system, designed to control all connected test equipment through an extra-large 15-inch touchscreen interface. The controller offers three usage levels: Production (simple, clear and functional), Standard (a versatile intermediate level), and Laboratory (focused on advanced testing). It includes a tracking alarm in CHoc (thermal shock) or VRT mode to ensure reproducibility of tests. On the Spirale Vision variant, programmable pre-treatment and post-treatment cycles allow temperature conditioning or drying of samples at the beginning and/or end of a test cycle, and an automatic defrost function optimizes the cycle so defrosting is carried out correctly without disturbing the temperature of the samples under test. The system supports Standard mode for easy program creation, a Time-optimized (‘guaranteed step time’ / Wait for) mode that guarantees a programmed step duration regardless of the number of samples loaded, and an Energy Saving mode in which only the test cabinet containing the samples operates, reducing energy consumption by between 40% and 70%.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
