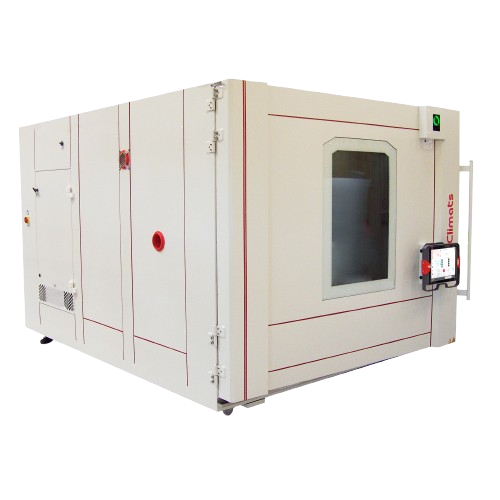

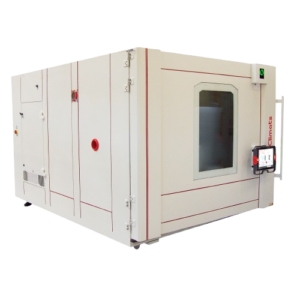

Volume over 3m³ Rigid Structure Type G
Climats
The CLIMATS Type G environmental test chamber offers large test volumes (3 m³ to 100 m³) and a wide temperature range (-70°C to +150°C) for testing large samples.
Technical specifications
- Volumes
- from 3 m3 to 100 m³
- Temperature
- from -70°C to +150°C
- Climats metallic structure enabling to function
- up to +150°C (max)
- Dimensions - Useful
- 1500 mm (Width) x 3000 mm (Depth) x 700 mm (Height)
- Dimensions - Overall
- 1700 mm (Width) x 4100 mm (Depth) x 1250 mm (Height)
- Temperature range
- +150°C to -70°C
- Speed variation
- 1.5 °C/min (up and down, from +150°C to -70°C)
- Temperature homogeneities
- below ±0.8°C
- Stability
- ±0.2°C
About
The CLIMATS Type G environmental test chambers are designed to accommodate large samples, with test volumes ranging from 3 m³ to 100 m³. These chambers can operate within a temperature range of -70°C to +150°C, utilizing a metallic structure that enables functionality up to the maximum temperature. Each machine is custom-built to specifications, with test volumes optimized based on the geometry, nature, mass, and dissipation characteristics of the product being tested. These temperature and humidity test chambers are engineered to meet various standards. They leverage CLIMATS’ expertise in ventilation, refrigeration machinery, electrical boards, and the SPIRALE piloting system. The manufacturing process is flexible, allowing for the construction of single-piece environmental test chambers or chambers with remote machinery. The SPIRALE control system offers standard mode for easy program creation, a time-optimized or “guaranteed step time” mode to ensure programmed step times regardless of sample quantity, and an Energy Saving mode that can reduce electricity consumption by at least 40% during test cycles.
Documentation
- 8069_typeG_3150dm3_EN_2020.pdf PDF source: climats-tec.com ↗
- 7554_monobloc-6m3_EN_2020.pdf PDF source: climats-tec.com ↗
- 6289_chambre-annulaire_26m3_EN_2020.pdf PDF source: climats-tec.com ↗
- 8234_essai-humide_13750_EN_2020.pdf PDF source: climats-tec.com ↗
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
