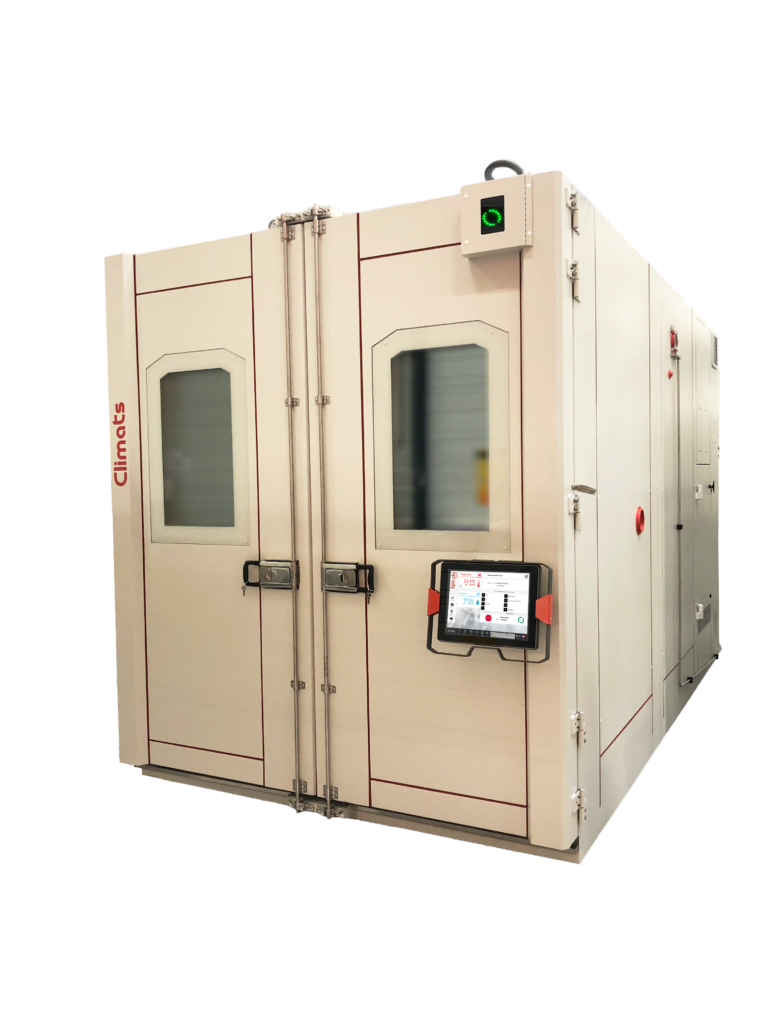

WINCAL
Climats
WINCAL is a rigid-structure walk-in environmental test chamber offering large standard test volumes with wide temperature and humidity ranges for testing voluminous items.
Technical specifications
- Chamber type
- Walk-in chamber, rigid structure
- Standard test volumes
- 2 m3, 4 m3, 8 m3, 12 m3, 16 m3 and up to 70 m3
- Operating temperature
- -70°C to +150°C
- Extended temperature range (optional)
- -80°C to +200°C
- Relative humidity
- +10% to +98%
- Cooling down rate
- 2 K/min
- Heating up rate
- 2 K/min
- Temperature stability
- ±0.1 to ±0.3 °C
- Homogeneity in space
- ±0.5 to ±1.8 °C
- Relative humidity range
- +10 to +98 %RH
- Test temperature range
- +10 to +95 °C
- Dew point range
- +4 to +94 °C
- Humidity stability over time
- ±3 %RH
- Condenser type
- water
About

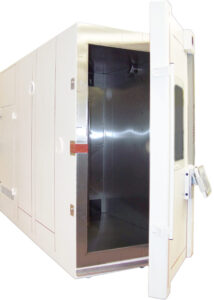

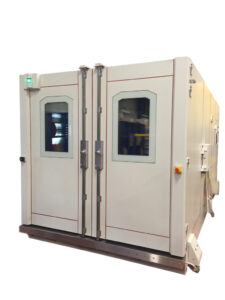

WINCAL is a flexible, adaptable walk-in climate test chamber with a rigid, one-piece structure built using a manufacturing process that allows remote machinery to be integrated according to controlled design methods. It is available as a hot-cold chamber or a hot-cold-humidity chamber, offering easy loading for voluminous test elements while achieving high performance. The standard line offers 5 test volumes: 2 m3, 4 m3, 8 m3, 12 m3, and 16 m3, with an extended option up to 70 m3. The standard temperature range is -70°C to +150°C, extendable as an option to -80°C to +200°C, with relative humidity control from +10% to +98%. Optional configurations include a notch option, portholes option, and a recessed floor (sol décaissé) door configuration.
