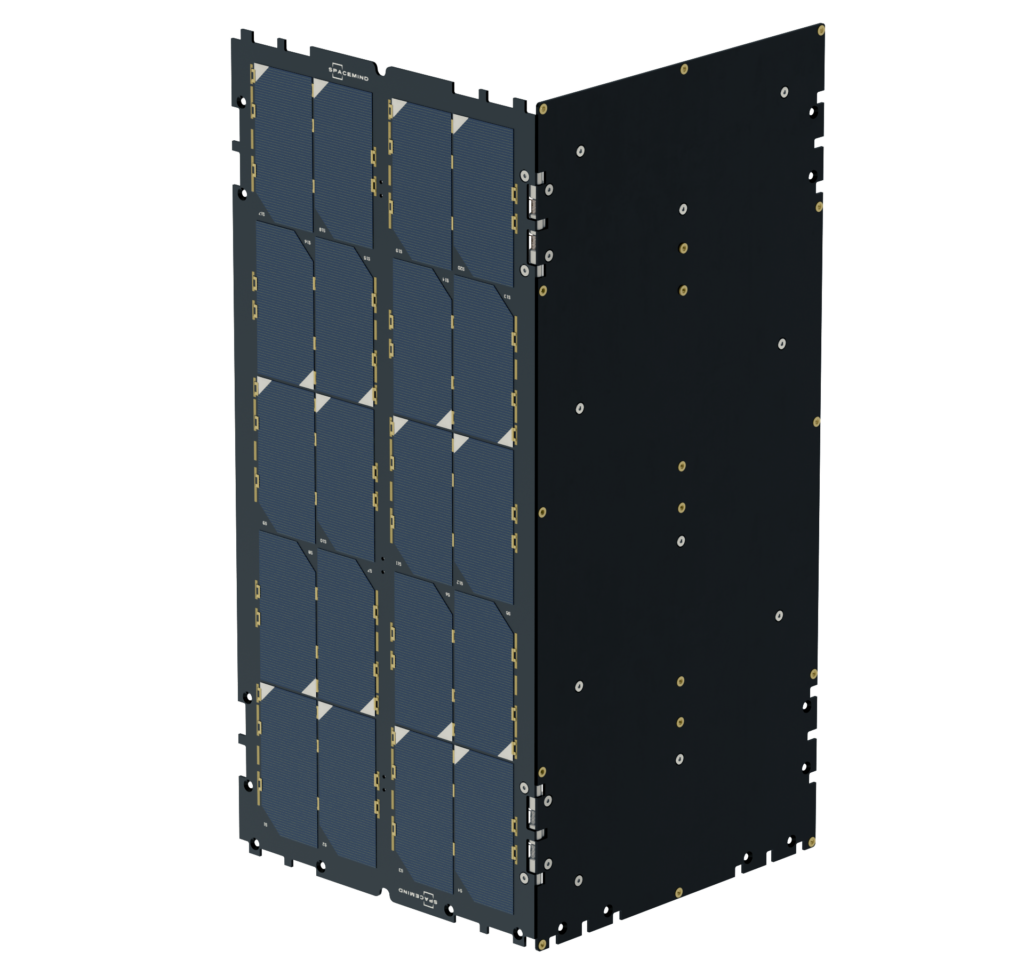

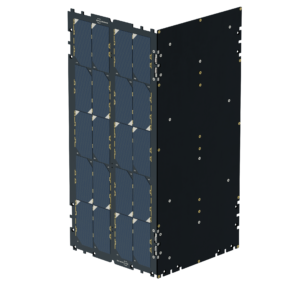

D-SP8X-L-1W
NPC Spacemind
The D-SP8X-L-1W is a deployable solar panel designed for XY side integration, compatible with 8U/16U CubeSat structures and featuring high-efficiency triple junction UTJ solar cells.
Typed specifications19 values
Discloses 6 of 12 fields engineers filter by in this category (category median 3).
- Output power (BOL)
- 23–25 W P Max · datasheet p.3 23–25 W
- Form factor (as printed)
- XY side datasheet p.3
- Deployable
- yes datasheet p.1
- Supply voltage
- 26–27.5 V product page
- Power consumption
- 23–25 W product page
- Data interface
- SPI datasheet p.1
- Fits satellite size
- 8U compatibility 8U/16U · datasheet p.3 16U compatibility 8U/16U
- Open-circuit voltage at the panel output (Voc)
- 26–27.5 V datasheet p.3
- Max-power voltage at the panel output (Vmp)
- 23–25 V datasheet p.3
- Integrated devices
- temperature sensor datasheet p.3 coarse sun sensor optional sensor add-on: 2 | gyroscope optional sensor add-on: IMU (3D Acc + 3D Gyro) | other optional sensor add-on: magnetic sensor (3 axis)
- Connector
- Power connectors: 4 x parallel datasheet p.3
- Satellite class
- CubeSat datasheet p.1
- Max-power current (Imp)
- 1–1.04 A datasheet p.3
- Integrated sensors (as printed)
- Optional add-on: digital temperature sensor (SPI / I²C), NTC temperature sensor, 2 coarse sun sensors, IMU (3D Acc + 3D Gyro), magnetic sensor (3 axis) datasheet p.3
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier8 lines, in the manufacturer's own wording
- Configuration
- 1 Wing Lateral
- Compatibility
- 8U/16U CubeSat structures
- Solar Cells
- High efficiency triple junction UTJ
- Peak power
- 23 - 25 W
- Max power current
- 1 – 1.04 A
- Max power voltage
- 23 - 25 V
- Open circuit voltage
- 26 – 27.5 V
- Power connectors
- 4 parallel picoblade
About
The D-SP8X-L-1W is a deployable solar panel specifically designed for the XY side of CubeSat structures. It features a 1-wing lateral configuration and is compatible with both 8U and 16U CubeSat platforms. This solar panel utilizes high-efficiency triple junction UTJ solar cells to maximize power generation. Key electrical specifications include a peak power output ranging from 23 to 25 W, a maximum power current of 1 to 1.04 A, and a maximum power voltage between 23 and 25 V. The open circuit voltage is specified at 26 to 27.5 V. For power connectivity, it includes 4 parallel picoblade power connectors. Customization options are available, including the possibility to add additional cells on the body fixed surface. Further options include a digital temperature sensor (with SPI / I2C communication), an NTC temperature sensor, 2 coarse sun sensors, an inertial module (3D Acc + 3D Gyro), a magnetic sensor (3 axis), and alternative solar cell connection configurations.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
