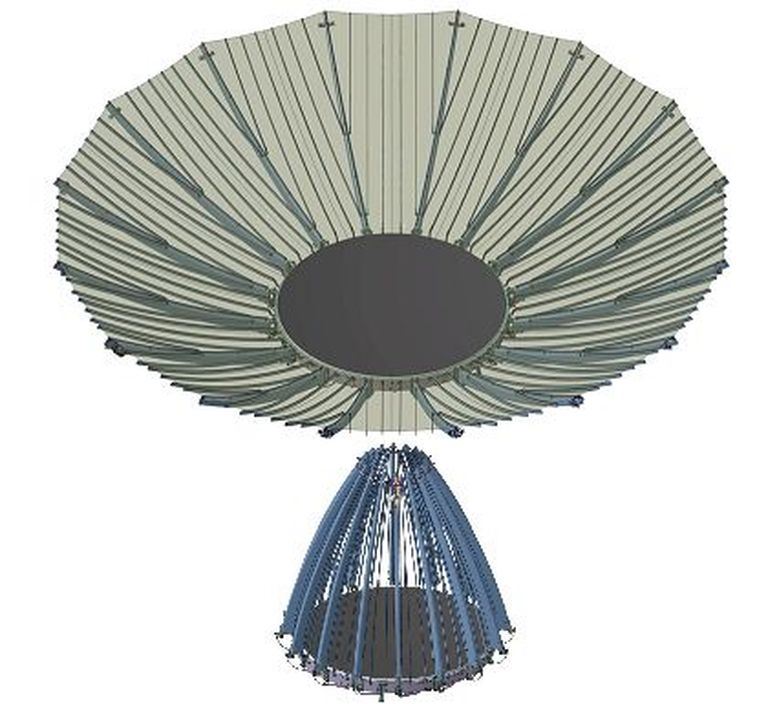

Deployable Reflector of Antenna with 4.2 m Aperture Diameter
Glavkosmos
Large deployable mesh-type reflector antenna component, 4.2 m aperture, flight-qualified for spacecraft communications systems.
Key figurescomparable across the catalogue
- Mass
- 33.5 kg
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Reflector aperture diameter (deployed)
- 4200 mm
- Maximum diameter (stowed)
- 1600 mm
- Maximum height (stowed)
- 1800 mm
- Surface form rms deviation
- ≤0.3 mm
- Mass
- ≤33.5 kg
- Flight heritage
- Flight-qualified
About
This deployable reflector is a component of large antenna systems used on spacecraft requiring high-gain, wide-aperture communications or data-relay coverage. It deploys to a 4.2 m aperture diameter in orbit while stowing to a compact 1600 mm diameter and 1800 mm height envelope for launch, minimizing fairing volume while maximizing on-orbit RF performance. The reflector achieves a tight rms surface deviation of ≤0.3 mm under operational utilization conditions, which is essential for maintaining high-frequency signal integrity and gain across the deployed structure. At a mass of no more than 33.5 kg, the reflector is optimized for mass-constrained spacecraft buses. The product carries flight qualification and can be adapted to customer requirements, making it suitable for integration into custom large-aperture communications, data-relay, or Earth observation antenna systems developed by Glavkosmos for Russian and international spacecraft programs.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
