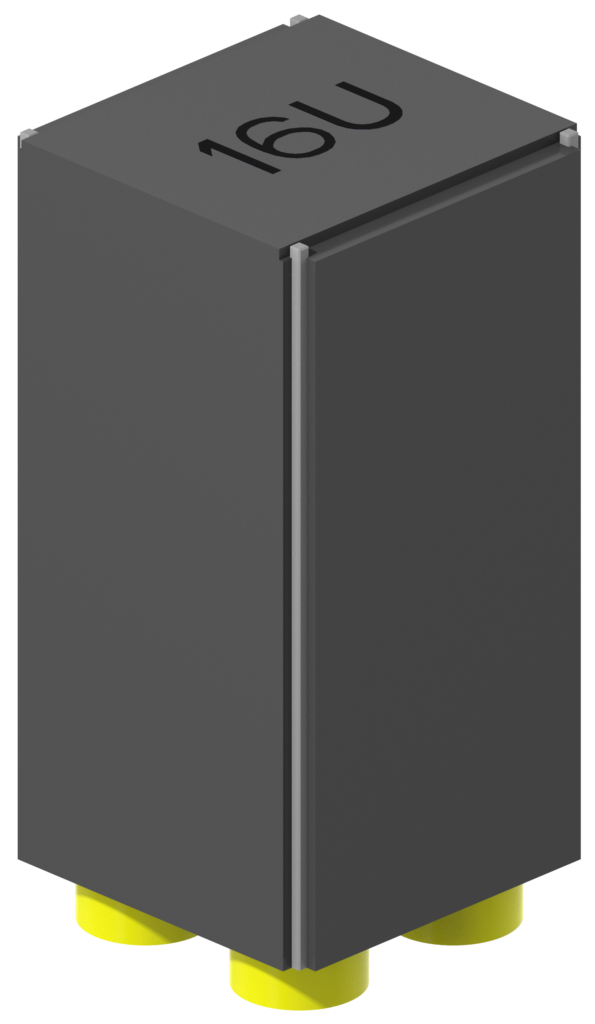

Deployer 16U SUPER LIGHT EXT
KOSMOLAB Launch Services
The KosmoLab Deployer 16U SUPER LIGHT EXT is the most lightweight deployer available, designed to maximize useful space satellite payload by significantly reducing mass.
Typed specifications36 values · 35 confirmed by the manufacturer
Discloses 17 of 17 fields engineers filter by in this category (category median 3). ✓ Manufacturer-confirmed data · 2026-09
- Capacity
- 16 U ✓ manufacturer datasheet p.1
- Mass
- 6 kg ✓ manufacturer datasheet p.1
- Max payload mass
- 40 kg ✓ manufacturer datasheet p.1
- Separation velocity
- 0.5 m/s ✓ manufacturer min · datasheet p.1 2 m/s max✓ manufacturer
- Actuator
- spring ✓ manufacturer manufacturer
- Operating temperature
- -60 °C ✓ manufacturer min · datasheet p.1 60 °C max✓ manufacturer
- TRL
- 7 ✓ manufacturer manufacturer
- Lead time
- 6 months ✓ manufacturer min · datasheet p.1 9 months max✓ manufacturer
- Export status
- ITAR-free ✓ manufacturer manufacturer
- Deployer type
- tube (P-POD type) ✓ manufacturer datasheet p.1
- Accepted satellite form factors
- 16U ✓ manufacturer datasheet p.1 16U 16U✓ manufacturer
- Satellites per form factor
- 1 ✓ manufacturer 16U · datasheet p.1
- Max mass per satellite
- 40 kg ✓ manufacturer 16U · datasheet p.1
- Max satellite envelope
- 305,3 x 305,3 x 454 ✓ manufacturer 16U · manufacturer
- Rail and interface standard
- CDS rev.14 ✓ manufacturer manufacturer
- Tuna-can volume (diameter × height)
- 280 x 70 ✓ manufacturer 16U · manufacturer
- Tip-off rate
- 2 °/s ✓ manufacturer datasheet p.1
- Launch vehicle interface
- M6, 8 bolt ✓ manufacturer manufacturer
- Release command type
- voltage pulse ✓ manufacturer manufacturer
- Release actuator voltage
- 26 V ✓ manufacturer manufacturer
- Command pulse duration
- 200 ms ✓ manufacturer manufacturer
- Satellite class
- CubeSat ✓ manufacturer datasheet p.1
- Missions flown
- 0 ✓ manufacturer manufacturer
- Quasi-static load
- 10 g ✓ manufacturer manufacturer
- Release current
- 2 A ✓ manufacturer manufacturer
- Allowed protrusion beyond the rails
- 39 mm ✓ manufacturer 16U · manufacturer
- Launch vehicles
- Angara ✓ manufacturer Angara · manufacturer PSLV PSLV✓ manufacturer | Soyuz-2 Soyuz-2✓ manufacturer | Soyuz-2.1v Soyuz-2.1v✓ manufacturer | Start-1M Start-1M✓ manufacturer
- Indicative price
- 5 000 000 EUR datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier8 lines, in the manufacturer's own wording
- Mass
- 6 kg
- Max. satellite mass
- 40 kg
- Satellite mass range
- up to 40
- Separation time
- ≤ 1 s
- Separation velocity
- 0.5 – 2.0 m/s
- Angular separation velocity
- ≤ 2 °/s
- Operating temperature
- −60°C to +60°C
- Payload
- 1 × CubeSat 16U
About
The KosmoLab Deployer 16U SUPER LIGHT EXT features a unique construction and utilize composites to achieve significantly reduced mass, while also providing extended areas for CubeSat spacing. These deployers maintain both longitudinal and lateral clamping of the CubeSat, ensuring secure deployment. They are easily adaptable to specific requirements of your space satellite; customers can provide nonstandard CubeSat parameters to KosmoLab for an optimal solution. This product allows for the launch of useful space satellite payload instead of auxiliary deployer’s KGs, making it an efficient choice for CubeSat deployment.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
