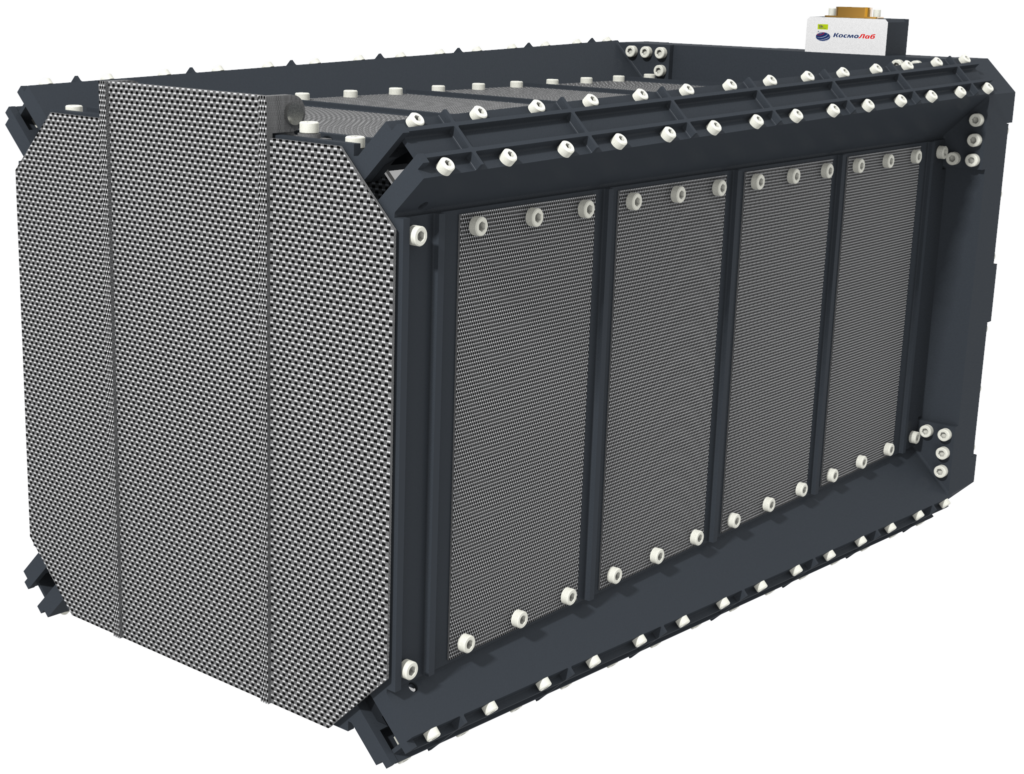

Deployer 12U SUPER LIGHT EXT
KOSMOLAB Launch Services
The KosmoLab 12U SUPER LIGHT EXT deployer is a lightweight solution for launching CubeSats, designed to maximize payload mass by minimizing the deployer's own weight.
Typed specifications35 values · 35 confirmed by the manufacturer
Discloses 17 of 17 fields engineers filter by in this category (category median 3). ✓ Manufacturer-confirmed data · 2026-09
- Capacity
- 12 U ✓ manufacturer datasheet p.1
- Mass
- 6 kg ✓ manufacturer datasheet p.1
- Max payload mass
- 26 kg ✓ manufacturer datasheet p.1
- Separation velocity
- 0.5 m/s ✓ manufacturer min · datasheet p.1 2 m/s max✓ manufacturer
- Actuator
- spring ✓ manufacturer manufacturer
- Operating temperature
- -60 °C ✓ manufacturer min · datasheet p.1 60 °C max✓ manufacturer
- TRL
- 7 ✓ manufacturer manufacturer
- Lead time
- 6 months ✓ manufacturer min · datasheet p.1 9 months max✓ manufacturer
- Export status
- ITAR-free ✓ manufacturer manufacturer
- Deployer type
- tube (P-POD type) ✓ manufacturer datasheet p.2
- Accepted satellite form factors
- 12U ✓ manufacturer datasheet p.2 12U 12U✓ manufacturer
- Satellites per form factor
- 1 ✓ manufacturer 12U · manufacturer
- Max mass per satellite
- 26 kg ✓ manufacturer 12U · datasheet p.2
- Max satellite envelope
- 226.3 x 226.3 x 340.5 ✓ manufacturer 12U · manufacturer
- Rail and interface standard
- CDS rev.14 ✓ manufacturer manufacturer
- Tuna-can volume (diameter × height)
- 80 х 40 ✓ manufacturer 12U · manufacturer
- Tip-off rate
- 2 °/s ✓ manufacturer datasheet p.2
- Launch vehicle interface
- M6, 8 bolt ✓ manufacturer manufacturer
- Release command type
- voltage pulse ✓ manufacturer manufacturer
- Release actuator voltage
- 28 V ✓ manufacturer manufacturer
- Command pulse duration
- 200 ms ✓ manufacturer manufacturer
- Satellite class
- CubeSat ✓ manufacturer datasheet p.2
- Missions flown
- 0 ✓ manufacturer manufacturer
- Quasi-static load
- 10 g ✓ manufacturer manufacturer
- Release current
- 2 A ✓ manufacturer manufacturer
- Allowed protrusion beyond the rails
- 39 mm ✓ manufacturer 12U · manufacturer
- Launch vehicles
- Angara ✓ manufacturer Angara · manufacturer PSLV PSLV✓ manufacturer | Soyuz-2 Soyuz-2✓ manufacturer | Soyuz-2.1v Soyuz-2.1v✓ manufacturer | Start-1M Start-1M✓ manufacturer
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier7 lines, in the manufacturer's own wording
- Mass
- 6 kg
- Max. satellite mass
- 26 kg
- Satellite mass range
- up to 26 kg
- Separation time
- ≤ 1 s
- Separation velocity
- 0.5 – 2.0 m/s
- Angular separation velocity
- ≤ 2 °/s
- Operating temperature
- −60°C to +60°C
About
The KosmoLab 12U SUPER LIGHT EXT deployer is touted as the most lightweight deployer available, aiming to allow for a larger useful space satellite payload instead of auxiliary deployer mass. It features a unique KosmoLab construction utilizing composites, which significantly reduces its mass while providing extended areas for CubeSat spacing. The design ensures both longitudinal and lateral clamping of the CubeSat. The “SUPER LIGHT” series deployers are adaptable to modifications based on specific requirements of a space satellite; customers can provide nonstandard CubeSat parameters for an optimal solution. It is designed for CubeSats up to 26 kg and offers a rapid separation time of less than 1 second.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
