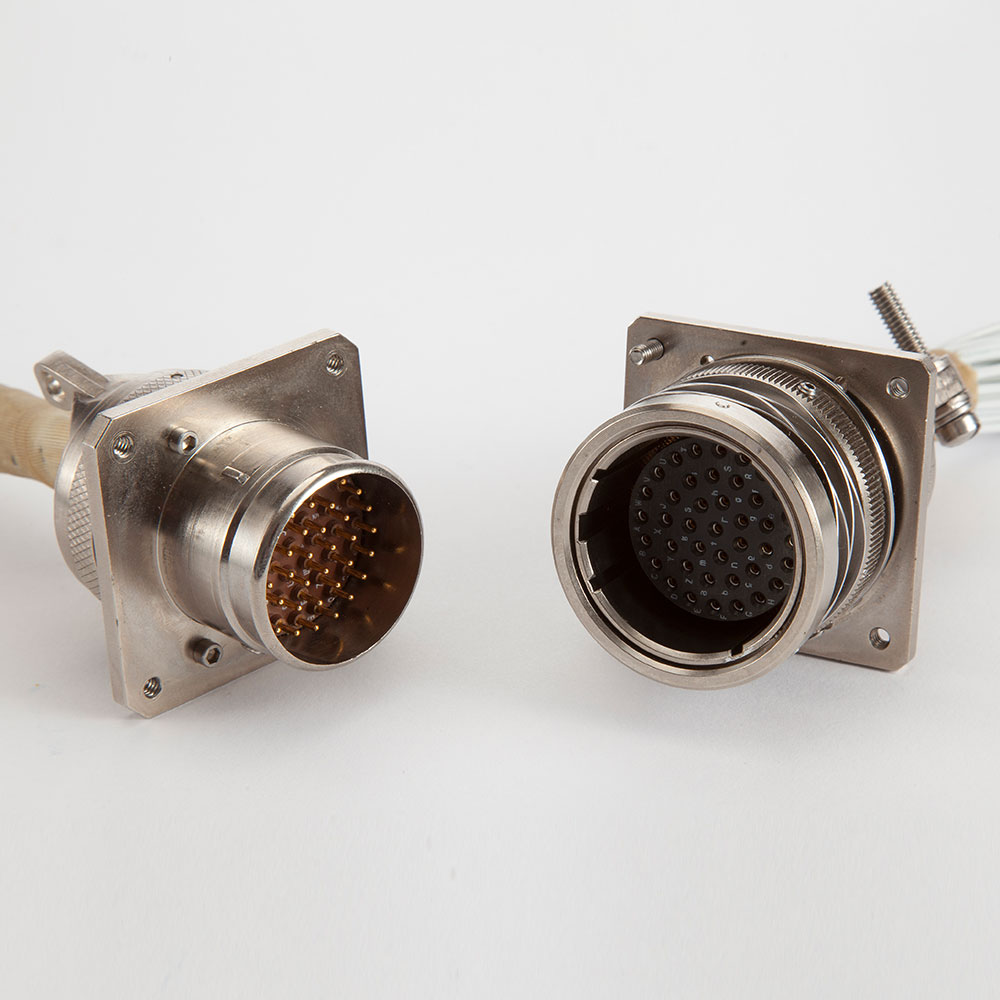

ZSF100P Plug Connector
Ensign-Bickford Aerospace & Defense (EBAD)
The ZSF100P is a plug connector featuring a shell size of 17 and an 8-pin insert arrangement. It is designed to mate with the DF200SS2 receptacle. This connector offers zero separation force (or adjustable to customer specifications), an engagement force of 90 N (20 lbf), and can tolerate a linear misalignment of 0.76 mm (0.03 […]
Key figurescomparable across the catalogue
- Mass
- 0.117 kg
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Connector Model
- ZSF100P
- Style
- Plug
- Shell Size
- 17
- Insert Arrangement
- 8
- Mates With
- DF200SS2
- Separation Force
- 0 N (0 lbf) (or adjustable to customer spec)
- Engagement Force
- 90 N (20 lbf)
- Linear Misalignment
- 0.76 mm (0.03 in) min
- Maximum Angular Misalignment
- 20° Cone
- Qualification Temperature Range
- -55°C to +200°C
- Mass
- 117 g (0.29 lb)
About
The ZSF100P is a plug connector featuring a shell size of 17 and an 8-pin insert arrangement. It is designed to mate with the DF200SS2 receptacle. This connector offers zero separation force (or adjustable to customer specifications), an engagement force of 90 N (20 lbf), and can tolerate a linear misalignment of 0.76 mm (0.03 in) minimum and a maximum angular misalignment of 20° Cone. It is qualified for a temperature range of -55°C to +200°C and has a mass of 117 g (0.29 lb). It utilizes standard MIL-DTL-38999 inserts and MIL-C-39029 pin and socket contacts, and is compatible with AS85049 backshells.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
