About Ensign-Bickford Aerospace & Defense (EBAD)

Ensign-Bickford Aerospace & Defense (EBAD) is a US manufacturer of ordnance and release systems for spacecraft and launch vehicles, with heritage dating back to the Ensign-Bickford Company founded in the 19th century.

For the small-satellite market EBAD produces the TiNi shape-memory-alloy family of non-explosive actuators — FrangiBolt bolt-release actuators, pin pullers and ejectors — widely used for solar-array, antenna and payload hold-down and release. The devices are resettable on the ground, contain no pyrotechnics and have extensive flight heritage.

Company Info

Headquarters Simsbury, Connecticut, USA, United States

Specializations

manufacturer

Website ebad.com ↗

Products

1 8

Pull force at beginning of stroke	45 lbf (200 N)
Pull force at end of stroke	25 lbf (111 N)
Fuse wire resistance	1.2 to 2.0 Ω @ 25°C
Actuation current	4 Amps for 25 ms
No-fire current (continuity)	250 mA
Release time	<50 ms
Qualification temperature range	-101°C to +172°C
Mass	182 g (0.40 lb)

Mass	1.66 oz [47 g] MAX
Number of wires	2 TOTAL (2 PRIMARY ONLY)
Cable length	30.0 in [STANDARD LENGTH]
Operational current	3 Amps FOR 50 ms
Resistance	0.95 to 1.6Ω @ 23°C
Insulation resistance	>100 MΩ @ 250 VDC
No fire limit	210 mA FOR 5 MIN @ AMBIENT
Pull force (BEGINNING OF TRAVEL)	14.2 lbf [6.5 Kg / 63.5 N] MIN
Pull stroke	0.315in [8.0 mm]
Side load	35 lbf [15.9 kg / 155.7 N] MIN
Actuation time	50 ms MAX @ 3.0 Amps
Re-usable	MANUAL REPLACEMENT OF FUSE WIRE
Non-operational pre-actuation	-76°F TO +230°F [-60°C TO +110°C]
Operational	-76°F TO +230°F [-60°C TO +110°C]
Non-operational post-actuation	-76°F TO +230°F [-60° C TO +110°C]
Random vibration	29.4 Grms

3 2

Manufacturer	EBAD
Lead time	24 weeks

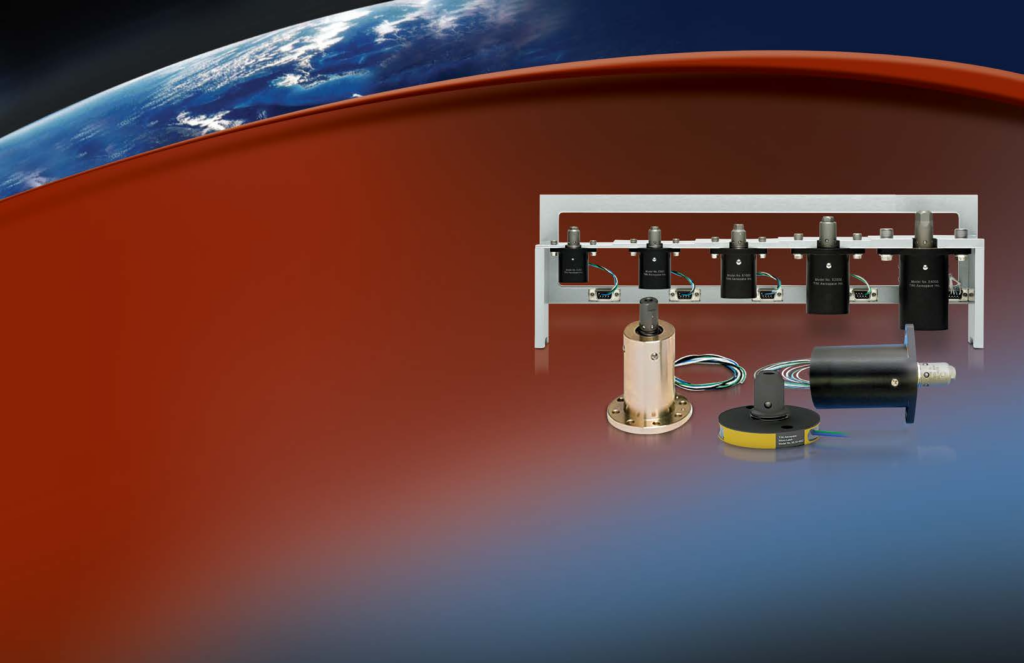

A non-pyrotechnic, field-resettable separation system for low preload dispensing, utilizing shape memory alloy technology.

1 15

Max release load	50 lbf (222 N)
Proof load	100 lbf (445 N)
Max torque	25 in-oz
Coupler kick-off force	7.5 lbf
Mass	.53 (15 g)
Voltage range	3 to 5.5 V
Operating current	1.5 to 3.75 A
Resistance	1.75±.3 Ω
Function time @ 23°c	120 ms max @ 1.75 A
Cycle life	50 min
Operating temperature	-50ºC + 60ºC
Height (without coupler)	.5 in
Height (with coupler)	.65 in
Max diameter (with flange)	1.00 in
Std coupler engagement size	.112 in-40

A non-pyrotechnic, field-resettable separation system for low preload dispensing, utilizing shape memory alloy technology, with a higher voltage range.

Max release load	50 lbf (222 N)
Proof load	100 lbf (445 N)
Max torque	25 in-oz
Coupler kick-off force	7.5 lbf
Mass	.53 (15 g)
Voltage range	10 to 18 V
Operating current	1.5 to 3.75 A
Resistance	5.75±1 Ω
Function time @ 23°c	120 ms max @ 1.75 A
Cycle life	50 min
Operating temperature	-50ºC + 60ºC
Height (without coupler)	.5 in
Height (with coupler)	.65 in
Max diameter (with flange)	1.00 in
Std coupler engagement size	.112 in-40

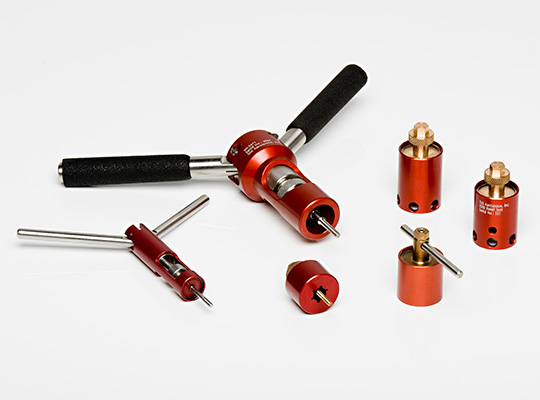

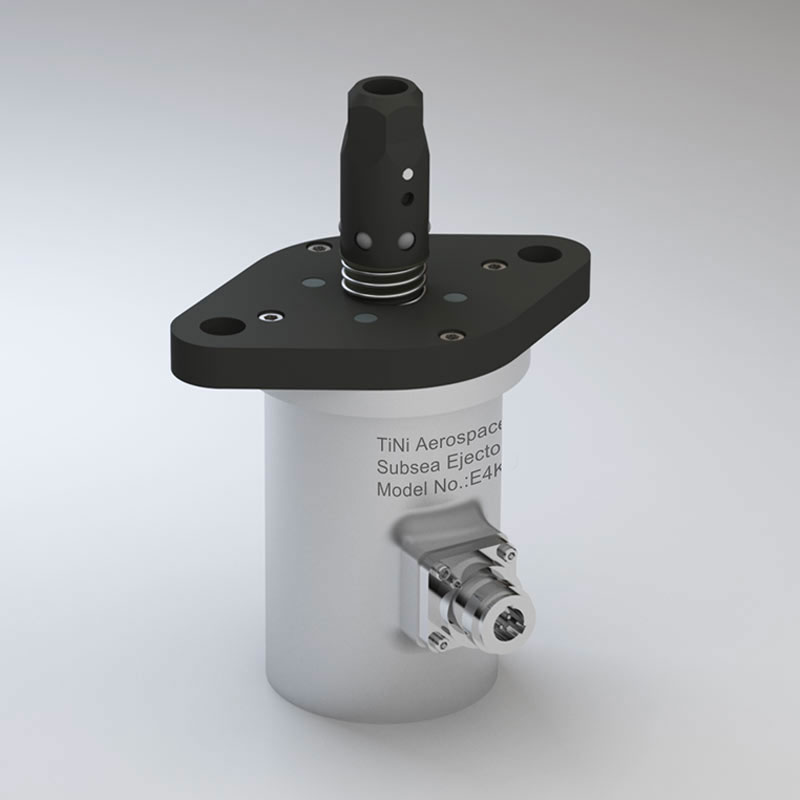

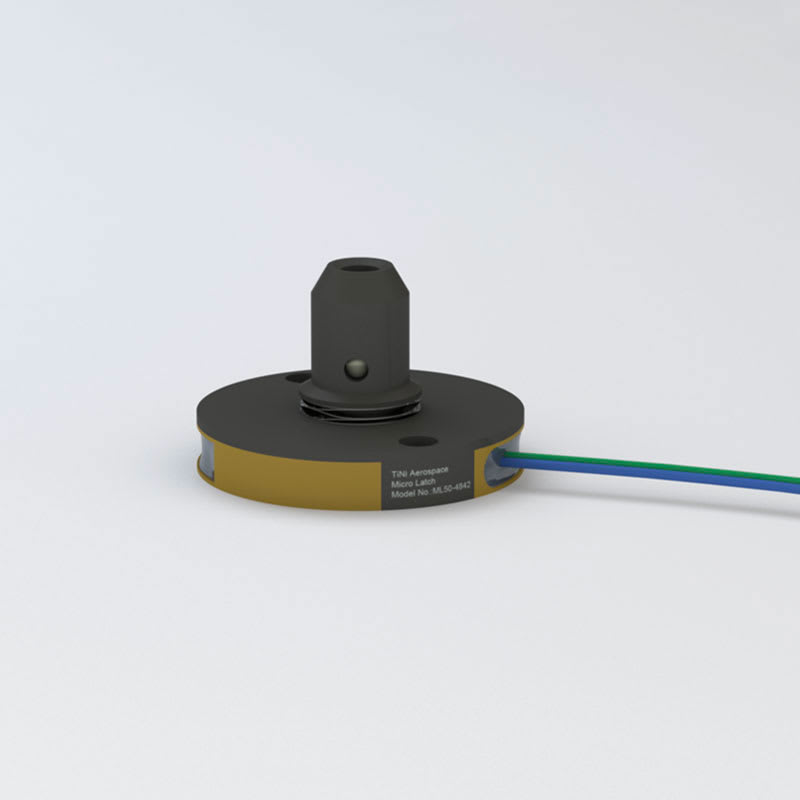

3 6

Attaching screw thread size	4-40 to 3/8”-24
Preload range	50 lbF (222 N) to 4000 lbF (17800 N)
Erm qualified life	minimum 50 cycles
Micro latch qualified life	minimum 100 cycles
Actuation pulse (TiNi™ ERMs)	25 milliseconds or less (standard pyro pulse)
Operating voltage (Micro Latch)	12Vdc (adjustable)

Flight-proven

3 4

Pin puller pull force range	5 to 1000 lbf
Standard sizes offered	Five
Flight heritage	Mars Global Surveyor spacecraft (November 1996) and numerous other space applications
Minimum qualified life	100 cycles

1 5

Type	Flight Termination System (FTS)
Components	ESAD, FCDCA transfer lines, destruct charges (bulk, linear, bi-directional, conical)
Redundancy	Redundant explosive assemblies
Applications	Launch vehicles, tactical missiles, hypersonics, strategic missiles
System role	Range safety — vehicle destruction on wayward flight

Connector model	IFD100
Style	Plug
Shell size	19
Insert arrangement	35
Mates with	IFD200
Shell size (2)	25
Insert arrangement (2)	4, 20
Mates with (2)	IFD200
Separation force	0 N (0 lbf) (or adjustable to customer spec)
Engagement force	90 N (20 lbf)
Linear misalignment	0.76 mm (0.03 in) min
Maximum angular misalignment	20° Cone
Qualification temperature range	-55°C to +200°C
Mass	117 g (0.29 lb)

Connector model	IFD200
Style	Receptacle
Shell size	19
Insert arrangement	35
Mates with	IFD100
Shell size (2)	25
Insert arrangement (2)	4, 20
Mates with (2)	IFD100
Separation force	0 N (0 lbf) (or adjustable to customer spec)
Engagement force	90 N (20 lbf)
Linear misalignment	0.76 mm (0.03 in) min
Maximum angular misalignment	20° Cone
Qualification temperature range	-55°C to +200°C
Mass	117 g (0.29 lb)

Mass	47 g (1.66 oz) max
Side load	20 lbf (88.9 N)
Function time	50 ms max @ 3.0 A
Emitted shock	<1,000 g’s
Nominal actuation current	4 Amps for 25 ms
Resistance	.95 to 1.6 Ω @ 23°C
Insulation resistance	>100 MΩ @ 250 VDC
No-fire limit	210 mA for 5 min @ Ambient
Pull force (Beginning of Travel)	Beginning: 14.2 lbf (63.2 N)
Pull force (End of Travel)	End: 6.0 lbf (26.6 N)
Pull stroke	0.315 in (8.0 mm)
Field-refurbishable	With additional fuse wire assemblies (max 10 times)
Non-operational pre-actuation temperature	-51°C to +43°C (-60°F to +110°F)
Operating temperature	-51°C to +43°C (-60°F to +110°F)
Non-operational post-actuation temperature	-51°C to +43°C (-60°F to +110°F)
Mass (max)	1.66 oz [47 g] MAX
Number of wires	2 TOTAL (2 PRIMARY ONLY)
Cable length	30.0 in [STANDARD LENGTH]
Operational current	3 Amps FOR 50 ms
Resistance (2)	0.95 to 1.6Ω @ 23°C
Insulation resistance (2)	>100 MΩ @ 250 VDC
Pull force (BEGINNING OF TRAVEL) (min)	14.2 lbf [6.5 Kg / 63.5 N] MIN
Pull stroke (2)	0.315in [8.0 mm]
Side load (min)	35 lbf [15.9 kg / 155.7 N] MIN
Actuation time	50 ms MAX @ 3.0 Amps
Re-usable	MANUAL REPLACEMENT OF FUSE WIRE
Non-operational pre-actuation temperature (2)	-76°F TO +230°F [-60°C TO +110°C]
Operating temperature (2)	-76°F TO +230°F [-60°C TO +110°C]
Non-operational post-actuation temperature (2)	-76°F TO +230°F [-60° C TO +110°C]
Random vibration	29.4 Grms

Flight-proven

1 6

Type	Non-Explosive Actuator (NEA) Hold-Down and Release Mechanisms
Actuation principle	Fusewire-activated split-spool release (non-pyrotechnic)
Shock level	Ultra-low shock
Variants	HDRM, pin pullers, cell bypass switches, isolation valves
Flight heritage	20+ years: A2100, Spacebus, Eurostar, LS-1300, JWST
Refurbishment	Factory resettable

Shell size	19
Insert arrangement	35
Mates with	IFD200
Separation force	0 N (0 lbf) (or adjustable to customer spec)
Engagement force	90 N (20 lbf)
Linear misalignment	0.76 mm (0.030 in)

Shell size	25
Insert arrangement	4, 20
Mates with	IFD200
Separation force	0 N (0 lbf) (or adjustable to customer spec)
Engagement force	90 N (20 lbf)
Linear misalignment	0.76 mm (0.030 in)

Shell size	19
Insert arrangement	35
Mates with	IFD100
Separation force	0 N (0 lbf) (or adjustable to customer spec)
Engagement force	90 N (20 lbf)
Linear misalignment	0.76 mm (0.030 in)

Shell size	25
Insert arrangement	4, 20
Mates with	IFD100
Separation force	0 N (0 lbf) (or adjustable to customer spec)
Engagement force	90 N (20 lbf)
Linear misalignment	0.76 mm (0.030 in)

A non-pyrotechnic Hold Down & Release Mechanism (HDRM) for spacecraft, supporting release loads up to 250 lbf with ultra-low shock.

1 10

Proof load rating	300 lbf (1,300 N)
Release load rating	250 lbf (1,100 N)
Output shock @ preload	<300 g's @ 250 lbf (1,112 N)
Fuse wire resistance	0.8 - 1.8 Ω
Actuation current	3.0 Amps for 50 ms
No-fire current	250 mA
Release time	<50 ms
Operating temperature	-60°C to 125°C
Maximum angular misalignment	3° Cone
Mass	<13.6 g (.03 lbm)

Flight-proven

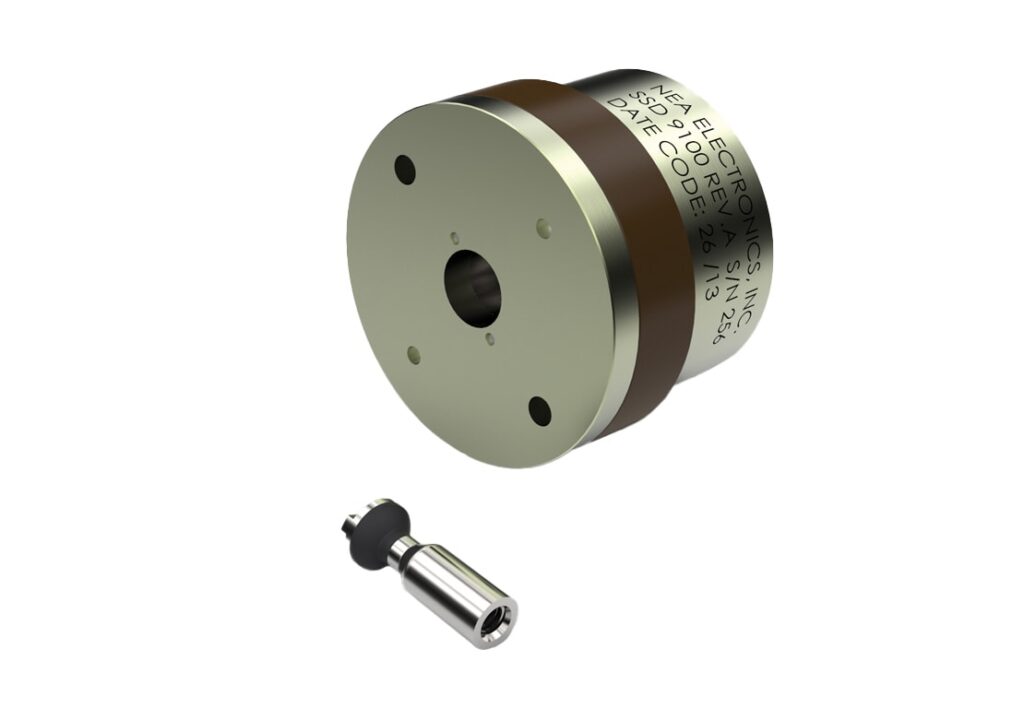

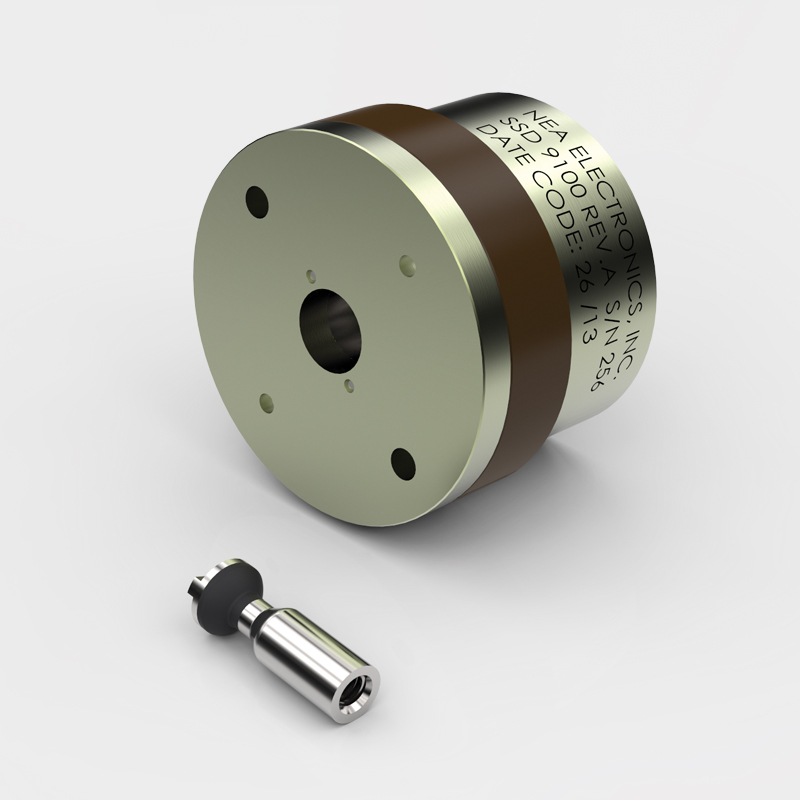

The NEA Model 9100 is an electrically initiated, one-shot non-pyrotechnic Hold Down & Release Mechanism (HDRM) designed to carry high tensile preloads until commanded to release, supporting release loads up to 1,360 lbf (6,000 N).

1 8

Proof load rating	1,700 lbf (7,600 N)
Release load rating	1,360 lbf (6,000 N)
Shock @ preload	<300 g's @ 1,360 lbf (6,000 N)
Fuse wire resistance	1.2 to 2.0 Ω @ 25°C
Actuation current	4 Amps for 25 ms
No-fire current	250 mA at 10-5 Torr @ 110°C
Release time	<50 ms
Maximum angular misalignment	3° Cone

Flight-proven

The NEA Model 9106B is a non-pyrotechnic, electrically initiated, one-shot Hold Down & Release Mechanism (HDRM) capable of supporting release loads up to 32,000 lbf (142,000 N).

1 10

Proof load rating	40,000 lbf (178,000 N)
Release load rating	32,000 lbf (142,000 N)
Shock @ preload	<1,000 g's @ 32,000 lbf (142,000 N)
Fuse wire resistance	1.2 to 2.0 Ω @ 25°C
Actuation current	4 Amps for 25 ms
No-fire current (continuity)	250 mA at 10-5 Torr @ 110°C
Release time	<50 ms
Operational temperature range	-135°C to +135°C
Maximum angular misalignment	6° Cone
Mass	700 g (1.5 lbm)

Flight-proven

1 11

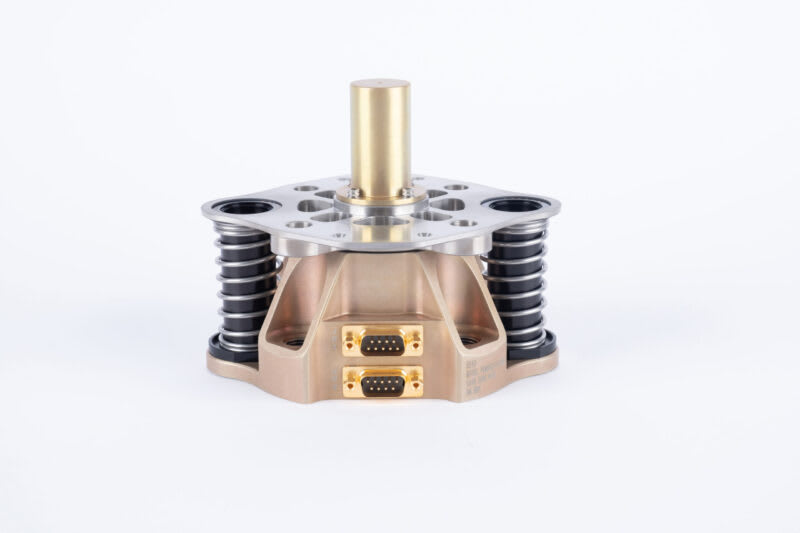

Axial preload	Up to 15,000 lbf
Axial stiffness	9.28 E+5 lbf/in
Shear stiffness	5.98 E+6 lbf/in
Bending stiffness	2.38 E+6 in-lbf/rad
Shock output	<500 g’s
Actuation current	6 Amps for 15 ms
Release time	<50 ms
Total mass	6.5 lbm
Flyaway mass	1.8 lbm
Operating temperature	-90°C to +135°C
Total spring energy per prm (configurable)	2.82 to 20.6 Joules

Flight-proven

1 11

Axial preload	Up to 8,500 lbf
Axial stiffness	2.02 E+6 lbf/in
Shear stiffness	9.0 E+5 lbf/in
Bending stiffness	7.5 E+5 in-lbf/rad
Shock output	<300 g’s
Actuation current	6 Amps for 15 ms
Release time	<40 ms
Total mass	3.6 lbm
Flyaway mass	1.4 lbm
Operating temperature	-90°C to +135°C
Total spring energy per prm (configurable)	2.82 to 16.2 Joules

1 6

Shell size	21
Insert arrangement	11, 16, 35, 41
Mates with	ZSF200
Separation force	0 N (0 lbf) (or adjustable to customer spec)
Engagement force	90 N (20 lbf)
Linear misalignment	0.76 mm (0.030 in)

Reliable in-flight electrical disconnects for satellite and spacecraft separation, missile staging, and umbilical separation, designed to provide precision zero, positive or negative separation force.

1 14

Separation force	0 N (0 lbf) (or adjustable to customer spec)
Engagement force	90 N (20 lbf)
Linear misalignment	0.76 mm (0.03 in) min
Maximum angular misalignment	20° Cone
Qualification temperature range	-55°C to +200°C
Mass	117 g (0.29 lb)
Proof Load Rating	1,700 lbf (7,600 N)
Release Load Rating	1,360 lbf (6,000 N)
Shock @ Preload	<300 g's @ 1,360 lbf (6,000 N)
Fuse Wire Resistance	1.2 to 2.0 Ω @ 25°C
Actuation Current	4 Amps for 25 ms
No-Fire Current	250 mA at 10-5 Torr @ 110°C
Release Time	<50 ms
Operational Temperature Range	-135°C to +135°C

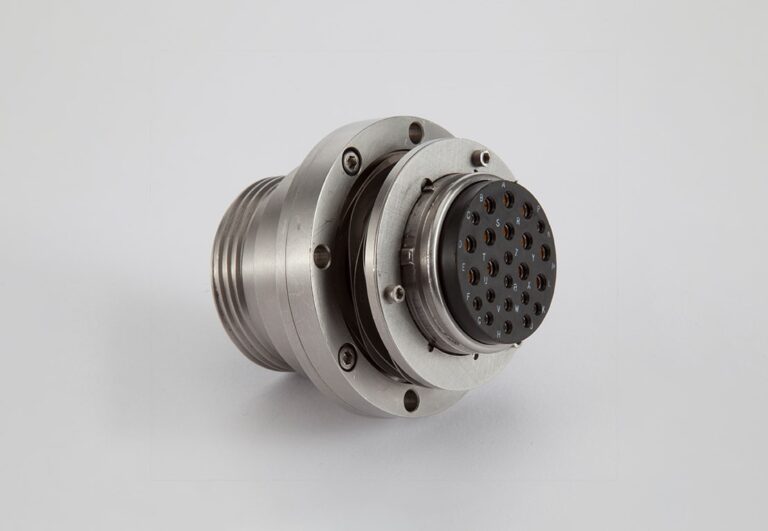

1 6

Shell size	17
Insert arrangement	8 DF200SS2
Mates with	ZSF202S
Separation force	0 N (0 lbf) (or adjustable to customer spec)
Engagement force	90 N (20 lbf)
Linear misalignment	0.76 mm (0.030 in)

Shell size	21
Insert arrangement	11, 16, 35, 41
Mates with	ZSF100
Separation force	0 N (0 lbf) (or adjustable to customer spec)
Engagement force	90 N (20 lbf)
Linear misalignment	0.76 mm (0.030 in)

Shell size	25
Insert arrangement	62
Mates with	ZSF100P
Separation force	0 N (0 lbf) (or adjustable to customer spec)
Engagement force	90 N (20 lbf)
Linear misalignment	0.76 mm (0.030 in)

Flight-proven

The NEA® 15" Payload Release Ring (PRR-15) is a flight-proven mechanism designed to release payloads from a launch vehicle, utilizing four NEA® release mechanisms and separation springs.

2 8

Payload capability	250 kg
Shock output	<300 g’s
Release time	<40 ms
Total mass	6.4 lb (2.9 kg)
Fly away mass	2.2 lb (1 kg)
Operating temperature	-40°C to +102°C
Spring energy	3.57 J
Number of springs	4 to 20

Flight-proven

2 8

Payload capability	500 kg
Shock output	<300 g’s
Release time	<40 ms
Total mass	10.58 lb (4.8 kg)
Fly away mass	3.5 lb (1.6 kg)
Operating temperature	-90°C to +135°C
Spring energy, j	3.57
Number of springs	4 to 30

Flight-proven

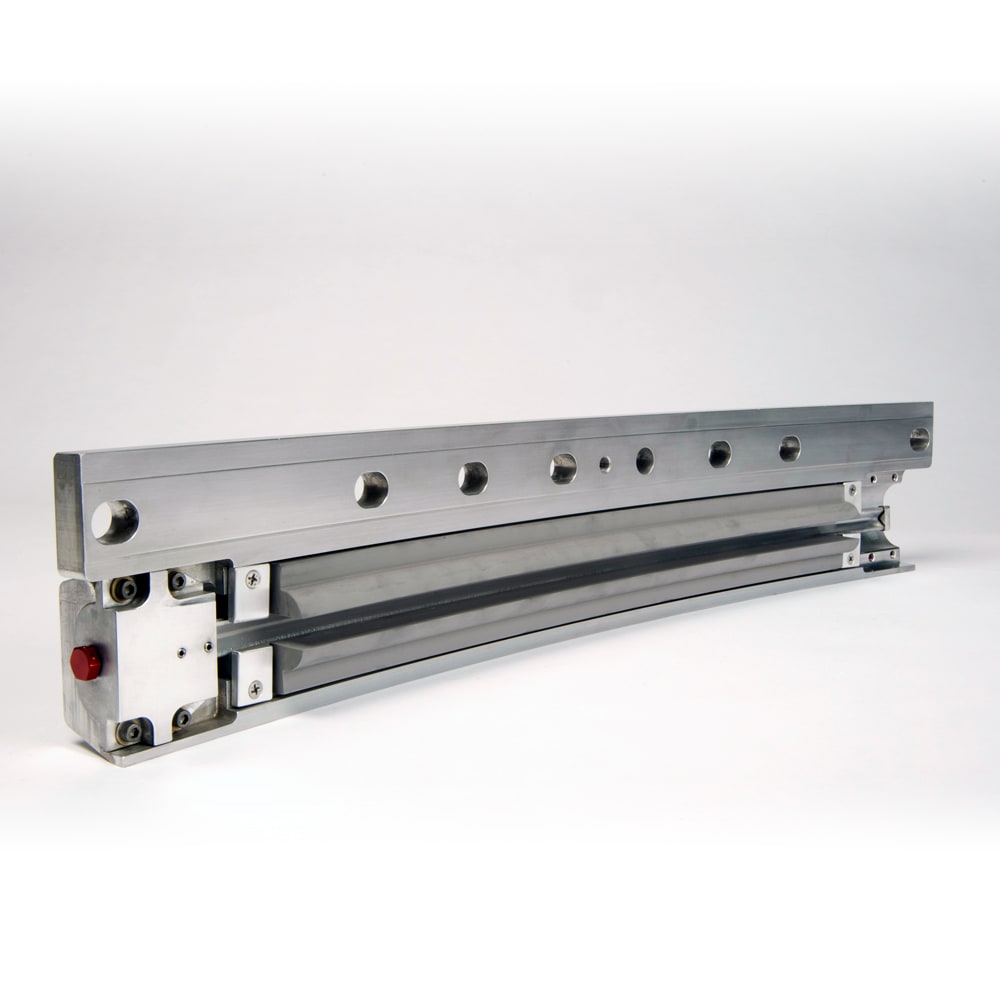

The NEA® 8" Payload Release Ring (PRR-8) is a low-shock, low-mass mechanism designed to release payloads up to 100 kg from a launch vehicle, utilizing four NEA® release mechanisms and separation springs.

1 12

Payload capability	100 kg
Shock output	<300 g’s
Release time	40 ms
Total mass	4.7 lb (2.1 kg)
Fly away mass	1.6 lb (0.7 kg)
Operating temperature	-90°C to +135°C
Maximum tip off	1° per sec
Spring energy	3.57 J
Number of springs	4 to 8
Outer diameter	10.50 in (26.70 cm)
Inner diameter	5.15 in (13.10 cm)
Height	2.44 in (6.2 cm)

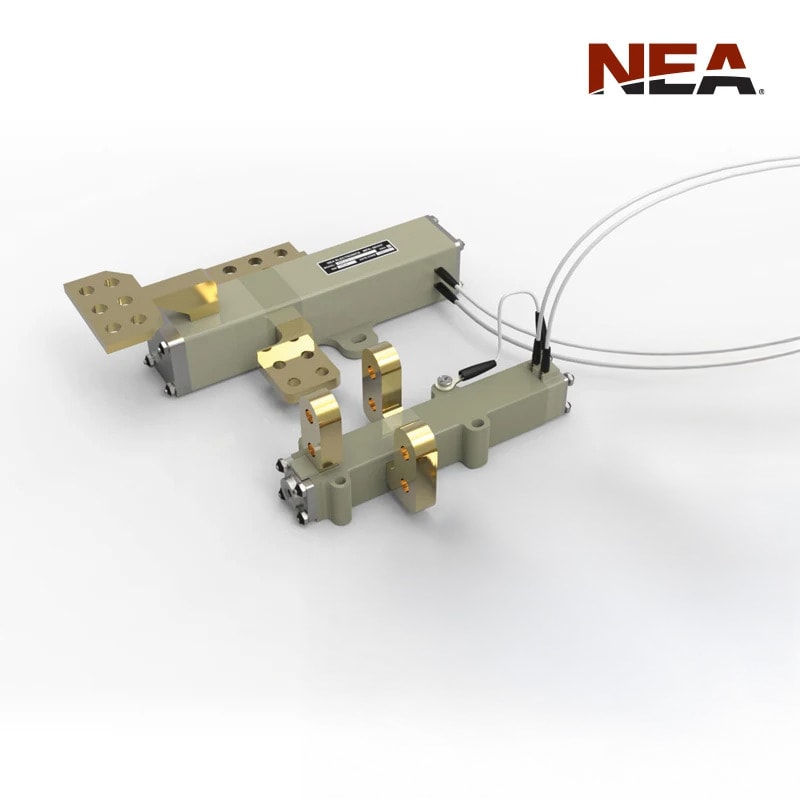

An electrically initiated, one-shot switch designed to bypass and isolate failed battery cells, featuring Make-Before-Break functionality and available in non-autonomous and autonomous configurations.

Continuous current ratings	100 A
Switch resistance	<200 μΩ @ 100 A
Fuse wire resistance	0.5 to 1.6 Ω @ 25°C
Minimum actuation current	1.2 A
Nominal actuation current	4 Amps for 25 ms
No-fire current (continuity)	250 mA
Actuation time	<50 ms
Make before break duration	<1 ms
Qualification temperature range	-55°C to +85°C
Mass	130 g (4.59 oz)

1 10

Continuous current ratings	250 A
Switch resistance	<200 μΩ @ 250 A
Fuse wire resistance	0.5 to 1.6 Ω @ 25°C
Minimum actuation current	1.2 A
Nominal actuation current	4 Amps for 25 ms
No-fire current (continuity)	250 mA
Actuation time	<50 ms
Make before break duration	<1 ms
Qualification temperature range	-55°C to +85°C
Mass	130 g (4.59 oz)

An electrically initiated, one-shot switch designed to bypass and isolate failed battery cells in battery assemblies, offering Make-Before-Break functionality.

1 9

Continuous current ratings	400 A
Switch resistance	<150 μΩ @ 400 A
Fuse wire resistance	0.95 to 1.6 Ω @ 25°C
Minimum actuation current	1.2 A
Nominal actuation current	4 Amps for 25 ms
No-fire current (continuity)	250 mA
Actuation time	<50 ms
Make before break duration	<1 ms
Qualification temperature range	-55°C to +85°C

A non-pyrotechnic pin puller for satellite applications, providing a pull force of 25 lbf (111 N) and actuated by a current of 4 Amps for 25 ms.

1 6

Pull force at end of stroke	25 lbf (111 N)
Fuse wire resistance	1.2 to 2.0 Ω @ 25°C
Actuation current	4 Amps for 25 ms
No-fire current (continuity)	250 mA
Release time	<50 ms
Qualification temperature range	-101°C to +172°C

Flight-proven

The NEA® Model 9102G is an electrically initiated, one-shot, non-pyrotechnic Hold Down & Release Mechanism capable of supporting restrained preloads up to 4,000 lbf (17,800 N) and releasing them with extremely low shock.

1 10

Proof load rating	5,000 lbf (22,200 N)
Release load rating	4,000 lbf (17,800 N)
Shock @ preload	4,000 lbf (17,800 N)
Fuse wire resistance	1.2 to 2.0 Ω @ 25°C
Actuation current	4 Amps for 25 ms
No-fire current	250 mA at 10-5 Torr @ 110°C
Release time	<50 ms
Operational temperature range	-135°C to +135°C
Maximum angular misalignment	3° Cone
Mass	130 g (0.29 lbm)

Flight-proven

The NEA® Model 9103 is an electrically initiated, one-shot non-pyrotechnic Hold Down & Release Mechanism (HDRM) capable of supporting release loads up to 7,868 lbf (35,000 N).

1 10

Proof load rating	9,217 lbf (41,000 N)
Release load rating	7,868 lbf (35,000 N)
Shock @ preload	<750 g's @ 7,868 (35,000 N)
Fuse wire resistance	1.2 to 2.0 Ω @ 25°C
Actuation current	4 Amps for 25 ms
No-fire current	250 mA at 10-5 Torr @ 110° C
Release time	<50 ms
Operational temperature range	-135°C to +135°C
Maximum angular misalignment	3° Cone
Mass	200 g (0.44 lbm)

Flight-proven

The NEA® Model 9104 is an electrically initiated, one-shot non-pyrotechnic Hold Down & Release Mechanism (HDRM) capable of supporting release loads up to 15,000 lbf (67,000 N).

1 9

Proof load rating	18,750 lbf (84,000 N)
Release load rating	15,000 lbf (67,000 N)
Shock @ preload	<750 g's @ 15,000 lbf (67,000 N)
Fuse wire resistance	1.2 to 2.0 Ω @ 25°C
Actuation current	4 Amps for 25 ms
No-fire current	250 mA at 10-5 Torr @ 110°C
Release time	<50 ms
Operational temperature range	-135°C to +135°C
Maximum angular misalignment	3° Cone

Flight-proven

The NEA® Model 9107 is an electrically initiated, one-shot hold down and release mechanism capable of carrying high tensile preload until commanded to release, offering extremely low release shock.

Proof load rating	58,500 lbf (260,000 N)
Release load rating	46,000 lbf (195,000 N)
Shock @ preload	<1,100 g's @ 46,000 lbf (195,000 N)
Fuse wire resistance	1.2 to 2.0 Ω @ 25°C
Actuation current	4 Amps for 60 ms
No-fire current	250 mA at 10-5 Torr @ 110°C
Release time	<50 ms
Operational temperature range	-135°C to +135°C
Maximum angular misalignment	2.6° Cone
Mass	2,155 g (4.75 lbm)

Flight-proven

The NEA® Model 9108 is an electrically initiated, one-shot hold down and release mechanism supporting release loads up to 72,000 lbf (320,000 N) with ultra-low shock.

1 10

Proof load rating	86,400 lbf (384,000 N)
Release load rating	72,000 lbf (320,000 N)
Shock @ preload	<1500 g peak at 76k lbf preload
Fuse wire resistance	0.75Ω to 2.0 Ω @ 25°C
Actuation current	4 Amps for 60 ms
No-fire current	250 mAmps at 10-5 Torr @ 110°C
Release time	< 200 ms
Operational temperature range	-135°C to +135°C
Maximum angular misalignment	3° Cone
Mass	3,855 g (8.5 lbm)

Flight-proven

The PRM 9103A is an ultra-low shock, electrically initiated, single-shot, and factory refurbishable release mechanism designed to carry a high tensile preload until commanded to release, ideal for multi-point satellite release.

1 11

Axial preload	Up to 15,000 lbf
Axial stiffness	9.28 E+5 lbf/in
Shear stiffness	5.98 E+6 lbf/in
Bending stiffness	2.38 E+6 in-lbf/rad
Shock output	<500 g’s
Actuation current	6 Amps for 15 ms
Release time	<50 ms
Total mass	6.5 lbm
Flyaway mass	1.8 lbm
Operating temperature	-90°C to +135°C
Total spring energy per prm (configurable)	2.82 to 20.6 Joules

Flight-proven

The PRM 9104A is an ultra-low shock, electrically initiated, single-shot, and factory refurbishable release mechanism designed to carry a high tensile preload until commanded to release, ideal for multi-point satellite release.

1 11

Axial preload	Up to 8,500 lbf
Axial stiffness	2.02 E+6 lbf/in
Shear stiffness	9.0 E+5 lbf/in
Bending stiffness	7.5 E+5 in-lbf/rad
Shock output	<300 g’s
Actuation current	6 Amps for 15 ms
Release time	<40 ms
Total mass	3.6 lbm
Flyaway mass	1.4 lbm
Operating temperature	-90°C to +135°C
Total spring energy per prm (configurable)	2.82 to 16.2 Joules

Flight-proven

Complete separation and release technology portfolio including linear shaped charges, frangible joints, separation bolts and nuts for launch vehicles and spacecraft stages.

1 5

Products	Linear shaped charges, frangible joints, separation bolts/nuts, TiNi ejectors, NEA devices
Max static load	Up to 100,000 lbf
Technologies	Pyrotechnic and non-pyrotechnic (non-energetic) options
Applications	Launch vehicle staging, satellite separation, payload deployment
Flight heritage	50+ years, invention of the Linear Shaped Charge

Flight-proven

Flight-proven separation and dispensing systems for single payloads, secondary payloads, and large satellite constellation deployment from rideshare launch vehicles.

1 5

Payload range	Small CubeSat to 40 metric ton primary payloads
Applications	Single payloads, secondary rideshare, constellation deployment
Technologies	Pyrotechnic and non-pyrotechnic separation systems
Flight record	Zero in-orbit failures across all dispensing systems
Flight heritage	60+ years serving satellite and launch vehicle markets

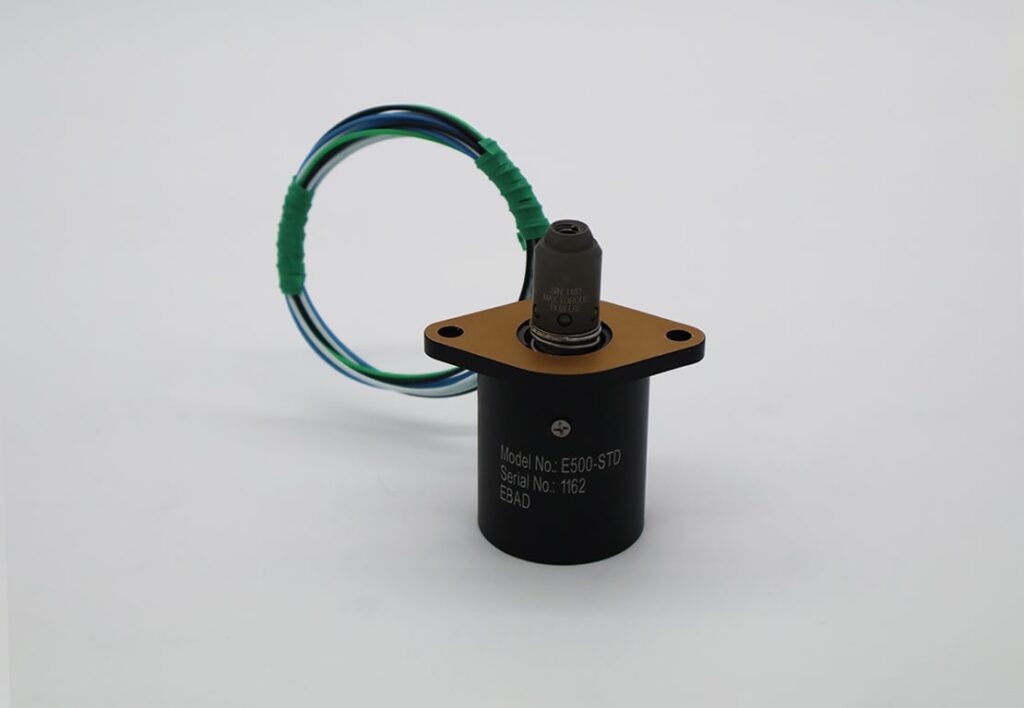

1 15

Max release load	1,000 lbf (4,448 N)
Proof load	1,400 lbf (6,230 N)
Max torque	32 in-lb
Coupler kick off-force	9.5 lbf
Max misalignment capability	+/- 5º engagement and deployment
Mass	5.6 oz (160 g)
Operating current	2.25 A to 6.5 A
Resistance	1.6±.3 Ω
Function time @ 23°c	100 ms max @ 4 A
Cycle life	50 min
Operating temperature	-65ºC + 70ºC
Height (without coupler)x	2.00 in
Height (with coupler)y	2.95 in
Max diameter (with flange)z	2.35 in
Std coupler engagement size	.190 in-32

1 13

Max release load	2,000 lbf (8,900 N)
Proof load	2,500 lbf (11,125 N)
Max torque	70 in-lb
Coupler kick off-force	8.5 lbf
Max misalignment capability	+/- 5º engagement and deployment
Mass	10.6 oz (300 g)
Resistance	2.2±.3 Ω
Cycle life	50 min
Operating temperature	-65ºC + 70ºC
Height (without coupler)x	2.65 in
Height (with coupler)y	3.93 in
Max diameter (with flange)z	3.00 in
Std coupler engagement size	.250 in-28

1 15

Max release load	250 lbf (1,112 N)
Proof load	350 lbf (1,557 N)
Max torque	92 in-oz
Coupler kick off-force	1.5 lbf
Max misalignment capability	+/- 5º engagement and deployment
Mass	2.7 oz (75 g)
Operating current	.75 to 2.5 A
Resistance	3.3±.3 Ω
Function time @ 23°c	100 ms max @ 1.25 A
Cycle life	50 min
Operating temperature	-65ºC + 70ºC
Height (without coupler)x	1.375 in
Height (with coupler)y	2.195 in
Max diameter (with flange)z	1.85 in
Std coupler engagement size	.138 in-32

1 13

Max release load	4,000 lbf (17,800 N)
Proof load	5,000 lbf (22,400 N)
Max torque	250 in-lb
Coupler kick off-force	18 lbf
Max misalignment capability	+/- 5º engagement and deployment
Mass	18.7 oz (530 g)
Resistance	2.5±.3 Ω
Cycle life	50 min
Operating temperature	-65ºC + 70ºC
Height (without coupler)x	3.3 in
Height (with coupler)y	4.8 in
Max diameter (with flange)z	3.825 in
Std coupler engagement size	.375 in-24

1 15

Max release load	500 lbf (2,224 N)
Proof load	700 lbf (3,114 N)
Max torque	14 in-lb
Coupler kick off-force	6.5 lbf
Max misalignment capability	+/- 5º engagement and deployment
Mass	3.6 oz (100 g)
Operating current	1.25 to 4 A
Resistance	2.2±.3 Ω
Function time @ 23°c	100 ms max @ 2.5 A
Cycle life	50 min
Operating temperature	-65ºC + 70ºC
Height (without coupler)x	1.625 in
Height (with coupler)y	2.475 in
Max diameter (with flange)z	2.1 in
Std coupler engagement size	.164 in-32

Mass	1.17 oz (33 g) max
Power	1.25 W @ .75 A
Operational current	.4 A to 1.5 A
Resistance	3.3±.3 Ω @ 23°C
Max release load	50 lbf (222.4 N)
Proof load	100 lbf (444.8 N)
Function time	130 mSec @ .5 A (23°C) typical
Max torque	15 in-oz (106 N mm)
Reusable	By manual reset
Life	50 cycles min
Operating temperature	-65°C to + 70°C
Non-operational pre-actuation	-150°C to + 70°C
Non-operational post-actuation	-150°C to + 150°C

The TiNi Flat Pack FP50 is a miniature, non-pyrotechnic, and field-resettable hold-down release mechanism utilizing shape memory alloy for low-load applications.

1 13

Mass	1.17 oz (33 g) max
Power	1.25 W @ .75 A
Operational current	.4 A to 1.5 A
Resistance	3.3±.3 Ω @ 23°C
Max release load	50 lbf (222.4 N)
Proof load	100 lbf (444.8 N)
Function time	130 mSec @ .5 A (23°C) typical
Max torque	15 in-oz (106 N mm)
Reusable	By manual reset
Life	50 cycles min
Operating temperature	-65°C to + 70°C
Non-operational pre-actuation temperature	-150°C to + 70°C
Non-operational post-actuation temperature	-150°C to + 150°C

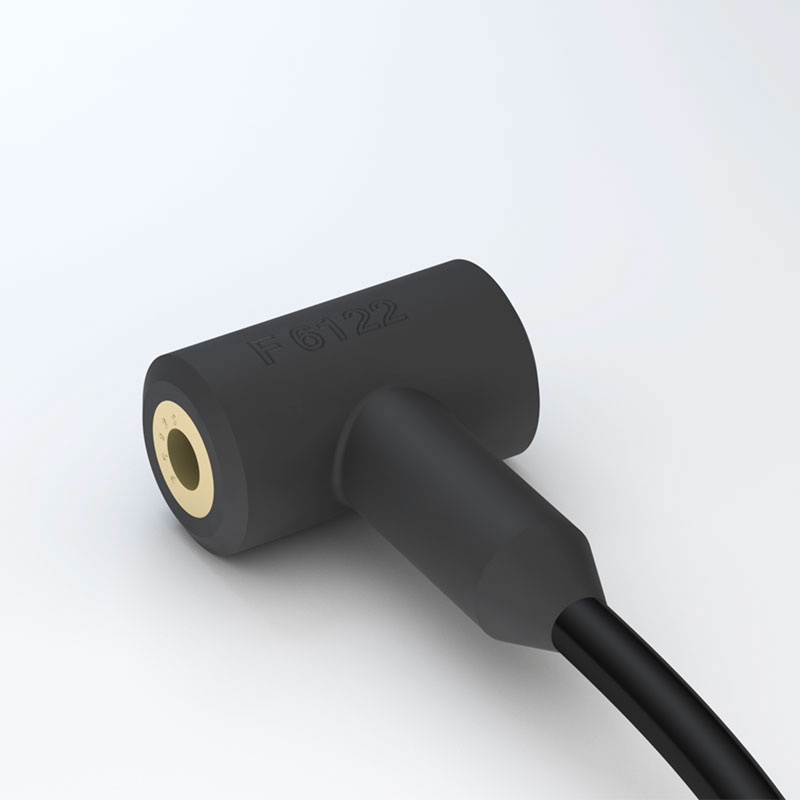

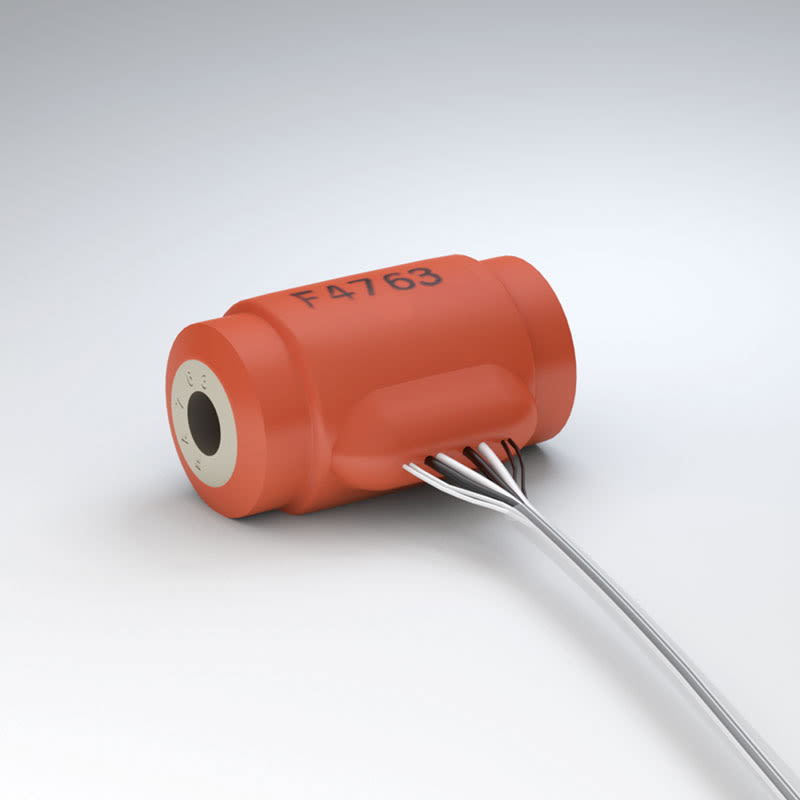

Ti fastener size	1"
Mass	350 g
Power	143 W @ 100 V
Operational voltage*	95-105 V
Current draw	1.4 A @ 100 V
Resistance	70±7 Ω
Max load support	26,200 lbf (116,543 N)
Function time	40 s @ 100 V (23ºC)
Life	60 cycles min
Operating temperature	-65ºC + 80ºC
Compressed length (X")	2.460 in
Diameter (Y")	1.975 in
Thruhole (Z")	.762 in

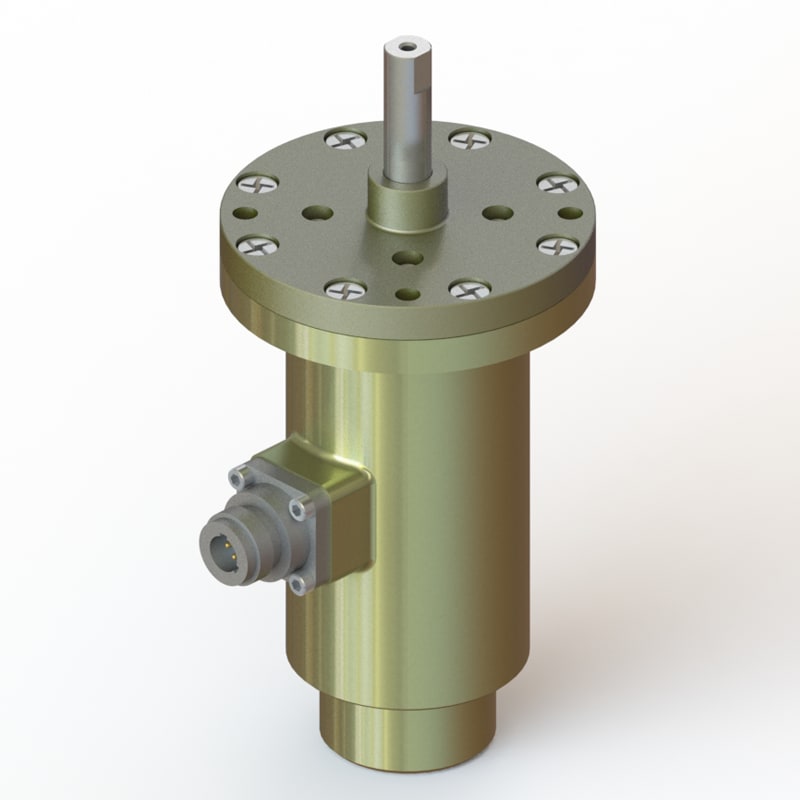

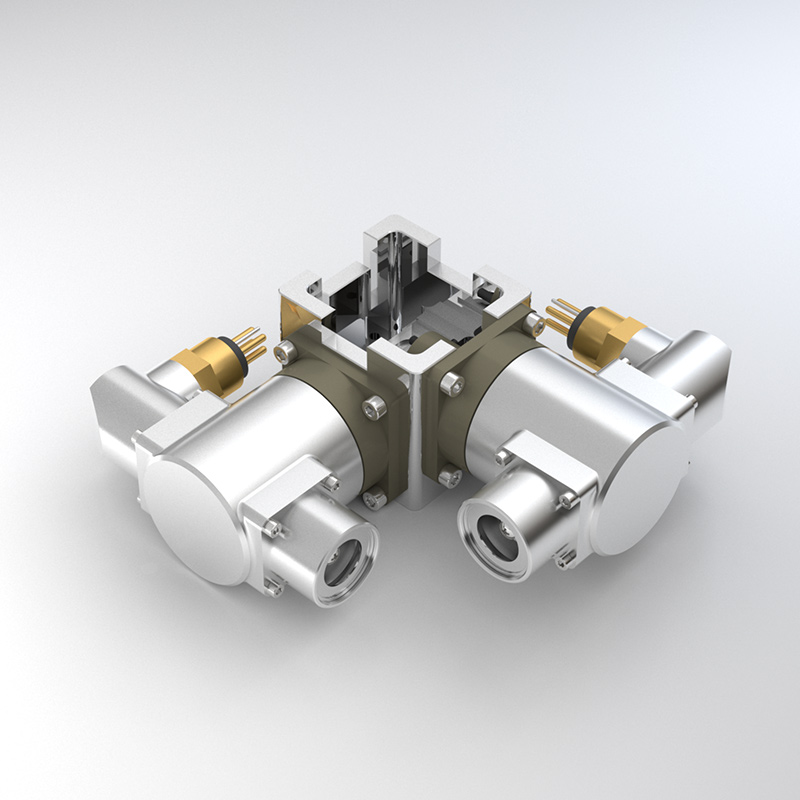

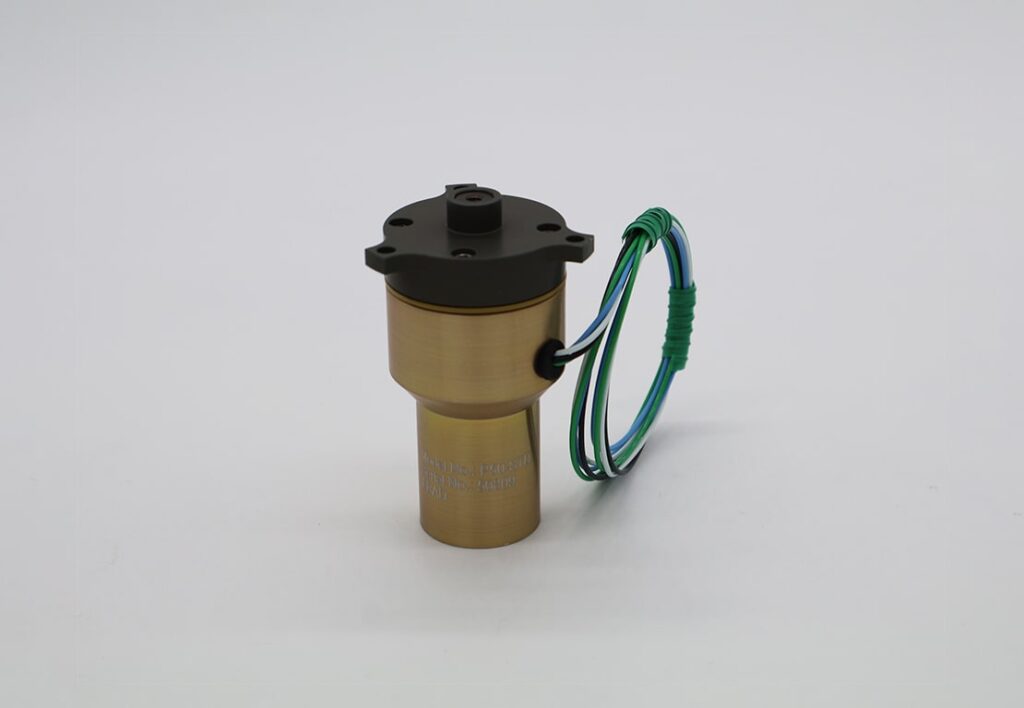

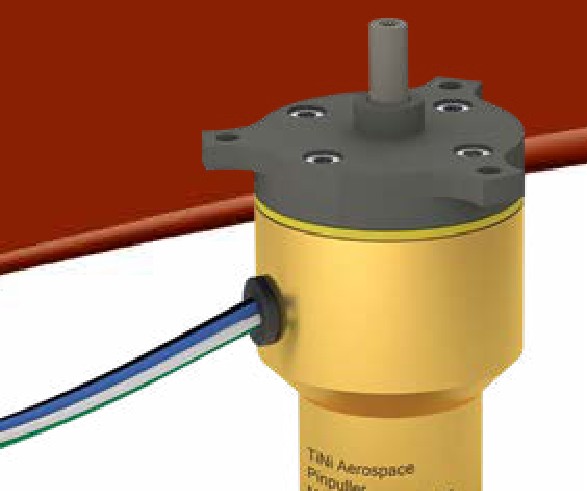

A non-pyrotechnic pin puller utilizing Shape Memory Alloy (SMA) wire, offering a 10 lbf (44 N) pull force and a minimum of 100 cycles.

1 13

A non-pyrotechnic pin puller utilizing Shape Memory Alloy (SMA) wire, offering a 100 lbf (445 N) pull force and a minimum of 50 cycles.

1 13

A non-pyrotechnic pin puller utilizing Shape Memory Alloy (SMA) wire, offering a 1,000 lbf (4,450 N) pull force and a minimum of 50 cycles.

A non-pyrotechnic pin puller utilizing Shape Memory Alloy (SMA) wire, offering a 25 lbf (111 N) pull force and a minimum of 100 cycles.

1 13

A non-pyrotechnic pin puller utilizing Shape Memory Alloy (SMA) wire, offering a 50 lbf (222 N) pull force and a minimum of 50 cycles.

1 13

1 14

1 11

Additional Services

Integration & testing

Details →

Integration of Technologies into Custom Assemblies

EBAD provides a service where their in-house engineering expertise is utilized to integrate their proprietary technologies into custom assemblies. This allows customers to gain a competitive edge by having EBAD's reliable and low-shock technologies, such as launch lock products, seamlessly…

Full details →

Engineering & analysis

Details →

EBAD offers comprehensive services in design, test, and analysis, leveraging modern engineering and technology solutions. Their team possesses extensive experience in these areas, applying a broad technical skill set and utilizing up-to-date design, test, and analysis tools. This service is…

Full details →

Other services

Details →

Custom Configurations for TiNi™ Products

EBAD provides custom configurations for their TiNi™ product line, allowing customers to tailor the products to their specific application needs. This includes modifications to the mechanical interface, voltages, resistance, modified housing designs, changes to lead wires, revisions to pressure capability,…

Full details →

Reviews

No reviews yet — reviews come from buyer accounts that have worked with this company.

Write a review

← All providers

Ti fastener size	#8
Mass	25 g
Power	25 W @ 28 V
Operational voltage*	22-36 V
Current draw	.9 A @ 28 V
Resistance	31±3 Ω
Max load support	850 lbf (3,781 N)
Function time	30 s @ 28 V (23ºC)
Life	60 cycles min
Operating temperature	-65ºC + 80ºC
Compressed length (X")	.960 in
Diameter (Y")	.625 in
Thruhole (Z")	.169 in

Ti fastener size	#10
Mass	40 g
Power	49 W @ 28 V
Operational voltage*	22-36 V
Current draw	1.75 A @ 28 V
Resistance	16±1.6 Ω
Max load support	1,400 lbf (6,227 N)
Function time	35 s @ 28 V (23ºC)
Life	60 cycles min
Operating temperature	-65ºC + 80ºC
Compressed length (X")	1.210 in
Diameter (Y")	.760 in
Thruhole (Z")	.194 in

Ti fastener size	1/4"
Mass	55 g
Power	80 W @ 28 V
Operational voltage*	22-36 V
Current draw	2.9 A @ 28 V
Resistance	9.7±1.5 Ω
Max load support	3,400 lbf (15,123 N)
Function time	35 s @ 28 V (23ºC)
Life	60 cycles min
Operating temperature	-65ºC + 80ºC
Compressed length (X")	1.450 in
Diameter (Y")	.950 in
Thruhole (Z")	.257 in

Ti fastener size	3/8"
Mass	110 g
Power	111 W @ 100 V
Operational voltage*	95-105 V
Current draw	1.1 A @ 100 V
Resistance	90±9 Ω
Max load support	6,000 lbf (26,689 N)
Function time	25 s @ 28 V (23ºC)
Life	60 cycles min
Operating temperature	-65ºC + 80ºC
Compressed length (X")	1.940 in
Diameter (Y")	1.225 in
Thruhole (Z")	.381 in

Ti fastener size	1/2"
Mass	175 g
Power	112 W @ 28 V
Operational voltage*	22-36 V
Current draw	4 A @ 28 V
Resistance	7±1 Ω
Max load support	9,600 lbf (42,702 N)
Function time	60 s @ 28 V (23ºC)
Life	60 cycles min
Operating temperature	-65ºC + 80ºC
Compressed length (X")	2.120 in
Diameter (Y")	1.400 in
Thruhole (Z")	.520 in

Ti fastener size	#4
Mass	10 g
Power	9 W @ 7 V
Operational voltage	6-8 V
Current draw	1.25 A @ 7 V
Resistance	5.5±.5 Ω
Max load support	150 lbf (667 N)
Function time	30 s @ 7 V (23°C)
Life	20 cycles min
Operating temperature	-50°C + 70°C
Compressed length (X")	.500 in
Diameter (Y")	.450 in
Thruhole (Z")	.116 in

Pull force	10 lbf (44 N)
Side load (actuation)	10 lbf (44.5 N)
Side load (non-actuation)	100 lbf (444.8 N)
Mass	1.06 oz (30 g)
Operating current	.4 to 1.5 A
Resistance	7.7±.5 Ω
Function time @ 23ºc	100 ms max @ 1 A
Cycle life	100 min
Operating temperature	-65ºC + 70ºC
Height (before pin retraction) x	1.625 in
Height (after pin retraction)y	1.375 in
Max diameter (with flange)z	1.25 in
Front/rear resettable	Yes

Pull force	1,000 lbf (4,450 N)
Side load (actuation)	200 lbf (890 N)
Side load (non-actuation)	600 lbf (2,670 N)
Mass	12.7 oz (360 g)
Operating current	2.25 A to 6.5 A
Resistance	3.1±.3 Ω
Function time @ 23ºc	75 ms max @ 4 A
Cycle life	50 min
Operating temperature	-60ºC + 70ºC
Height (before pin retraction) x	4.255 in
Height (after pin retraction)y	3.635 in
Max diameter (with flange)z	2.55 in
Front/rear resettable	Front Std; Rear Optional with growth in device

Pull force	5 lbf (22 N)
Side load (actuation)	7 lbf (31.1 N)
Side load (non-actuation)	20 lbf (8.9 N)
Mass	.73 oz (18 g)
Operating current	.5 to 2 A
Resistance	5.2±.5 Ω
Function time @ 23ºc	130 ms max @ .5 A
Cycle life	100 min
Operating temperature	-65ºC + 70ºC
Height (before pin retraction) x	1.25 in
Height (after pin retraction)y	1.00 in
Max diameter (with flange)z	1.25 in
Front/rear resettable	Yes

Ensign-Bickford Aerospace & Defense (EBAD)

About Ensign-Bickford Aerospace & Defense (EBAD)

Products

EBAD NEA® Model 2545 Pin Puller

EBAD NEA® Model 2545 Pin Puller

Description

Specifications

EBAD NEA1120-05 Pin Puller

EBAD NEA1120-05 Pin Puller

Description

Specifications

EBAD TiNi frangibolt

EBAD TiNi frangibolt

Description

Specifications

EBAD TiNi Micro Latch

EBAD TiNi Micro Latch

Description

EBAD TiNi Microlatch ML50-1 Separation System

EBAD TiNi Microlatch ML50-1 Separation System

Description

Specifications

EBAD TiNi Microlatch ML50-2 Separation System

EBAD TiNi Microlatch ML50-2 Separation System

Description

Specifications

EBAD TiNi™ ejector

EBAD TiNi™ ejector

Description

Specifications

EBAD TiNi™ Pin Puller

EBAD TiNi™ Pin Puller

Description

Specifications

Flight Termination Systems

Flight Termination Systems

Description

Specifications

IFD100 Plug Connector

IFD100 Plug Connector

Description

Specifications

IFD200 Receptacle Connector

IFD200 Receptacle Connector

Description

Specifications

NEA 1120-05 Pin Puller

NEA 1120-05 Pin Puller

Description

Specifications

NEA Hold Down Release Mechanisms

NEA Hold Down Release Mechanisms

Description

Specifications

NEA IFD100 Plug In-Flight Disconnect Connector

NEA IFD100 Plug In-Flight Disconnect Connector

Description

Specifications

NEA IFD100 Plug In-Flight Disconnect Connector (Shell Size 25)

NEA IFD100 Plug In-Flight Disconnect Connector (Shell Size 25)

Description

Specifications

NEA IFD200 Receptacle In-Flight Disconnect Connector

NEA IFD200 Receptacle In-Flight Disconnect Connector

Description

Specifications

NEA IFD200 Receptacle In-Flight Disconnect Connector (Shell Size 25)

NEA IFD200 Receptacle In-Flight Disconnect Connector (Shell Size 25)

Description

Specifications

NEA Model 9040 Miniature Hold Down & Release Mechanism (HDRM)

NEA Model 9040 Miniature Hold Down & Release Mechanism (HDRM)

Description

Specifications

NEA Model 9100 Hold Down & Release Mechanism

NEA Model 9100 Hold Down & Release Mechanism

Description

Specifications

NEA Model 9106B Hold Down & Release Mechanism (HDRM)

NEA Model 9106B Hold Down & Release Mechanism (HDRM)
