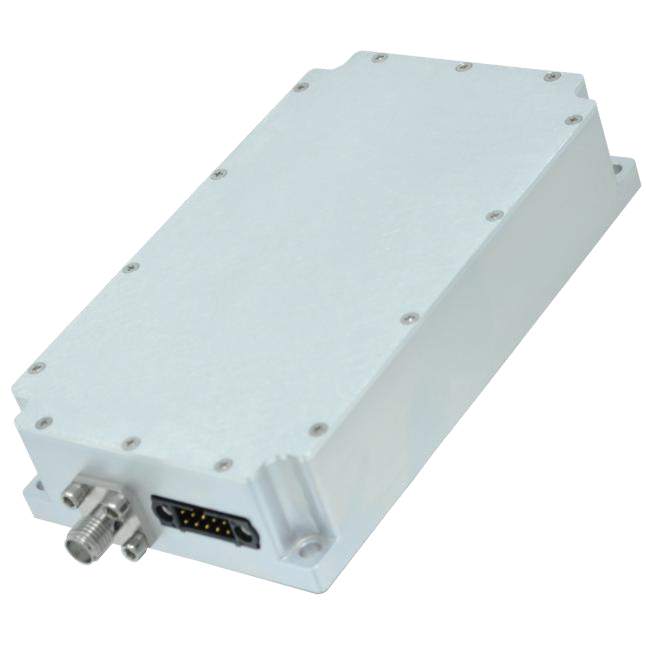

TA1056 SISO Power Amplifier
Triad RF Systems
The TA1056 is a Class AB GaN power amplifier module operating from 20 to 1000 MHz, designed for both military and commercial applications with a saturated RF output power of +46 dBm.
Typed specifications18 values
Discloses 2 of 8 fields engineers filter by in this category (category median 2).
- Mass
- 198 g datasheet p.2
- Frequency range
- 20 MHz min · datasheet p.2 1 000 MHz max
- Envelope (L×W×H)
- 101.3 x 58.4 x 21.6 mm datasheet p.2
- TX RF output power
- 5.01 W 64QAM Power Output, 20 MHz BW, -27 dB EVM Limit · datasheet p.2 25.12 W BPSK Power Output, 20 MHz BW, -7 dB EVM Limit | 39.81 W Saturated Power Output CW Sweep at Design Limit
- Modulation
- any signal type and modulation format datasheet p.1 other any signal type and modulation format (transparent amplifier)
- Supply voltage
- 27 V min · datasheet p.2 30 V max
- Data interface
- other Temperature Monitor Output · datasheet p.1
- Operating temperature
- -40 °C min · datasheet p.3 85 °C max
- Connector
- M80-5401042 Power / Signal Connector · datasheet p.3 SMA-F / SMA-F RF Connectors (Input / Output)
- Survival temperature
- -55 °C min · datasheet p.3 85 °C max
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier8 lines, in the manufacturer's own wording
- Model
- TA1056
- Frequency low
- 20 MHz
- Frequency high
- 1000 MHz
- P1db dbm
- 44 (Typ)
- Tx gain
- 50 dB
- Supply voltage
- 27-30 Vdc
- Psat
- 46 (Typ)
- Dimensions
- 3.99 x 2.3 x 0.85 in
About
The TA1056 SISO Power Amplifier is a Class AB Gallium Nitride (GaN) module that operates across a wide frequency range of 20 to 1000 MHz. This amplifier is engineered for versatility, suitable for both military and commercial applications, and is capable of supporting any signal type. It features an input voltage range of +27 to +30 VDC and delivers a saturated RF output power of +46 dBm. The product page also mentions the TA1120, a small form factor, lightweight circuit card amplifier designed for integration into existing CubeSat and NanoSat satellite systems, indicating the manufacturer’s engagement with the space industry.
