Murgas
Spacemanic s.r.o.

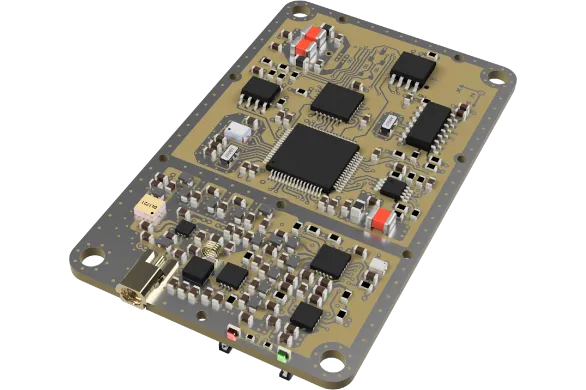

Murgas is a compact UHF/VHF transceiver module designed for CubeSats and small satellites, offering reliable communication for various space applications.
Typed specifications95 values
Discloses 10 of 13 fields engineers filter by in this category (category median 3).
- Frequency band
- UHF Amateur UHF 430-440 MHz / Commercial UHF 400-402 MHz configur… · datasheet p.4 UHF amateur UHF 430-440MHz | UHF amateur UHF band | VHF Amateur VHF 144-146 MHz configuration | VHF amateur VHF 144-146MHz +3
- Mass
- 25 g datasheet p.4
- Frequency range
- 430 MHz min · amateur UHF · datasheet p.4 418 MHz min · amateur UHF band RX | 144 MHz min · amateur VHF | 130 MHz min · amateur VHF band RX | 400 MHz min · commercial UHF +13
- Envelope (L×W×H)
- 67x42x7.5 mm datasheet p.4
- TX RF output power
- 1 W nom. · TX output power, typ., continuously regulated · datasheet p.7 1 W min · amateur UHF band | 1 W min · amateur VHF band | 1 W min · commercial UHF band | 0.001 W min · TX output power, continuously regulated +4
- Data rate
- 0.1 kbps min · TX data rate 0.1 to 38.4 kbps · datasheet p.4 38.4 kbps max · TX data rate 0.1 to 38.4 kbps | 0.1–38.4 kbps
- RX sensitivity
- -100 dBm nom. · amateur UHF band, 9600 bps, GFSK, BT = 0.5, BER < 0.1% · datasheet p.7 -100 dBm 9600 bps, GFSK, BT = 0.5 | -100 dBm nom. · amateur VHF band, 9600 bps, GFSK, BT = 0.5, BER < 0.1% | -100 dBm nom. · commercial UHF band, 9600 bps, GFSK, BT = 0.5, BER < 0.1% | -100 dBm 9600 bps, GFSK, BT = 0.5 +1
- Modulation
- GFSK/GMSK datasheet p.4 GMSK
- Supply voltage
- 3.3 V nom. · power supply · datasheet p.4 3.3 V | 5 V for CAN | 5 V nom. · power supply for CAN
- Power consumption
- 0.14 W receiving · datasheet p.4 3.3 W transmitting
- Data interface
- I2C datasheet p.5 GPIO 4x, 3.3 V level, available through CLI | CAN CSP over CAN, up to 1 Mbit/s | I2C CSP over I2C, speed up to 400 kHz | RS-485 CSP over RS485 KISS, up to 38400 Bd +4
- Operating temperature
- -40 °C product page -40–85 °C operating temperature
- Function
- transceiver half-duplex transceiver module (TRX) · datasheet p.4
- Link protocol
- CSP CSP v1 over RS485, CAN and I2C · datasheet p.8 HDLC data formats HDLC, AX.25 | CSP over CAN | CSP over I2C bus | CSP over RS485 KISS +1
- RF connector
- MMCX antenna MMCX, 50 Ohm; Molex MMCX 73415-1000 · datasheet p.5
- Power draw, receive
- 0.14 W power consumption - receiving · datasheet p.4
- Power draw, transmit
- 3.3 W power consumption - transmitting · datasheet p.4
- Connector
- MMCX, 50 Ω datasheet p.5 Molex SlimStack 55650-0688 (on module) | Molex PicoLock 503763-0691 (on module) | Molex MMCX 73415-1000 (on module)
- Flight heritage
- multiple missions (e.g. LASARsat, CroCube, GRBBeta and external customers) datasheet p.4
- Satellite class
- nanosat 1-10 kg module for nanosatellite communication · datasheet p.4
- Missions flown
- multiple datasheet p.4
- Duplex
- half datasheet p.4
- Channel bandwidth
- 58 kHz amateur UHF band · datasheet p.7 58 kHz amateur VHF band | 58 kHz commercial UHF band | 1 kHz min · RX channel bandwidth | 58 kHz max · RX channel bandwidth
- RF gain
- 17 dB nom. · RX gain, amateur UHF band · datasheet p.7 18 dB nom. · RX gain, amateur VHF band | 16.5 dB nom. · RX gain, commercial UHF band
- Noise figure
- 1.85 dB nom. · RX NF, amateur UHF band · datasheet p.7 2 dB max · RX NF, all bands | 1.95 dB nom. · RX NF, amateur VHF band | 1.9 dB nom. · RX NF, commercial UHF band
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier21 lines, in the manufacturer's own wording
- Operating temperature
- -40°C to +85°C
- Dimensions
- 67 x 42 x 7.5 mm
- Mass
- 25 g
- Power supply
- 3.3 V
- Power supply (for CAN)
- 5 V
- Power consumption (receiving)
- 0.14 W
- Power consumption (transmitting)
- 3.3 W
- Tx data rate
- 0.1 to 38.4 kbps
- Modulation
- GFSK / GMSK
- Data formats
- HDLC, AX.25
- Framing
- NRZI
- Scrambling
- G3RUH scrambling
- Configuration options
- VHF 144-146 MHz Radioamateur Band
- Configuration options (2)
- UHF 430-440 MHz Radioamateur Band
- Configuration options (3)
- UHF 400-402 MHz Commercial Band
- Interfaces (CSP v1)
- I2C
- Interfaces (CSP v1) (2)
- RS485
- Interfaces (CSP v1) (3)
- CAN
- Interfaces (CSP v1) (4)
- UART (Plain text CLI)
- Flight heritage
- Yes
- ITAR
- Free
About
Murgas is a UHF/VHF transceiver module specifically developed for CubeSats and small satellites. It provides robust communication capabilities, supporting both amateur radio bands (VHF 144-146 MHz, UHF 430-440 MHz) and a commercial band (UHF 400-402 MHz). The module features GFSK/GMSK modulation, HDLC and AX.25 data formats, and NRZI framing with G3RUH scrambling. It offers a TX data rate from 0.1 to 38.4 kbps. The module is designed for a wide operating temperature range of -40°C to +85°C and has a compact form factor, making it suitable for space-constrained applications. It includes an aluminium cover and comes with a USS Module for testing and development, a debug cable, an Interface Control Document, and 1 hour of engineering support. The product is ITAR-free, simplifying export and integration for international projects. Its interfaces include I2C, RS485, CAN, and UART (Plain text CLI), with CSP v1 support. The power consumption is 0.14 W during receiving and 3.3 W during transmitting.
