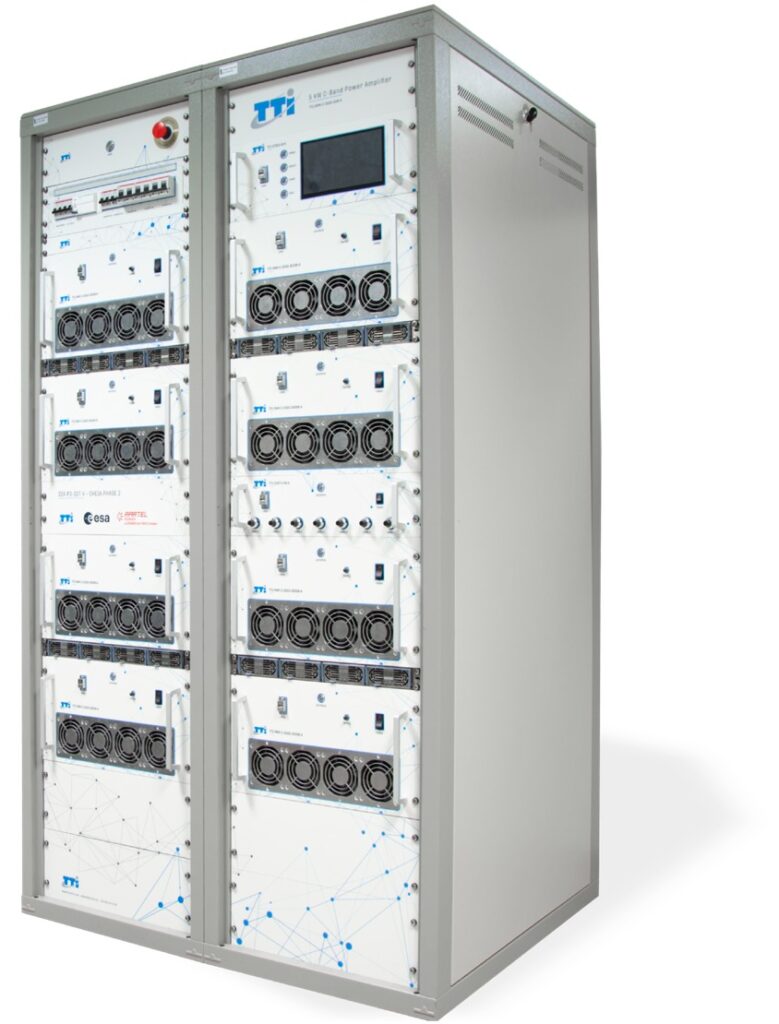

HIGH POWER GaN C SSPA 1.5kW PHASED COMBINED – Outdoor/Indoor
TTI Norte
A high-power GaN C-band SSPA with 1.5 kW output, available in outdoor or indoor configurations, featuring automatic control modes and various interfaces.
Typed specifications21 values
Discloses 4 of 8 fields engineers filter by in this category (category median 2).
- Frequency band
- C datasheet p.2
- Frequency range
- 5 850–6 425 MHz datasheet p.2
- Envelope (L×W×H)
- 19” rack cabinet 44 U (H), 1 m (D) Indoor · datasheet p.2 1200 x 1200 x 1000 mm Outdoor
- TX RF output power
- 1 318.26 W Output power (PSAT (typical)) · datasheet p.2 794.33 W Linear output power (PLINEAR*)
- Supply voltage
- 90–264 V datasheet p.2
- Power consumption
- 4 600 W max · @ PSAT · datasheet p.2 4 600 W max · PSAT
- Data interface
- RS-485 datasheet p.2 USB M&C capability | Ethernet
- Operating temperature
- 0–50 °C indoor · datasheet p.2 -30–55 °C outdoor
- Connector
- Ethernet M&C · datasheet p.2 15-pin D-Sub M&C (indoor) | 19-pin MIL circular M&C (outdoor) | N (f) RF input | CPR-137 Groveed RF output +1
- Survival temperature
- -40–85 °C datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier16 lines, in the manufacturer's own wording
- Output power (psat (typical))
- 1.5 kW (61.2 dBm)
- Linear output power (PLINEAR*)
- 1.5 kW (60.8 dBm)
- Supply voltage
- 90-264 VAC, 50-60 Hz
- Power consumption @ psat
- <5 kW
- Operating frequency range
- 5.85 - 6.425 GHz
- Gain
- >70 dB
- Gain flatness
- <3 dB p-p over full band; <1 dB p-p over any 40 MHz
- Attenuation adjustment range
- 20 dB in 0.25 dB step
- Input vswr
- ≤1.5:1
- Output vswr
- ≤1.3:1
- Outdoor dimensions (L x W x H)
- 1370 x 1070 x 1000 mm
- Indoor dimensions
- 19” Rack cabinet 44 U (H), 1 m (D)
- Operating temperature (Outdoor)
- -30 ºC to +55 ºC
- Operating temperature (Indoor)
- 0 ºC to +50 ºC
- Storage temperature
- -40 ºC to +85 ºC
- Humidity (Outdoor)
- 100 % condensing
About
This high-power GaN C-band SSPA offers 1.5 kW output power and is available for both outdoor and indoor installations. It features automatic control modes (AGC, ALC), a pressure window, and an output RF calibrated sample port. The power supply operates on 90-264 VAC, 50-60 Hz, with a power consumption of less than 5 kW at PSAT. Outdoor dimensions are 1370 x 1070 x 1000 mm, while the indoor version is a 19” Rack cabinet 44 U (H), 1 m (D). Interfaces include N (f) for RF input, CPR-137 Groveed for RF output, SMA for RF sample, and Ethernet or 19-pin MIL circular (outdoor) / 15-pin D-Sub (indoor) for M&C. It operates in an outdoor temperature range of -30 ºC to +55 ºC and indoor from 0 ºC to +50 ºC. Remote control is available via RS-485, Ethernet, Dry-Contacts, or web user interfaces, with monitoring of forward/reverse output power, input power, individual SSPAs output power, temperature, and summary alarms. Internal self-protection includes temperature (>85 ºC), reflected power, and high input-output power. The operating frequency range is 5.85 – 6.425 GHz, with a typical PSAT output power of 61.2 dBm and linear output power of 60.8 dBm. Gain is >70 dB, with gain flatness <3 dB p-p over full band and <1 dB p-p over any 40 MHz. Attenuation adjustment range is 20 dB in 0.25 dB steps. Input VSWR is ≤1.5:1 and output VSWR is ≤1.3:1.
