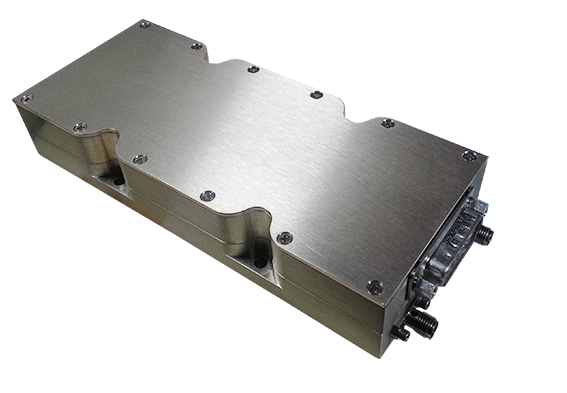

TA1165 5500-8500 MHz 20 W Power Amplifier
Triad RF Systems
The TA1165 is a class AB GaN power amplifier module designed for Low Earth Orbit satellite applications, supporting various signal types and modulation formats.
Typed specifications17 values
Discloses 3 of 8 fields engineers filter by in this category (category median 2).
- Frequency band
- C Tx · datasheet p.2
- Mass
- 482 g datasheet p.2
- Frequency range
- 5 500 MHz min · Operating · datasheet p.2 8 500 MHz max · Operating
- Envelope (L×W×H)
- 152.4 x 63.5 x 27.9 datasheet p.2
- TX RF output power
- 2 W 64QAM Power Output, 20 MHz BW, -27 dB EVM Limit · datasheet p.2 5.01 W BPSK Power Output, 20 MHz BW, -7 dB EVM Limit | 19.95 W Saturated Power Output, CW Sweep at Design Limit
- Supply voltage
- 12 V min · datasheet p.2 30 V max
- Operating temperature
- -40 °C min · datasheet p.3 85 °C max
- Connector
- DA7W2PA00LF Power / Signal Connector · datasheet p.3 SMA-F / SMA-F RF Input / Output
- Survival temperature
- -55 °C min · datasheet p.3 85 °C max
- Flight heritage
- extensive flight heritage datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier9 lines, in the manufacturer's own wording
- Model
- TA1165
- Frequency low
- 5500 MHz
- Frequency high
- 8500 MHz
- P1db dbm (Typ)
- 43
- Tx gain
- 52.5 dB
- Supply voltage
- 28 Vdc
- Psat (Typ)
- 4.5
- Dimensions
- 6 x 2.5 x 1.06 in
- Flight heritage
- Extensive flight heritage in low earth orbit
About
The TA1165 is a class AB Gallium Nitride (GaN) power amplifier module specifically designed and proven for reliable operation in Low Earth Orbit (LEO) satellite applications. This unit is capable of supporting any signal type and modulation format, including but not limited to DVB, DVB-DSNG, and DVB-S2. It is characterized by its efficiency, linearity, and lightweight design. The TA1165 has extensive flight heritage in low earth orbit, demonstrating its reliability and performance in space environments. While the product page also mentions the TA1120 as a small form factor, lightweight circuit card amplifier designed for CubeSat and NanoSat integration, the primary product described and specified is the TA1165.
