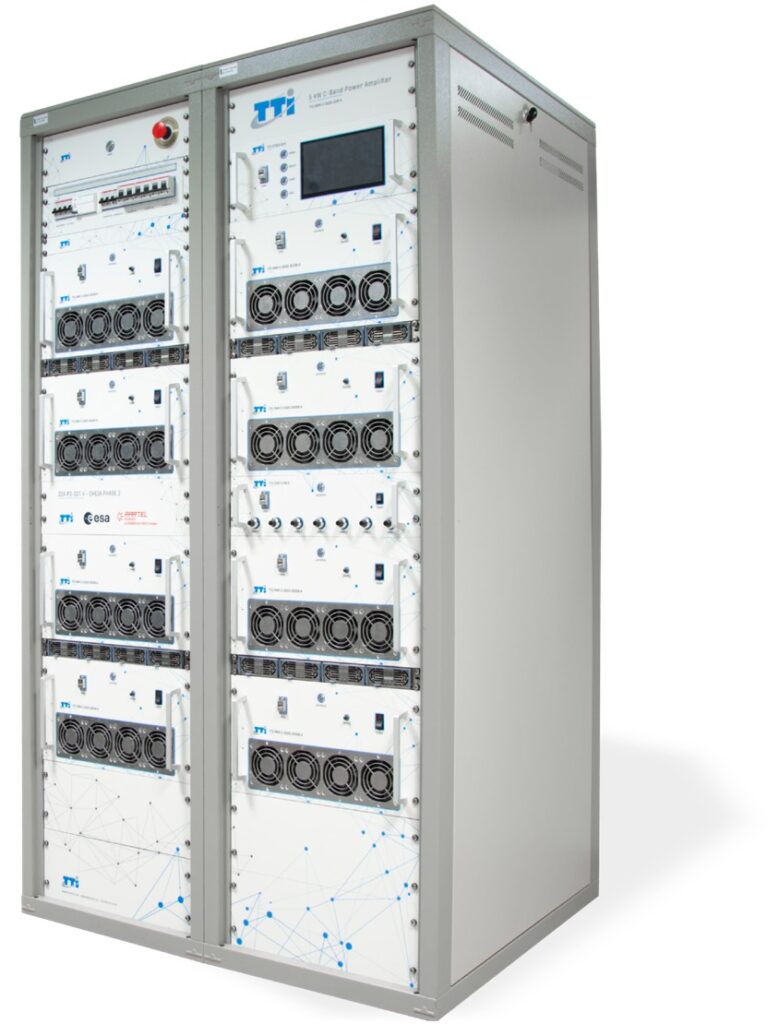

HIGH POWER GaN C SSPA 2.7kW PHASED COMBINED – Outdoor/Indoor
TTI Norte
A high-power GaN C-band SSPA with 2.7 kW output, available in outdoor or indoor configurations, featuring automatic control modes and various interfaces.
Typed specifications31 values
Discloses 4 of 8 fields engineers filter by in this category (category median 2).
- Frequency band
- C datasheet p.2
- Frequency range
- 5 850 MHz min · datasheet p.2 6 425 MHz max
- Envelope (L×W×H)
- 19” rack cabinet 44 U (H), 1 m (D) Qty x1 Indoor (2.7 kW) · datasheet p.2 1200 x 1200 x 2000 mm Outdoor (2.7 kW)
- TX RF output power
- 2 691.54 W PSAT (typical) 2.7 kW · datasheet p.2 2 137.96 W PLINEAR* 2.7 kW
- Modulation
- DVB-S, 4Mbaud, Roll-off: 0.25, ModCod QPSK-3/4 For single carrier · datasheet p.2
- Supply voltage
- 90 V min · datasheet p.2 264 V max
- Power consumption
- 2.7 W product page 10 W max | 2.7 W
- Data interface
- RS-485 datasheet p.2 other Dry-Contacts | other Web user interfaces | USB | Ethernet
- Operating temperature
- 0 °C min · indoor · datasheet p.2 -30 °C min · outdoor | 50 °C max · indoor | 55 °C max · outdoor
- Connector
- Ethernet M&C indoor · datasheet p.2 Ethernet M&C outdoor | N (f) RF input | CPR-137 Groveed RF output | SMA RF sample +2
- Survival temperature
- -40 °C min · datasheet p.2 85 °C max
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier16 lines, in the manufacturer's own wording
- Output power (psat (typical))
- 2.7 kW (64.3 dBm)
- Linear output power (PLINEAR*)
- 2.7 kW (63.3 dBm)
- Supply voltage
- 90-264 VAC, 50-60 Hz
- Power consumption @ psat
- <10 kW
- Operating frequency range
- 5.85 - 6.425 GHz
- Gain
- >70 dB
- Gain flatness
- <3 dB p-p over full band; <1 dB p-p over any 40 MHz
- Attenuation adjustment range
- 20 dB in 0.25 dB step
- Input vswr
- ≤1.5:1
- Output vswr
- ≤1.3:1
- Outdoor dimensions (L x W x H)
- 1370 x 1070 x 1000 mm
- Indoor dimensions
- 19” Rack cabinet 44 U (H), 1 m (D)
- Operating temperature (Outdoor)
- -30 ºC to +55 ºC
- Operating temperature (Indoor)
- 0 ºC to +50 ºC
- Storage temperature
- -40 ºC to +85 ºC
- Humidity (Outdoor)
- 100 % condensing
About
This high-power GaN C-band SSPA offers 2.7 kW output power and is available for both outdoor and indoor installations. It features automatic control modes (AGC, ALC), a pressure window, and an output RF calibrated sample port. The power supply operates on 90-264 VAC, 50-60 Hz, with a power consumption of less than 10 kW at PSAT. Outdoor dimensions are 1370 x 1070 x 1000 mm, while the indoor version is a 19” Rack cabinet 44 U (H), 1 m (D). Interfaces include N (f) for RF input, CPR-137 Groveed for RF output, SMA for RF sample, and Ethernet or 19-pin MIL circular (outdoor) / 15-pin D-Sub (indoor) for M&C. It operates in an outdoor temperature range of -30 ºC to +55 ºC and indoor from 0 ºC to +50 ºC. Remote control is available via RS-485, Ethernet, Dry-Contacts, or web user interfaces, with monitoring of forward/reverse output power, input power, individual SSPAs output power, temperature, and summary alarms. Internal self-protection includes temperature (>85 ºC), reflected power, and high input-output power. The operating frequency range is 5.85 – 6.425 GHz, with a typical PSAT output power of 64.3 dBm and linear output power of 63.3 dBm. Gain is >70 dB, with gain flatness <3 dB p-p over full band and <1 dB p-p over any 40 MHz. Attenuation adjustment range is 20 dB in 0.25 dB steps. Input VSWR is ≤1.5:1 and output VSWR is ≤1.3:1.
