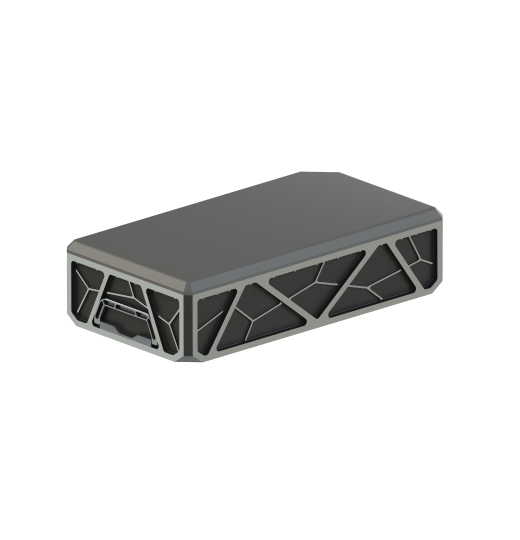

SWISSto12 Horn Arrays are 3D printed, monolithic, high-gain waveguide-based horn arrays designed for mechanically steered systems, offering lightweight and high RF performance.
Typed specifications9 values
Discloses 2 of 10 fields engineers filter by in this category (category median 3).
- Peak gain
- 5 dBi min · product page 12.5 dBi max | 1.5 dBi min | 10 dBi max | 1 dBi min +1
- Mass
- 5 000 g max · product page 1 500 g max | 1 000 g max
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier12 lines, in the manufacturer's own wording
- Gain (Ka High Gain)
- 36 dBi @ 20 GHz & 39.5 dBi @ 30 GHz
- G/T (Ka High Gain)
- > 12.5 dB/k
- Mass (Ka High Gain)
- < 5 kg
- Gain (Ka Medium Gain)
- 33 dBi @ 20 GHz & 36.5 dBi @ 30 GHz
- G/T (Ka Medium Gain)
- > 10 dB/k
- Mass (Ka Medium Gain)
- < 1.5 kg
- Gain (Ka Low Gain)
- 30 dBi @ 20 GHz & 33.5 dBi @ 30 GHz
- G/T (Ka Low Gain)
- > 8 dB/k
- Mass (Ka Low Gain)
- < 1 kg
- Bands
- X, Ku, Ka band
- RF Performance
- 2 to 3 dB higher gain
- Polarization
- 4 port (RHCP & LHCP)
About
SWISSto12 Horn Arrays are 3D printed, monolithic, high-gain (typically 30 to 40 dBi) waveguide-based horn arrays specifically designed for mechanically steered systems. These arrays are characterized by their lightest-weight construction and offer superior RF performance, typically 2 to 3 dB higher gain compared to other solutions. They are available in X, Ku, and Ka bands, utilizing a modular approach that facilitates batch production. Customers can benefit from custom shapes and interfaces, ensuring FCC compliance and high repeatability. Examples include Ka High Gain (16×64 or 32×32 elements) with gains up to 39.5 dBi and G/T > 12.5 dB/k, Ka Medium Gain (16×32 elements) with gains up to 36.5 dBi and G/T > 10 dB/k, and Ka Low Gain (16×16 elements) with gains up to 33.5 dBi and G/T > 8 dB/k. X-band options are also available, such as X High Gain (8×24 elements) with gains up to 31.3 dBi and G/T > 8 dB/k, and X Medium Gain (8×12 elements) with gains up to 28.3 dBi and G/T > 7 dB/k. All examples feature 4-port (RHCP & LHCP) configurations.
