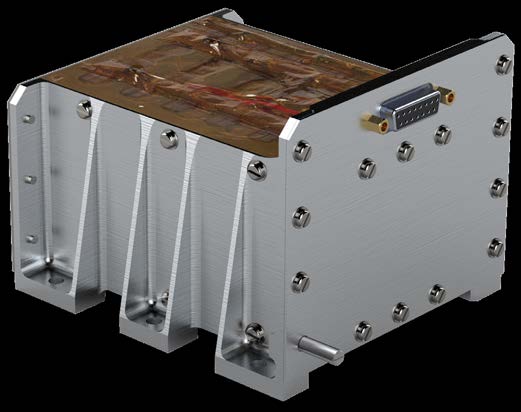

ABSL CM170 4s6p Li-ion Space Battery (14 V, 12 Ah)
EnerSys / ABSL Space Products
Compact 178 Wh Li-ion space battery in 4s6p topology for a 14 V bus, 1.6 kg, suited to SmallSat missions.
Typed specifications31 values
Discloses 5 of 12 fields engineers filter by in this category (category median 5).
- Energy
- 178 Wh datasheet p.94 178 Wh Energy
- Mass
- 1 600 g typ. · measured · datasheet p.1 1 600 g | 1 600 g Mass (kg measured)
- Capacity
- 12 Ah datasheet p.94 12 Ah Nameplate Capacity
- Cell chemistry
- Li-ion (unspecified) Li-ion Space Battery, ABSL P20 cell · datasheet p.1
- Envelope (L×W×H)
- 113 x 132 mm footprint, height 95 mm datasheet p.1 95 mm Height
- Supply voltage
- 14 V nom. · datasheet p.1 12 V min | 16.8 V max | 12–16.8 V Voltage Range
- Operating temperature
- 0 °C min · Thermal chamber only · datasheet p.95 40 °C max · Thermal chamber only | 0–40 °C Operating (Thermal chamber only)
- Radiation tolerance (TID)
- 10 000 krad cell level, <1% decrease in capacity · datasheet p.2
- Cell configuration
- 4s6p datasheet p.1
- Connector
- single D-type connector datasheet p.1
- Survival temperature
- -10 °C min · Non-Operating · datasheet p.95 50 °C max · Non-Operating | -10–50 °C Non-Operating
- Random vibration
- 25 g RMS random vibration, Overall GRMS · datasheet p.2
- Flight heritage
- utilised for a variety of nano/micro satellite missions, including a constellation for Internet of Things (IoT); over 5.5 billion cell hours of in-orbit heritage using ABSL Li-ion cell technology datasheet p.1
- Quasi-static load
- 60 g 100 Hz · datasheet p.0 2 000 g 10000 Hz | 2 000 g 1300 Hz
- Shock qualification
- 2 000 g Shock input at 1300 Hz and 10,000 Hz, 3 shocks per axis · datasheet p.2
- Cell model
- P20 datasheet p.1
- Cell balancing
- none does not require cell balancing electronics · datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier8 lines, in the manufacturer's own wording
- Cell
- ABSL P20
- Topology
- 4s6p
- Voltage range
- 16.8 - 12.0 V
- Nameplate capacity
- 12 Ah
- Energy
- 178 Wh
- Footprint
- 113 x 132 mm
- Height
- 95 mm
- Mass (measured)
- 1.6 kg
About
The ABSL CM170 in 4s6p topology is a compact Li-ion space battery built on the ABSL P20 cell, configured for a 14 V spacecraft bus.
At 1.6 kg and 178 Wh it is the smallest member of the range documented here, suited to SmallSat applications for new space missions. Whether for SmallSat applications or large multi-module battery configurations for cornerstone space agency programmes, EnerSys Space can provide the solution.
ABSL supplied the longest operating rechargeable Li-ion battery in space, the first to orbit Earth, Mars and Venus, the closest to orbit the sun, and the batteries trusted to power the James Webb Telescope, with over 6.5 billion cell hours in space without a mission failure.
