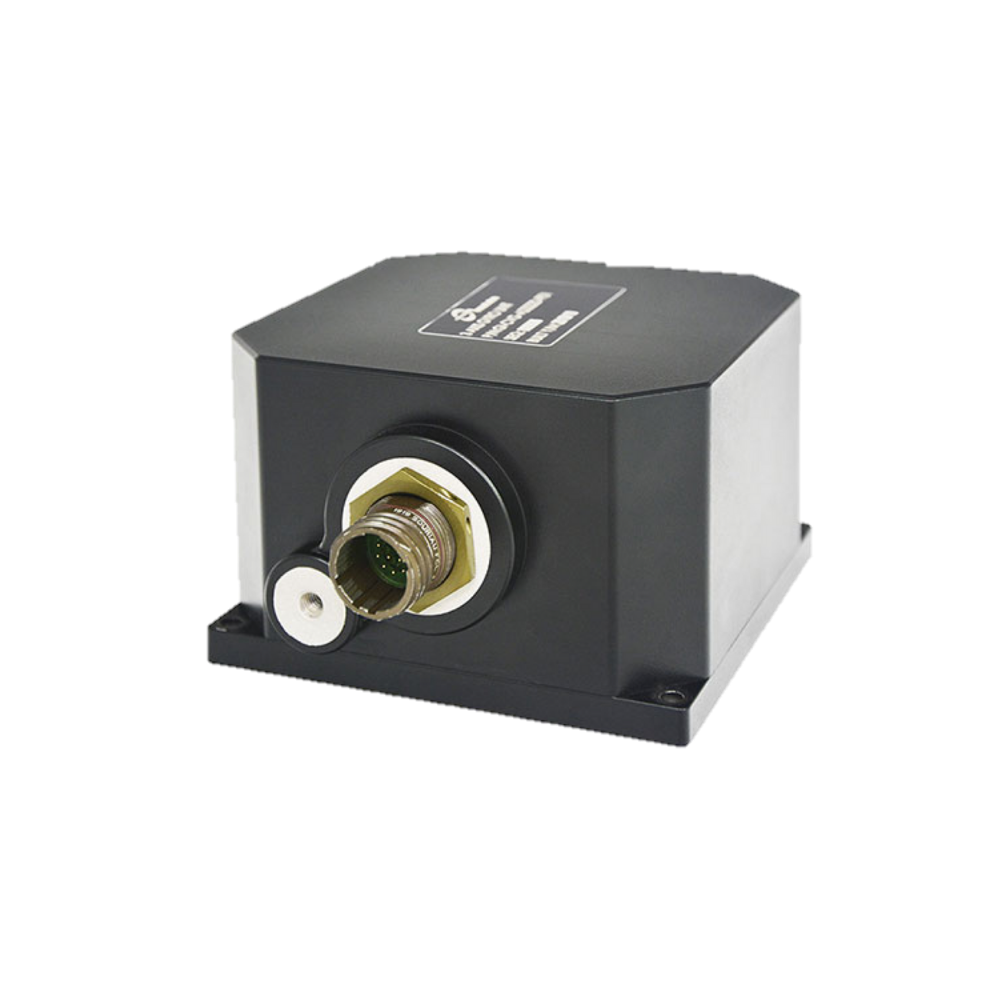

GI-CVG-A23XXD A-Series 3-Axis CVG Digital Gyroscope
Innalabs
3-axis Coriolis Vibratory Gyroscope with RS422 digital output, 0.3°/hr bias stability, 500K+ hr MTBF.
Typed specifications7 values
Discloses 4 of 11 fields engineers filter by in this category (category median 3).
- Mass
- 1 300 g max · product page
- Envelope (L×W×H)
- 107 × 107 × 68 mm product page
- Output data rate
- 2 000 Hz product page
- Angle random walk
- 0.01 °/√h product page
- Supply voltage
- 28 V product page
- Power consumption
- 6 W max · product page
- Connector
- MIL-DTL-38999 Series III (13-pin) product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier16 lines, in the manufacturer's own wording
- Input rate
- ±160°/s
- Bias in-run (1σ)
- 0.3°/hr
- Angle random walk (ARW)
- 0.01 °/√hr typical
- Bandwidth (-3dB)
- >300 Hz
- Turn-on time
- 1 sec
- Output update rate
- 2 KHz
- Baud rate
- 1 MBaud
- Output format
- RS422 Asynchronous
- Power supply
- 28 V
- Power consumption
- ≤6 W
- MTBF
- >500,000 hours
- Mass
- ≤1.3 kg
- Dimensions
- 107 × 107 × 68 mm
- Connector
- MIL-DTL-38999 Series III (13-pin)
- Built-in self test
- Yes
- Number of axes
- 3
About
The InnaLabs GI-CVG-A23XXD A-Series is a 3-axis Coriolis Vibratory Gyroscope (CVG) with digital output, enabling accurate measurements of roll, pitch, and yaw rotations simultaneously. Designed for tactical-grade applications demanding very low noise, large bandwidth, and high reliability in a compact format. Solid-state design provides exceptional MTBF of over 500,000 hours with only 1 second turn-on time. Applications include platform stabilization, ship navigation/gyrocompass, GPS-aiding, survey instrument stabilization, UAV flight control, and aircraft/helicopter navigation. Features built-in self-test, RS422 Asynchronous digital interface at 1 MBaud, 2 KHz update rate, and MIL-DTL-38999 Series III connector. Bias in-run stability of 0.3°/hr (1σ).
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
