Fibre-Optic Gyroscope
SPUTNIX

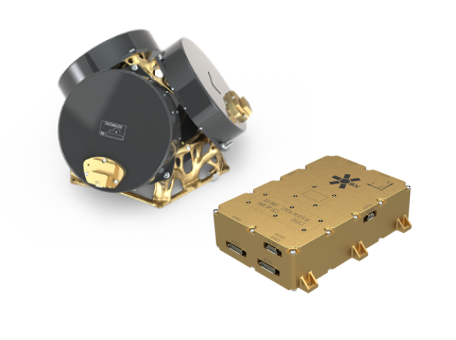

A high-precision fibre-optic gyroscope (FOG, SX-SBOX-AVS-FOG-01) with a control unit and 4-element sensitive assembly (3 main + 1 backup) for orientation determination.
Typed specifications5 values
Discloses 2 of 11 fields engineers filter by in this category (category median 3).
- Mass
- 1 700 g product page
- Bias instability
- 0.005 °/h max · product page 0.02 °/h max
- Envelope (L×W×H)
- 275 x 275 x 160 mm (without fasteners) product page 171 x 111 x 44 mm (without fasteners)
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier9 lines, in the manufacturer's own wording
- Dimensions of the sensor unit
- 275 x 275 x 160 mm (without fasteners)
- Dimensions of the control unit
- 171 x 111 x 44 mm (without fasteners)
- Power voltage
- 22-34, galvanic isolation 500 V
- Power consumption, wt
- up to 33
- Mass of control unit with sensor unit
- 1.7 kg
- Duplicated interfaces
- CAN2B
- Random component of zero signal drift at constant temperature (100 sec-averaging, 1σ) per axis
- ≤0.005°/h
- Random component of zero signal drift when temperature changes from -40°c to +60°c (100 sec-averaging, 1σ) per axis
- ≤0.02°/h
- Spectral density of noise power (per allan variance) per axis
- ≤0.0007°/√h
About
Fibre-Optic Gyroscope (FOG) is designed for use in the loop of the orientation determination system of small satellites. Angular velocity measurements are based on sensitive elements from a third-party Russian manufacturer. FOG consists of a control unit and an assembly of 4 sensitive elements (three main and one backup). It is SPUTNIX’s own development per company standards, ECSS-compatible, relatively low cost, low weight and energy consumption, adapted to customer requirements, with unified electrical, information and mechanical interfaces.
