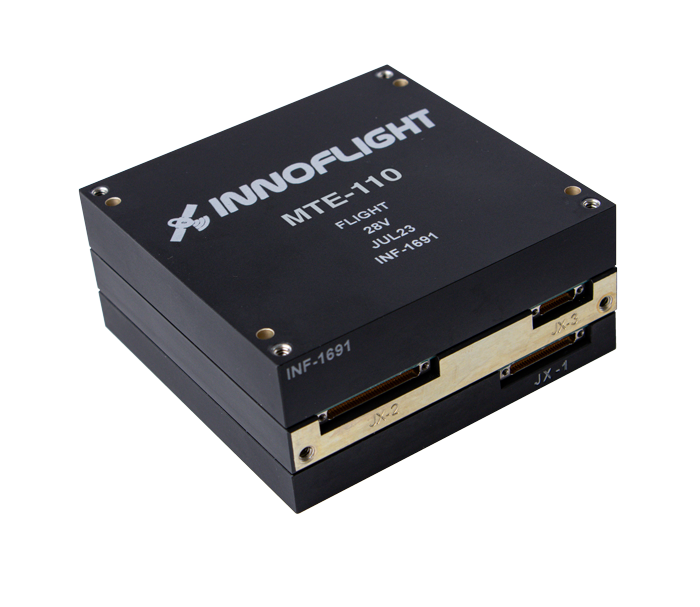

MTE-110 Mission Timing Electronics
Innoflight
CubeSat timing unit with embedded chip scale atomic clock (CSAC) and radiation-tolerant IA design, 250 g at 3 W.
Key figurescomparable across the catalogue
- Mass
- 0.25 kg
- Power
- 3 W
- TRL
- 9
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Clock
- Embedded Chip Scale Atomic Clock (CSAC)
- Design
- Radiation tolerant Information Assurance (IA)
- Control
- 2x RS-422 UART
- Inputs
- 2x RS-422 PPS (Red), typically GPS receivers
- Outputs
- 3x LVDS PPS (Red), 8x LVDS PPS (Black), 2x RS-422 PPS (Black), 8x LVDS 10 MHz (Black)
- Form factor
- CubeSat 82 x 82 x 38 mm
- Mass
- 250 g
- Power
- 3 W
- TRL / MRL
- 9 / 10
- Flight heritage
- Since 2023
About
The MTE-110 is a Mission Timing Electronics (MTE) unit.
Overview: high accuracy timing operations for the spacecraft bus or the mission payload; embedded Chip Scale Atomic Clock (CSAC); radiation tolerant Information Assurance (IA) design.
Key characteristics: control via 2x RS-422 UART; inputs 2x RS-422 PPS (Red), typically from GPS receivers; outputs 3x LVDS PPS (Red), 8x LVDS PPS (Black), 2x RS-422 PPS (Black) and 8x LVDS 10 MHz (Black).
Size, weight and power: CubeSat 82 x 82 x 38 mm, 250 g, 3 W. Technology and manufacturing readiness are TRL 9 / MRL 10, with flight heritage since 2023.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
