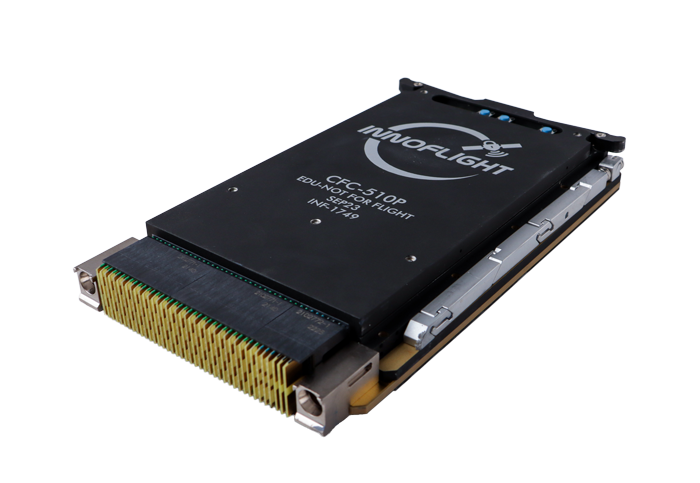

CFC-510P Compact Flight Computer
Innoflight
GPU-based 3U VPX flight computer on AMD Ryzen with CUDA runtime environment, 539 g and 40 W max, flying since 2025.
Typed specifications6 values
Discloses 3 of 13 fields engineers filter by in this category (category median 5).
- Processor
- AMD Ryzen GPU product page
- Mass
- 539 g product page
- Power consumption
- 40 W product page
- TRL
- 9 product page
- Flight heritage
- CFC-500S / CFC-500P (NVIDIA Tegra K1 GPU) product page Since 2025
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.

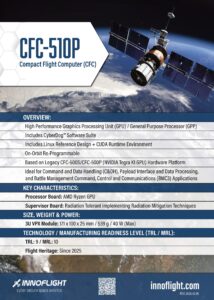

As published by the supplier9 lines, in the manufacturer's own wording
- Processor board
- AMD Ryzen GPU
- Supervisor board
- Radiation tolerant, implementing radiation mitigation techniques
- Software
- CyberDog Software Suite, Linux reference design, CUDA runtime environment
- Heritage platform
- CFC-500S / CFC-500P (NVIDIA Tegra K1 GPU)
- Form factor
- 3U VPX module 171 x 100 x 25 mm
- Mass
- 539 g
- Power
- 40 W max
- TRL / mrl
- 9 / 10
- Flight heritage
- Since 2025
About
The CFC-510P is a Compact Flight Computer (CFC) built around a high performance Graphics Processing Unit (GPU) and General Purpose Processor (GPP).
Overview: high performance GPU / GPP; includes the CyberDog Software Suite; includes a Linux reference design plus CUDA runtime environment; on-orbit re-programmable; based on the legacy CFC-500S / CFC-500P (NVIDIA Tegra K1 GPU) hardware platform. Ideal for Command and Data Handling (C&DH), payload interface and data processing, and Battle Management Command, Control and Communications (BMC3) applications.
Key characteristics: processor board with AMD Ryzen GPU; radiation tolerant supervisor board implementing radiation mitigation techniques.
Size, weight and power: 3U VPX module 171 x 100 x 25 mm, 539 g, 40 W maximum. Technology and manufacturing readiness are TRL 9 / MRL 10, with flight heritage since 2025.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
