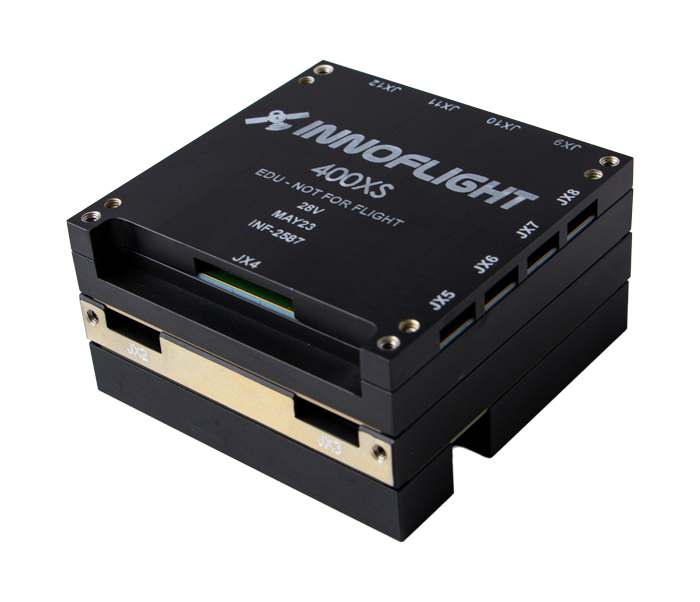

CFC-400XS Compact Flight Computer
Innoflight
CubeSat compact flight computer with defense-grade Xilinx UltraScale+ MPSoC, CyberDog software suite and Linux reference design, flying since 2021.
Typed specifications3 values
Discloses 2 of 13 fields engineers filter by in this category (category median 5).
- Processor
- Defense-grade Xilinx UltraScale+ MPSoC (GPP + FPGA) product page
- TRL
- 9 product page
- Flight heritage
- Since 2021 product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier8 lines, in the manufacturer's own wording
- Processor board
- Defense-grade Xilinx UltraScale+ MPSoC (GPP + FPGA)
- Supervisor board
- Radiation tolerant, implementing radiation mitigation techniques
- Daughter card interfaces
- Low + medium + high speed serial; 3x-8x 1000Base-T (GbE) Ethernet
- Software
- CyberDog Software Suite, Linux reference design; on-orbit re-programmable
- Applications
- C&DH, payload interface and data processing, BMC3
- Form factor
- CubeSat 82 x 82 x 27-43 mm / 239-350 g / 6-25 W
- TRL / mrl
- 9 / 10
- Flight heritage
- Since 2021
About
The CFC-400XS is a Compact Flight Computer (CFC) combining a General-Purpose Processor (GPP) and Field Programmable Gate Array (FPGA).
Overview: high performance GPP / FPGA; includes the CyberDog Software Suite; includes a Linux reference design; on-orbit re-programmable; based on the legacy CFC-400 hardware platform. Ideal for Command and Data Handling (C&DH), payload interface and data processing, and Battle Management Command, Control and Communications (BMC3) applications.
Key characteristics: processor board with defense-grade Xilinx UltraScale+ Multi-Processor System-on-Chip (MPSoC); radiation tolerant supervisor board implementing radiation mitigation techniques; daughter card interfaces with low, medium and high speed serial plus 3x-8x 1000Base-T (GbE) Ethernet.
Size, weight and power: CubeSat 82 x 82 x 27-43 mm, 239-350 g, 6-25 W. Technology and manufacturing readiness are TRL 9 / MRL 10, with flight heritage since 2021.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
