CFC-405XP / CFC-450XP Compact Flight Computer
Innoflight
3U VPX compact flight computer with defense-grade Xilinx UltraScale+ MPSoC, five gigabit Ethernet ports and serial interfaces, flying since 2025.
Key figurescomparable across the catalogue
- Mass
- 0.547 kg
- Power
- 18 W
- TRL
- 9
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Processor board
- Defense-grade Xilinx UltraScale+ MPSoC (GPP + FPGA)
- Supervisor board
- Radiation tolerant, implementing radiation mitigation techniques
- Interfaces
- Ethernet 5x 1000Base-T (GbE); serial RS-422, LVDS, UART
- Software
- CyberDog Software Suite, Linux reference design; on-orbit re-programmable
- Form factor
- 3U VPX module 171 x 100 x 25 mm
- Mass
- 547 g
- Power
- 18-25 W
- TRL / MRL
- 9 / 10
- Flight heritage
- Since 2025
About
The CFC-405XP and CFC-450XP are Compact Flight Computers (CFC) combining a General-Purpose Processor (GPP) and Field Programmable Gate Array (FPGA) in a 3U VPX module.

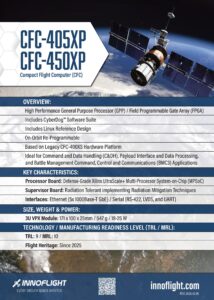

Overview: high performance GPP / FPGA; includes the CyberDog Software Suite; includes a Linux reference design; on-orbit re-programmable; based on the legacy CFC-400XS hardware platform. Ideal for Command and Data Handling (C&DH), payload interface and data processing, and Battle Management Command, Control and Communications (BMC3) applications.
Key characteristics: processor board with defense-grade Xilinx UltraScale+ Multi-Processor System-on-Chip (MPSoC); radiation tolerant supervisor board implementing radiation mitigation techniques; interfaces Ethernet (5x 1000Base-T GbE) and serial (RS-422, LVDS and UART).
Size, weight and power: 3U VPX module 171 x 100 x 25 mm, 547 g, 18-25 W. Technology and manufacturing readiness are TRL 9 / MRL 10, with flight heritage since 2025.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
