SWC-400XS Networking Ethernet Switch
Innoflight
CubeSat-form-factor networking Ethernet switch on the CFC-400XS platform with eight gigabit Ethernet ports, flight heritage since 2023.
Key figurescomparable across the catalogue
- Mass
- 0.31 kg
- Power
- 20 W
- TRL
- 9
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Function
- Networking Ethernet switch
- Hardware platform
- CFC-400XS with Ethernet switch personality
- Processor board
- Defense-grade Xilinx UltraScale+ MPSoC
- Supervisor board
- Radiation tolerant, implementing radiation mitigation techniques
- Interfaces
- 8x 100/1000 Base-T (GbE) Ethernet ports
- Software
- CyberDog Software Suite; on-orbit re-programmable
- Form factor
- CubeSat 82 x 82 x 43 mm / 310 g / 20 W max
- TRL / MRL
- 9 / 10
- Flight heritage
- Since 2023
About

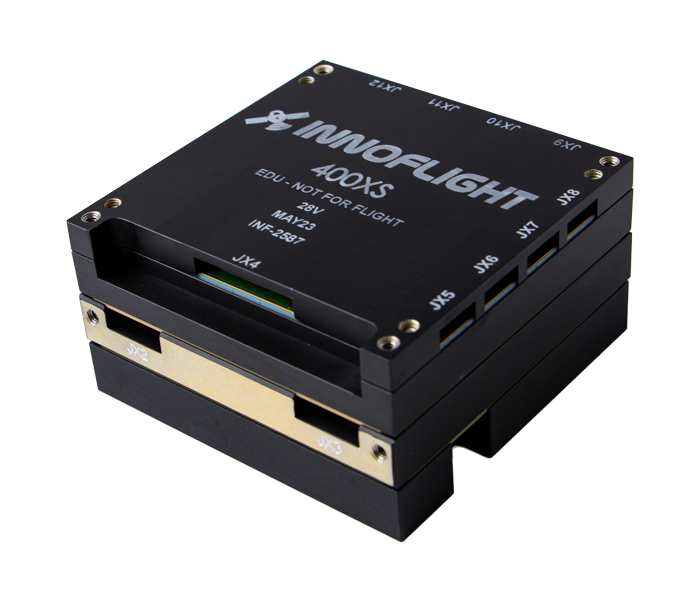

The SWC-400XS is a Networking Ethernet Switch (SWC) in CubeSat form factor.

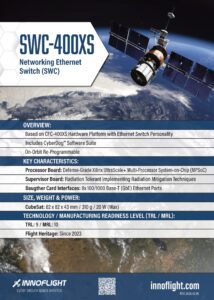

Overview: based on the CFC-400XS hardware platform with Ethernet switch personality; includes the CyberDog Software Suite; on-orbit re-programmable.
Key characteristics: processor board with defense-grade Xilinx UltraScale+ Multi-Processor System-on-Chip (MPSoC); radiation tolerant supervisor board implementing radiation mitigation techniques; daughter card interfaces providing 8x 100/1000 Base-T (GbE) Ethernet ports.
Size, weight and power: CubeSat 82 x 82 x 43 mm, 310 g, 20 W maximum. Technology and manufacturing readiness are TRL 9 / MRL 10, with flight heritage since 2023.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
