Ku GEO/LEO 9 dB/K
Greenerwave

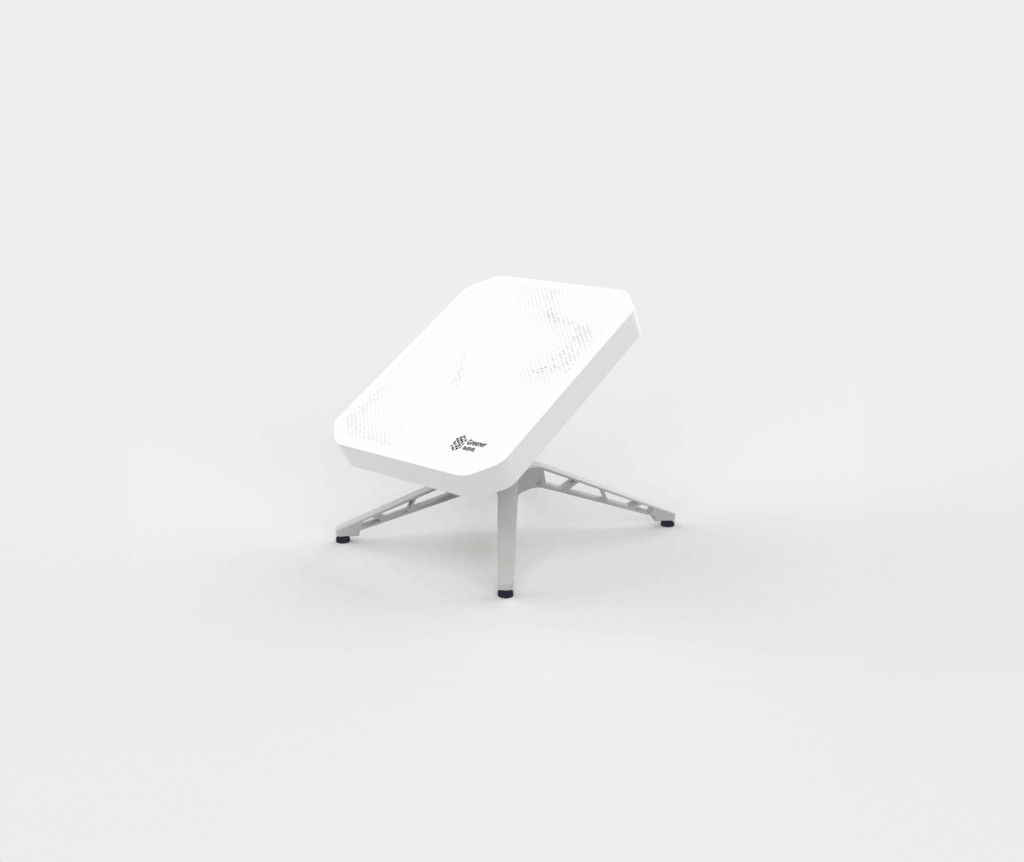

Greenerwave's Ku GEO/LEO 9 dB/K is a state-of-the-art, energy-efficient, and electronically steerable antenna user terminal for high-performance connectivity with both Geostationary Orbit (GEO) and Low Earth Orbit (LEO) satellites.
Typed specifications3 values
Discloses 0 of 10 fields engineers filter by in this category (category median 3).
- Envelope (L×W×H)
- ~ 54 cm x 63 cm x 11 cm product page
- Operating temperature
- -40 °C product page
- Survival temperature
- -40 °C product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier12 lines, in the manufacturer's own wording
- Dimensions
- ~ 54 cm x 63 cm x 11 cm
- Mass
- ~ 14 kg
- Operating power consumption
- < 90 W Typical (Including SSPA and GEO Modem)
- Operating temperature
- -40°C to +55°C
- Storage temperature
- -40°C to +85°C
- Protection ingress
- IP65
- Rx frequency
- 10.7 GHz – 12.75 GHz
- Tx frequency
- 14 GHz – 14.5 GHz
- G/t
- Up to 9.0 dB/K
- Eirp
- Up to 40 dBW
- Polarization (Software-Controlled)
- Linear (H/V); Circular (RH/LH); Switchable
- Antenna coverage
- Azimuth: 360° Elevation: 25° – 90°
About
Greenerwave’s multi-orbit GEO/LEO user terminal is an advanced, energy-efficient, and electronically steerable antenna. It leverages Greenerwave’s proprietary Reconfigurable Intelligent Surfaces (RIS) technology to ensure high-performance connectivity, specifically tailored for communication with satellites in both Geostationary Orbit (GEO) and Low Earth Orbit (LEO). The terminal’s innovative design emphasizes agility, robustness, and reliability, making it suitable for the increasing demands of modern communication applications. It features software-controlled polarization, allowing for Linear (H/V) and Circular (RH/LH) options, which are switchable. The antenna provides extensive coverage with an Azimuth of 360° and an Elevation range of 25° to 90°. Accessories include an AC/DC converter, a battery kit (comprising a 99Wh battery and a charger for up to 3 batteries), a tripod, and complementary power/Ethernet cables.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
