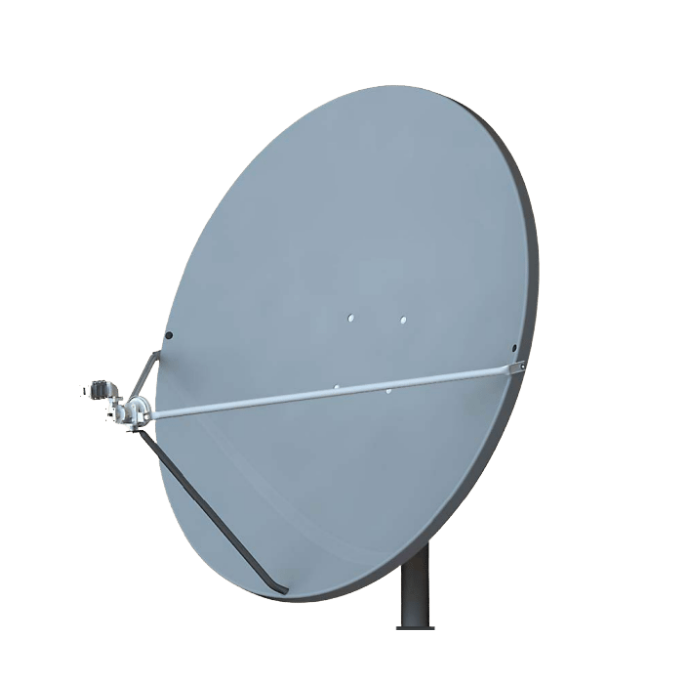

SBAF120UL3 1.2m Lower Ku-Band Tx/Rx SFL Class I Antenna System
SpaceBridge Inc.
Rugged, commercial-grade 1.2m lower Ku-band Tx/Rx antenna system for the most demanding applications.
Typed specifications35 values
Discloses 7 of 10 fields engineers filter by in this category (category median 3).
- Frequency band
- Ku datasheet p.2 Ku Lower Ku-band | Ku Rx | Ku Tx
- Peak gain
- 41.1 dBi Rx, @ 11.2GHz · datasheet p.2 42.2 dBi Tx, @ 13.0GHz | 41.1 dBi
- Mass
- 16 000 g approximate weight excluding mast · datasheet p.2 16 000 g excluding mast
- Frequency range
- 10 700 MHz Rx · datasheet p.2 12 750 MHz Tx | 10 700–11 700 MHz Rx | 12 750–13 250 MHz Tx | 11 700 MHz Rx +2
- Envelope (L×W×H)
- 120cm effective aperture · datasheet p.2
- Polarization
- other (co-pol optional), Linear orthogonal · datasheet p.2 linear Linear orthogonal (co-pol optional) | linear orthogonal (co-pol optional)
- Antenna type
- offset feed prime focus datasheet p.2 reflector (parabolic) one-piece offset feed prime focus, SMC reflector
- Operating temperature
- -50 °C product page -50–80 °C
- RF connector
- waveguide flange feed interface WR75 (Tx and Rx) · datasheet p.2
- Fixed or deployable
- fixed Pointing: Fixed · datasheet p.2
- Connector
- WR75 Rx · datasheet p.2 WR75 Tx
- Beam steering
- fixed Pointing: Fixed; azimuth 360° continuous (±5° fine adjustment… · datasheet p.2
- VSWR, max
- 1.5 Rx, 1.5:1 · datasheet p.2 1.3 Tx, 1.3:1
- Reflector diameter
- 1.2 m effective aperture · datasheet p.2
- Mounting
- mast pipe interface diameter 73 - 76mm; precision Az/El mount from heavy-gauge steel; galvanized 19mm O.D. feed support legs datasheet p.2
- Isolation
- 40 dB Rx · datasheet p.2 90 dB Tx
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier16 lines, in the manufacturer's own wording
- Effective aperture
- 120 cm
- Azimuth range
- 360° continuous
- Elevation range
- 5° - 90° continuous
- Mast pipe interface diameter
- 73 - 76 mm
- Mass
- 16 kg
- Wind operational
- 72 km/h
- Wind survival
- 200 km/h
- Temperature range
- -50°C to +80°C
- Humidity
- 0 – 100%
- Frequency range Tx
- 12.75 – 13.25 GHz
- Frequency range Rx
- 10.70 – 11.70 GHz
- Gain Tx
- 42.2 dB @ 13.0 GHz
- Gain Rx
- 41.1 dB @ 11.2 GHz
- VSWR Tx
- 1.3:1
- VSWR Rx
- 1.5:1
- Feed Interface Tx
- WR75
About
This is a Class I antenna system for reliable lower Ku-band operation, built for harsh commercial and outdoor environments. The reflector uses glass-fiber-reinforced polyester (SMC) for structural strength and the dimensional/surface accuracy critical to RF performance. Feed support legs are galvanized 19mm O.D. tubing for lightweight, corrosion-resistant construction. Pointing precision is achieved via a heavy-gauge steel azimuth/elevation mount with fine adjustment, and mounting hardware is plated to withstand 72-hour salt spray testing (ASTM B-117), suiting coastal and maritime deployment. It is RoHS (2002/95/EC) compliant and meets or exceeds regulatory antenna-pattern requirements, targeting demanding commercial VSAT terminal installations needing a durable, field-serviceable antenna platform.
