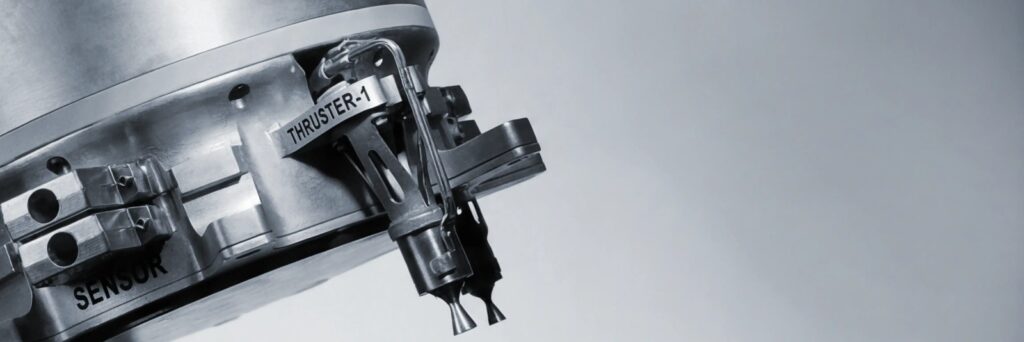

GP-LAM Liquid Apogee Module
Manastu Space
300N modular green propulsion Liquid Apogee Module for launch vehicle upper stages, OTVs, and GEO spacecraft — multi-restart apogee raise, plane change, and compliant deorbit.
Technical specifications
- Spacecraft type
- OTVs, launch vehicle upper stage, GEO stationary satellite
- Nominal thrust
- 300 N (BOL)
- Specific impulse
- 250 s (BOL)
- Total impulse
- 150,000 Ns
- Max continuous firing time
- 450 s
- Supply voltage
- 24 VDC
- Propellant
- MS289 (hydrogen peroxide-alcohol)
- Mass (dry/wet)
- 1.1 kg
- Operational temperature range
- -50°C to 150°C
- Pre-heat time
- 25-40 minutes
- Data interface
- RS485 (customizable)
- System power
- 100 W (preheat), 20 W (firing)
About

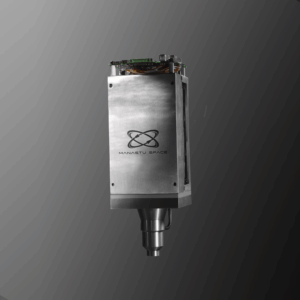

GP-LAM is Manastu Space’s modular green propulsion Liquid Apogee Module designed for launch vehicle upper stages, orbital transfer vehicles, and GEO stationary satellites. It provides multi-restart apogee raise, precise circularization and plane change, rideshare dispersion cleanup, and compliant passivation/deorbit capability. The system includes propellant and pressurization gas tanks, feedlines, electrical connections, and sensors, with mechanical, power, data, gas, and liquid interfaces to the launcher. GP-LAM was Manastu’s first commercial contract, delivered to France-based aerospace company Latitude, functioning as an Auxiliary Propulsion System performing stage separation, orbit stabilization, and safe deorbiting. The system uses Manastu’s proprietary MS289 hydrogen peroxide-alcohol green propellant with an ultra-high-temperature ceramic catalyst operating at 1400°C.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
