PBR-20
Pale Blue

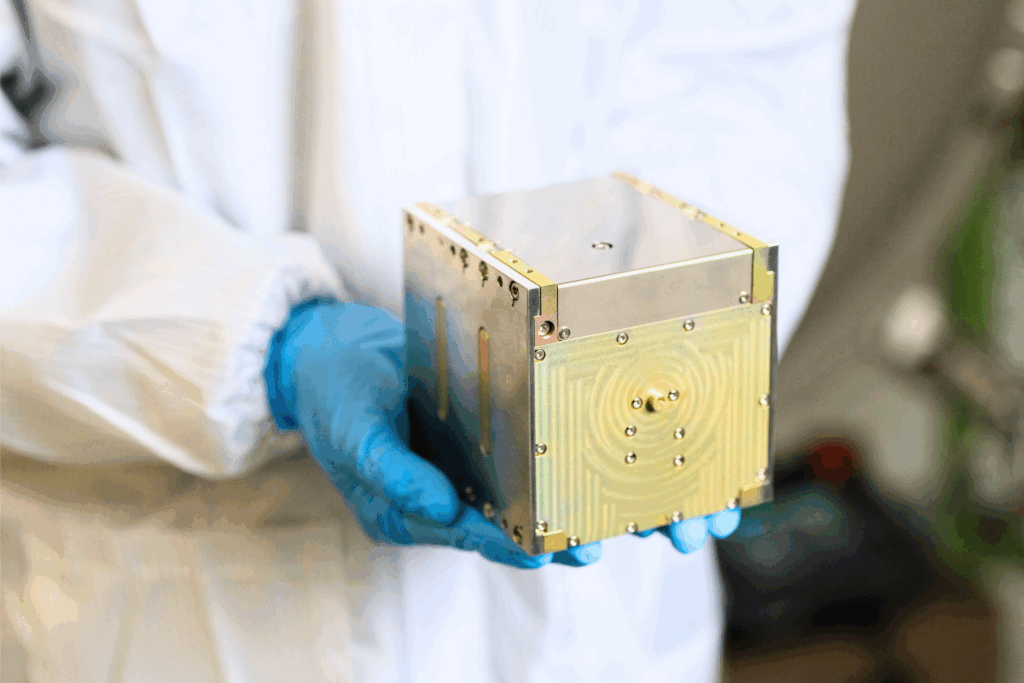

The Pale Blue PBR-20 is a miniaturized 1U water vapor propulsion system, fully integrated with thruster, fluidics, electronics, and propellant tank, designed for small satellites.
Typed specifications5 values
Discloses 3 of 10 fields engineers filter by in this category (category median 3).
- Mass
- 1.5 kg max · product page
- Thrust
- 1 mN product page
- Envelope (L×W×H)
- 1U product page
- Total impulse
- 220 N·s min · product page
- Power consumption
- 20 W product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier6 lines, in the manufacturer's own wording
- Power
- 20 W
- Thrust
- 1.0 mN
- Total impulse
- > 220 Ns
- Wet mass
- < 1.5 kg
- Envelope
- 1U
- Comm. if
- RS-422
About
The Pale Blue PBR-20 is a miniaturized water vapor propulsion system designed for small satellites, specifically in a 1U form factor. This system is fully integrated, incorporating the thruster head, fluidics, electronics, and propellant tank into a single unit. It utilizes water as a propellant, eliminating the need for high-pressure storage, which simplifies handling and integration. The propellant is preloaded into the tank at the factory, removing the need for complex fueling work by satellite integrators. The PBR-20 is clusterable, allowing it to be scaled to meet the propulsion needs of a wide range of spacecraft sizes. It has demonstrated in-orbit operation, with verification after two years in Low Earth Orbit (LEO) on a nanosatellite.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
