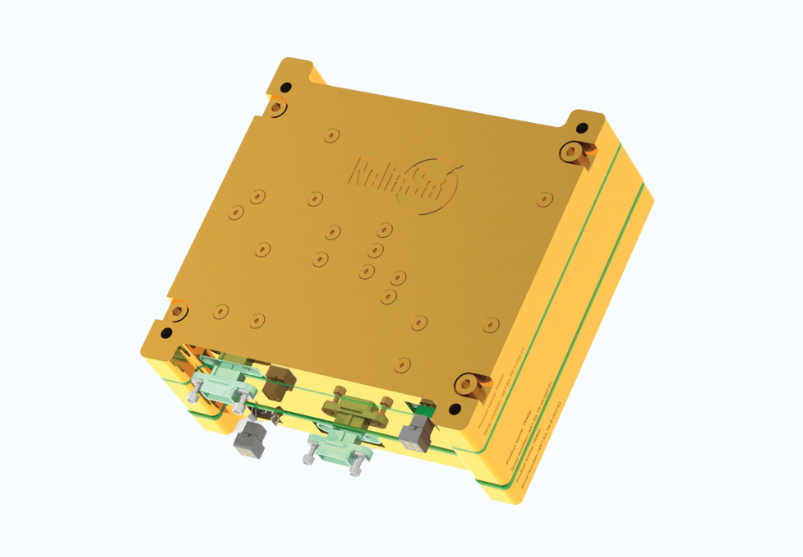

Ka-Band Frequency Agile Transceiver TR400
ReliaSat
The TR400 is a fully integrated Ka-band satellite transceiver with two programmable local oscillators covering TX 17.3-20.7 GHz and RX 27.5-30.5 GHz with up to 250 MHz instantaneous bandwidth. It is designed for high-speed LEO satcom, IoT, and 5G applications.
Typed specifications52 values
Discloses 6 of 13 fields engineers filter by in this category (category median 3).
- Frequency band
- Ka RX · datasheet p.1 Ka TX | Ka TX 17.3-20.7 GHz, RX 27.5-30.5 GHz (named Ka-band in document)
- Mass
- 1 000 g max · Total Mass · datasheet p.4 1 000 g max · total mass <1 kg
- Frequency range
- 400–2 000 MHz RX IF output frequency range · datasheet p.3 27 500–30 500 MHz RX input | 27 500–30 500 MHz RX input frequency range | 400–2 000 MHz TX IF input frequency range | 17 300–20 700 MHz TX output +1
- Envelope (L×W×H)
- 95.89 x 90.17 x 38.14 mm Mechanical Enclosure Dimensions · datasheet p.4 96 x 91 x 1 (max) PCB dimensions
- TX RF output power
- 0.316 W min · P1dB · datasheet p.2 0.501 W max · P1dB | 0.316–0.501 W TX Output Power, P1dB | 0.316–0.501 W TX output power, P1dB, 25-27 dBm
- Supply voltage
- 6 V min · Downconverter · datasheet p.3 6 V min · Upconverter | 60 V max · Downconverter | 60 V max · Upconverter | 6–60 V Downconverter Supply Voltage Range +2
- Power consumption
- 6 W Downconverter at 28 VDC · datasheet p.3 6 W Downconverter, at 28 VDC | 10 W Upconverter at 28 VDC | 10 W Upconverter, at 28 VDC
- Operating temperature
- -40–85 °C Downconverter Operating Temperature Range · datasheet p.3 -40–85 °C Upconverter Operating Temperature Range
- Function
- transceiver integrated transceiver module, wideband up/down converter for… · datasheet p.1
- RF connector
- SMPM edge mount for Receiver · datasheet p.4 SMP edge mount for Transmitter | SMP IF Signal Connector Types | SMP IF signal connectors, edge mounts | SMPM receiver RF, edge mount +1
- Power draw, receive
- 6 W downconverter DC power at 28 VDC (printed '6 (at 28 VDC)0') · datasheet p.3
- Power draw, transmit
- 10 W upconverter DC power at 28 VDC · datasheet p.2
- Connector
- Harwin 4-pin (DC); Harwin 12-pin (current sensor, temperature sensor, synthesiser lock, DC power enable, MCU) datasheet p.4 Harwin 12-pin Connector Current Sensor, Temperature Sensor, Frequency Synthesiser Loc… | Harwin 4-pin Connector DC Connector Types | SMP edge mounts IF Signal Connector Types | SMPM edge mount RF Connector Types for Receiver +1
- Satellite class
- CubeSat form factor requirement: Cube Sat · datasheet p.4
- Frequency tunable in orbit
- yes two programmable local oscillators LO1 and LO2, step size 200… · datasheet p.2
- Channel bandwidth
- 250 000 kHz max · handling up to 250 MHz of bandwidth · datasheet p.1
- Board format
- custom PCB Dimensions · datasheet p.4
- RF gain
- 0–63 dB downconverter conversion gain · datasheet p.3 0–66 dB upconverter conversion gain, programmable in 0.25 dB steps
- Noise figure
- 2.4 dB max · downconverter, <2.4 · datasheet p.3
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier9 lines, in the manufacturer's own wording
- Tx frequency
- 17.3-20.7 GHz
- Rx frequency
- 27.5-30.5 GHz
- Tx if frequency
- 0.4-2 GHz
- Rx if frequency
- 0.4-2 GHz
- Tx output power
- 25-27 dBm
- Instantaneous bandwidth
- Up to 250 MHz
- Local oscillators
- 2 x programmable
- Operating temperature
- -40C to +85C
- Housing
- Robust aluminum
About
The TR400 is a highly sophisticated, fully integrated transceiver module for Ka-band satellite communications, functioning as a wideband up/down converter compatible with modems or Software Defined Radios (SDRs). It provides broad frequency coverage with TX at 17.3-20.7 GHz and RX at 27.5-30.5 GHz, supporting up to 250 MHz of instantaneous bandwidth for high-throughput data links.
Precise frequency adjustments are made through two independently programmable local oscillators, giving system designers the agility needed for frequency-hopping and multi-satellite operations. The module maintains reliable operation across extreme temperatures from -40C to +85C, backed by high-precision oscillators for frequency stability.
Housed in a robust aluminum enclosure, the TR400 is designed for ground terminals, airborne platforms, and satellite payloads requiring compact, versatile Ka-band RF front-ends. Its IF interface (0.4-2 GHz on both TX and RX) is directly compatible with commercial satellite modems and SDR platforms, enabling rapid system integration for LEO mega-constellation ground networks, high-speed IoT backhaul, and 5G non-terrestrial network (NTN) applications.
