Advanced Lightband (ALB)
Planetary Systems Corp (Rocket Lab)
Lightweight next-generation spacecraft separation system, one-third the weight and half the height of a typical clamp band.
Typed specifications2 values
Discloses 0 of 14 fields engineers filter by in this category (category median 1).
- Envelope (L×W×H)
- 12 to 36 fasteners depending on diameter product page
- Flight heritage
- 100% on-orbit separation success; thousands of qualification tests product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier6 lines, in the manufacturer's own wording
- Bolt circle diameters available
- 8.000", 11.732", 13.000", 15.000", 18.250", 19.848", 23.250", 24.000" (in)
- Fastener counts by size
- 12 to 36 fasteners depending on diameter
- Tip-off rate
- Tunable to < 1 deg/sec
- Separation delta-v
- Tunable to < 1.0 in/sec
- Integration time
- < 30 minutes
- Flight heritage
- 100% on-orbit separation success; thousands of qualification tests
About

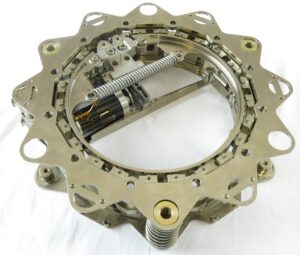

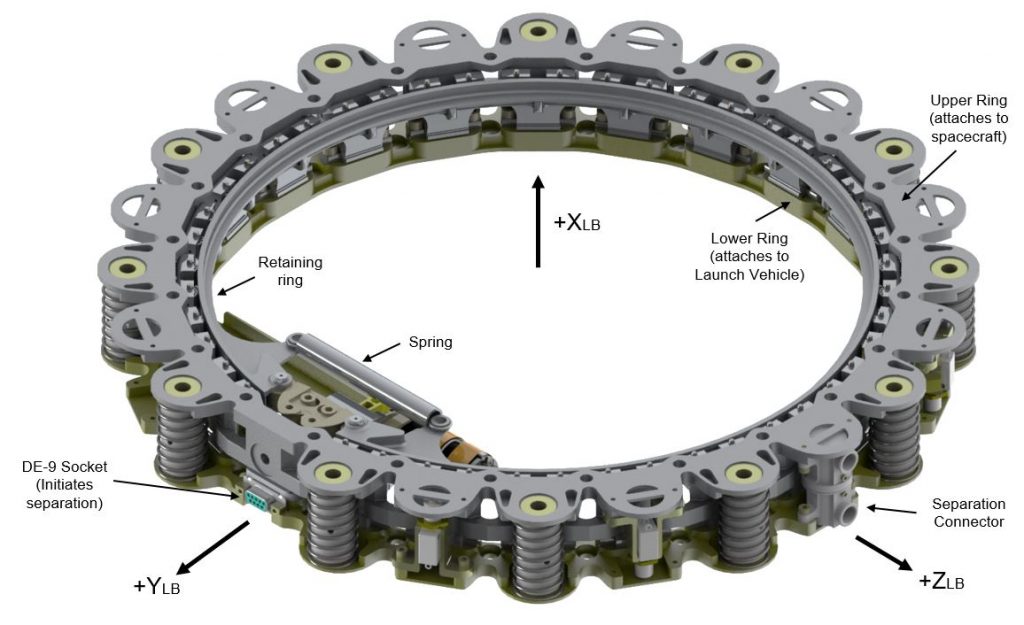

The Advanced Lightband (ALB) is Planetary Systems Corporation’s next-generation, lightweight spacecraft separation system, used to separate space vehicles from launch vehicles and to separate elements of launch vehicles. It is offered in bolt-circle diameters from 8 to 24 inches and features integrated springs, switches, and connectors, with low shock and low tip-off rates (tunable to under 1 deg/sec) and tunable separation delta-V (under 1.0 in/sec). The ALB is backwards- and pyro-pulse compatible with the Motorized Lightband, integrates in under 30 minutes, and has never failed to separate on orbit across its flight history, backed by thousands of qualification separation tests.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
