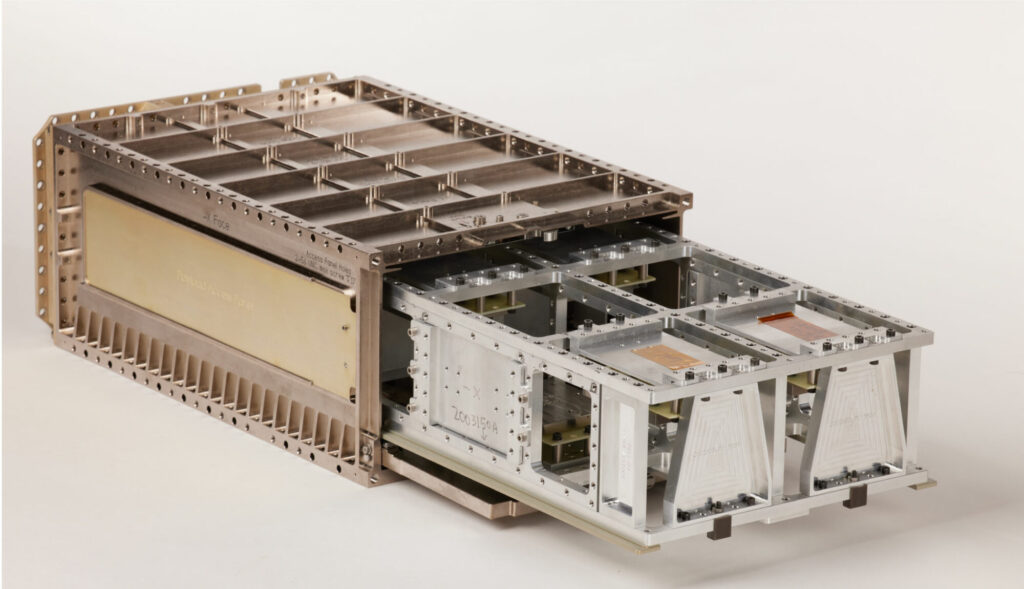

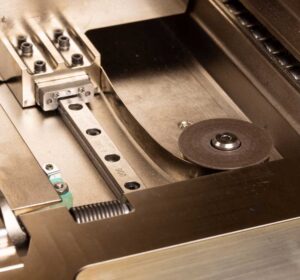

Canisterized Satellite Dispenser (CSD)
Planetary Systems Corp (Rocket Lab)
Non-pyrotechnic, fully encapsulated CubeSat/small-satellite dispenser available in 3U, 6U, and 12U sizes with 100% mission success.
Typed specifications68 values
Discloses 11 of 17 fields engineers filter by in this category (category median 3).
- Capacity
- 12 U 12U · datasheet p.9 3 U 3U | 6 U 6U
- Mass
- 5.65 kg 12U, empty ±3% · datasheet p.9 3.32 kg 3U, empty ±3% | 4.5 kg 6U, empty ±3% | 5.65 kg min · 12U, Empty. ±3% | 3.32 kg min · 3U, Empty. ±3% +1
- Envelope (L×W×H)
- 3U, 6U, 12U product page Height +Y 270.26–270.76 mm, Width ±X 263.02–263.53 mm 12U | Height +Y 157.15–157.66 mm, Width ±X 134.24–134.75 mm 3U | Height +Y 157.15–157.66 mm, Width ±X 263.02–263.53 mm 6U
- Separation velocity
- 1 m/s product page
- Actuator
- motor datasheet p.1 motor door initiator is a DC brush motor | non-pyro There are no pyrotechnics
- Cycles / reuses
- 50 Allowable number of door closures by customer before refurbis… · datasheet p.9
- Supply voltage
- 22 V min · Power to pins 1 & 2, return from pins 3 & 4 Open Door · datasheet p.9 34 V max · Power to pins 1 & 2, return from pins 3 & 4 Open Door
- Operating temperature
- -34 °C min · Qualification limits · datasheet p.9 80 °C max · Qualification limits | -34–80 °C qualification limits
- TRL
- 9 Technology Readiness Level (TRL) 9 · datasheet p.3
- Deployer type
- tube (P-POD type) datasheet p.1 canisterized (CSD or tab rails) Canisterized Satellite Dispenser, preloaded payload tabs
- Accepted satellite form factors
- 3U datasheet p.9 6U | 12U
- Satellites per form factor
- 7 3U · datasheet p.3
- Rail and interface standard
- CDS rev.14 datasheet p.2 custom payload specification 2002367 Rev F (and prior revisions C, D… | CDS rev.13 | custom
- Tip-off rate
- <10 datasheet p.9 10 °/s max · payload rotation rates per axis, after payload is fully eject…
- Launch vehicle interface
- P-Pod Compatible Mounting Interface; six mountable sides datasheet p.1 standard mounting face -Y (qualified faces: 3U -Y; 6U -Y & -Z; 12U -Y & -Z); PSC typically uses 22x (11x per side) .190-32 UNF socket head cap screws torqued 50 in·lb
- Release command type
- voltage pulse DC brush motor door initiator powered from the launch vehicle · datasheet p.9 voltage pulse Power to pins 1 & 2, return from pins 3 & 4
- Release actuator voltage
- 22 V min · datasheet p.9 34 V max | 22–34 V Power to pins 1 & 2, return from pins 3 & 4 | 22–34 V Voltage provided from launch vehicle to open door
- Command pulse duration
- 200 ms motor powered duration in typical initiation profile (PSC typ… · datasheet p.16 500 ms LV may leave power on up to .5 s after door limit switch opens | 16 ms time to initiate (open door), +.034/-.006 s, -45 to +90 °C, <…
- Connector
- optional Separation Electrical Connector, custom PSC in-flight disconnect (IFD) with 15 pins datasheet p.14
- Survival temperature
- -50 °C min · Qualification limits · datasheet p.9 90 °C max · Qualification limits | -50–90 °C qualification limits
- Random vibration
- 10 g RMS acceptance (flight), 60 s/axis · datasheet p.20 14.1 g RMS qualification / proto-flight (Figure 12-4 +3 dB), 180 s/axis
- Flight heritage
- Attained TRL 9 with flight heritage in 2013. datasheet p.1 A 3U CSD flew aboard the inaugural Falcon 9 v1.1 flight on September 2013 and released the 7-piece POPACS payload in orbit.
- Satellite class
- CubeSat datasheet p.1
- Missions flown
- 1 datasheet p.3
- Release command (as printed)
- 22 to 34 Vdc from launch vehicle to open door; power to pins 1 & 2, return from pins 3 & 4 datasheet p.9
- Release current
- .10 to 1.5 Continuous · datasheet p.9 0.1 A min · Continuous | 1.7 A min · Peak | 1.5 A max · Continuous | 4.9 A max · Peak +3
- Release sequencing
- individually commanded datasheet p.9
- Launch vehicles
- Falcon 9 inaugural Falcon 9 v1.1 flight, September 2013 · datasheet p.3
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier13 lines, in the manufacturer's own wording
- Sizes available
- 3U, 6U, 12U
- Mass capability
- ~2 kg per U
- Deployment mechanism
- Non-pyrotechnic, fully encapsulated canister
- Mounting
- Array of mount points, mountable to any face
- Flight heritage
- 100% mission success across flight history
- Mass
- 3.32 kg
- Height
- 157.15 mm
- Width
- 134.24 mm
- X-Axis Mass Moment of Inertia
- 0.067 kg*m2
- Y-Axis Mass Moment of Inertia
- 0.065 kg*m2
- Z-Axis Mass Moment of Inertia
- 0.018 kg*m2
- Door's X-Axis Mass Moment of Inertia
- 6.7E-4 kg*m2
- Quantity of Ejection Springs
- 1
About
The Canisterized Satellite Dispenser (CSD) is Planetary Systems Corporation’s reliable, testable, and cost-effective deployment mechanism for small secondary and tertiary satellite payloads. Unlike open rail-style deployers, the CSD fully encapsulates the payload during launch, providing privacy and mission assurance for both the primary payload and the launch vehicle. It is easy to load, integrate, and operate, requires no consumables, and allows the payload to be stowed, ejected, and re-stowed in seconds during integration and testing. The CSD offers the largest internal volume in its class, leaving more room for solar panels and other deployables, and its array of mount points allows mounting to any face, reducing interface structure mass and enabling dense payload packaging on the launch vehicle. It is available in 3U, 6U, and 12U sizes with roughly 2 kg-per-U mass capability, and has been used to deploy CubeSats including the POPACS mission.
Documentation
- 2002337F-CSD-Data-Sheet.pdf PDF source: web.archive.org ↗
- 2002367F-Payload-Spec-for-3U-6U-12U.pdf PDF source: web.archive.org ↗
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
