Pluggable Processor Module D2 (PPM D2)
Pumpkin, Inc.
Flight-qualified, space-proven CubeSat Kit processor module for the Motherboard Module (MBM), built around a soldered Microchip dsPIC33FJ256GP710 Digital Signal Controller.
Typed specifications42 values
Discloses 10 of 13 fields engineers filter by in this category (category median 5).
- Processor
- Microchip® dsPIC33FJ256GP710 16-bit digital signal controller (DSC), CPU with MCU and DSP capabilities datasheet p.1
- Mass
- 17 g typ · datasheet p.4
- CPU clock
- 80 MHz datasheet p.1 80 MHz max · Up to 40MIPS @ 80MHz
- Envelope (L×W×H)
- 89.5 x 54.6 mm datasheet p.4 54.6 x 89.5 x 1.6 mm (medium-size PPM PCB) PCB width x length x thickness
- RAM
- 0.25 MB product page 0.029 MB on-chip SRAM | 30 720 MB
- Mass storage
- 256 GB product page 0.063 GB AT25DF641 SPI serial Flash memory, off-chip storage
- Operating system
- Salvo compatible with Pumpkin's Salvo RTOS · datasheet p.1
- Supply voltage
- 5 V nom. · +5V_SYS bus · datasheet p.3 5 V nom. · +5V_USB bus | 3.3 V nom. · SD Card Voltage | 3.3 V nom. · VCC operating voltage, typ
- Power consumption
- 0.099 W Typical operation · datasheet p.5
- Data interface
- CAN 2 ECANs · datasheet p.1 I2C 2 I2Cs | SPI 2 SPIs | UART 2 UARTs | other Data Converter Interface (DCI) module +5
- Operating temperature
- -40–85 °C absolute maximum ratings, TA · datasheet p.3
- Processor architecture
- DSP dsPIC33FJ256GP710 digital signal controller (DSC), CPU with M… · datasheet p.1
- Board format
- CubeSat Kit bus pluggable module for the CubeSat Kit; connects to the CubeSat… · datasheet p.1
- Flight software support
- Pumpkin's Salvo™ RTOS and HCC-Embedded's EFFS-THIN SD Card FAT file system datasheet p.1
- Radiation and fault mitigation
- other independent external reset supervisor (POR/BOR) · datasheet p.1 latch-up protection (current limiting) independent latchup (device overcurrent) protection; overcurr… | hardware watchdog RTCC, WDT, ICD, JTAG (integrated peripheral) | other Independent external reset supervisor (POR/BOR)
- Connector
- PPM connector H1, LSS-150-01-L-DV datasheet p.7
- Satellite class
- CubeSat CubeSat nanosatellite control, C&DH, TT&C · datasheet p.1
- GPIO lines
- 48 connections to all 48 I/O pins of the PPM connector · datasheet p.6
- Performance
- 40 DMIPS max · Up to 40MIPS @ 80MHz · datasheet p.1
- RAM type
- SRAM on-chip SRAM · datasheet p.1
- Program / boot memory
- 0.25 MB program memory · datasheet p.1
- Analog inputs
- 32 32-channel 10/12-bit 1.1Msps/500ksps ADC · datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier11 lines, in the manufacturer's own wording
- SKU
- 710-00528
- Price
- $655.00 per item
- Hardware classification
- Flight Hardware | Flight Qualified | Space Proven
- Processor
- Microchip dsPIC33FJ256GP710 (16-bit DSC, soldered)
- Internal flash memory
- 256 KB
- Internal ram
- 30,720 B
- Max clock speed
- 20 MIPS
- External crystal
- 8 MHz
- On-board flash memory
- AT25DF641 64 Mbit SPI serial Flash
- Used with
- Motherboard Module (MBM)
- Electrically identical to
- PSPM D (with dsPIC33FJ256GP710)
About

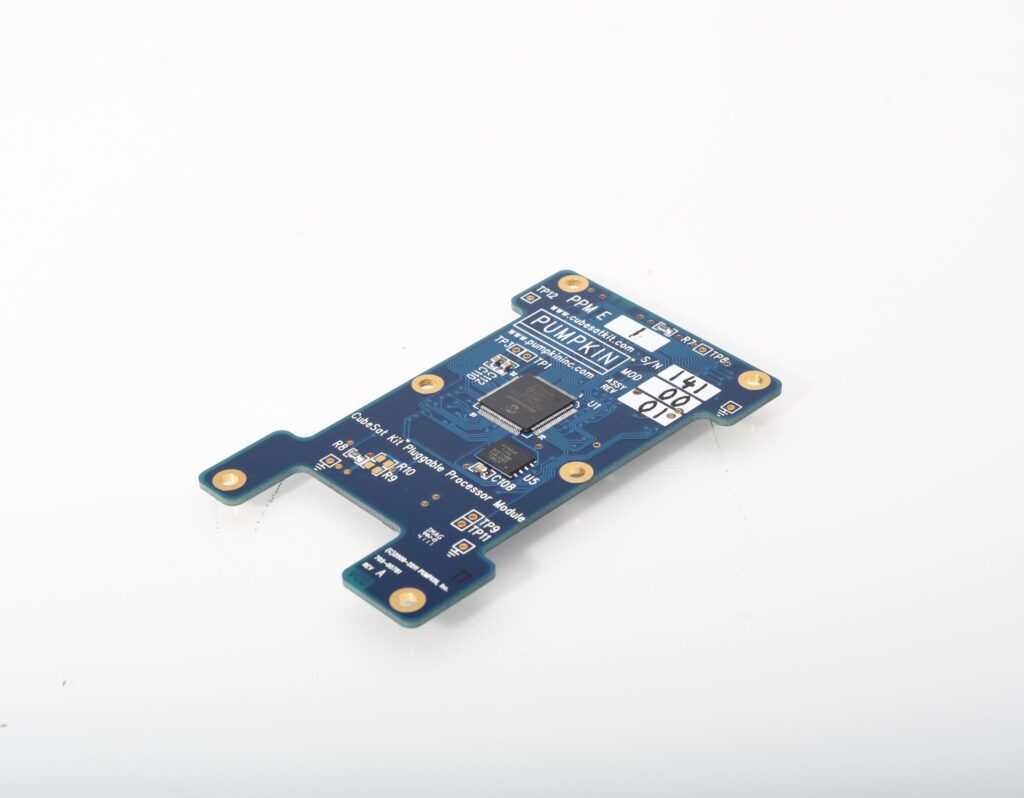

PPM D2 is a pluggable processor module (PPM) for use with the CubeSat-compatible Motherboard Module (MBM). This is flight hardware (blue). By adding a PPM D2 to an MBM, the user creates a CubeSat-compatible Command & Data Handling (C&DH) module built around a Microchip dsPIC33FJ256GP710 16-bit low-power Digital Signal Controller (DSC) with built-in DSP instructions. PPM D2 has a dsPIC33FJ256GP710 with 256 KB internal Flash memory and 30,720 B internal RAM, and enables up to 20 MIPS operation via its 8 MHz external crystal. PPM D2 also has an on-board, external AT25DF641 64 Mbit SPI serial Flash memory chip.
Each unit includes a fully tested PPM D2 with a Microchip dsPIC33FJ256GP710 soldered in place. PPM D2 is part of the CubeSat Kit flight hardware line and plugs into a Motherboard Module (MBM); it is used on flight hardware to run fully debugged dsPIC33 software and to control fully debugged hardware on the CubeSat Kit. PPM D2 is electrically identical to PSPM D, so software developed on PSPM D will run identically on PPM D2 in a flight environment.
Compatibility: Motherboard Module (MBM), Development Board (DB), JFPC-PIC24, Microchip dsPIC33FJ256GP710. PPM D2 is compatible with the MBM (and DB) but not compatible with the newer MBM 2.
PPM D2 is included in: the CubeSat Kit /dsPIC33 (PSPM D + PPM D2) and the CubeSat Kit Upgrade to dsPIC33 (PSPM D + PPM D2). It carries Flight Hardware, Flight Qualified, and Space Proven classifications, indicating flight heritage.
Purchasing restrictions: prospective customers must purchase an entire CubeSat Kit first before purchasing additional PPM D2s a la carte; it is available only to customers who have already purchased a CubeSat Kit /dsPIC33, with proof of prior purchase required.
