ROSA — Roll-Out Solar Array
Roccor (Redwire)
The Roll-Out Solar Array (ROSA) is Redwire’s flagship solar power product, a flexible, rollable photovoltaic array that deploys on-orbit via stored strain energy in its composite boom structure — requiring no motors, pyrotechnics, or complex mechanisms. First demonstrated on the International Space Station in 2017, ROSA and its iROSA derivative have achieved a 100% on-orbit […]
Typed specifications33 values
Discloses 4 of 12 fields engineers filter by in this category (category median 3).
- Mass
- 36 000 g DIAMOND wing configuration · datasheet p.1 42 700 g OPAL wing configuration | 521 000 g PHENACITE wing configuration | 160 000 g SAPPHIRE wing configuration | 331 000 g SUNSTONE wing configuration +6
- Output power (BOL)
- 3.3 W DIAMOND wing configuration · datasheet p.1 5.3 W OPAL wing configuration | 37 W PHENACITE wing configuration | 12.9 W SAPPHIRE wing configuration | 28 W SUNSTONE wing configuration +1
- Form factor (as printed)
- deployed wing datasheet p.2
- Deployable
- yes datasheet p.1
- Supply voltage
- 12 V min · datasheet p.4 300 V max | 12–300 V can operate from 12V to >300V
- Array configuration
- roll-out array rollable configuration, roll-up stowed · datasheet p.1
- Flight heritage
- Flight heritage on key NASA programs, including DART and ISS; heritage on LEO, GEO and deep space missions datasheet p.1 DART and ISS
- Deployed size
- deployed length 8.6 m, stowed width 2.32 m DIAMOND wing configuration · datasheet p.1 deployed length 12.6 m, stowed width 2.67 m OPAL wing configuration | deployed length 18.5 m, stowed width 4.94 m PHENACITE wing configuration | deployed length 21.2 m, stowed width 3.35 m SAPPHIRE wing configuration | deployed length 19.4 m, stowed width 3.1 m SUNSTONE wing configuration +1
- Deployment mechanism (as printed)
- strain-energy composite booms, roll-up stowed configuration, no motors or complex mechanisms; booms become the array primary structure when deployed datasheet p.1
- Hinge type
- strain energy (no hinge) composite booms use strain energy; no motors or complex mecha… · datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier11 lines, in the manufacturer's own wording
- Rosa diamond
- BOL power 3.3 kW; mass 36 kg; deployed length 8.6 m; stowed width 2.32 m
- Rosa opal
- BOL power 5.3 kW; mass 42.7 kg; deployed length 12.6 m; stowed width 2.67 m
- Rosa sapphire
- BOL power 12.9 kW; mass 160 kg; deployed length 21.2 m; stowed width 3.35 m
- Rosa tanzanite
- BOL power 17.6 kW; mass 180 kg; deployed length 24.8 m; stowed width 4.15 m
- Rosa sunstone
- BOL power 28 kW; mass 331 kg; deployed length 19.4 m; stowed width 3.1 m
- Rosa phenacite
- BOL power 37 kW; mass 521 kg; deployed length 18.5 m; stowed width 4.94 m
- Bus voltage range
- 12 V to >300 V (configurable)
- Deployment mechanism
- Stored strain energy in composite boom (no motors required)
- Array wings
- Optional retractable configuration available
- On-orbit success rate
- 100% across all deployed missions
- Flight heritage
- ISS iROSA (4 pairs delivered), NASA DART, Lunar Gateway PPE (contracted)
About

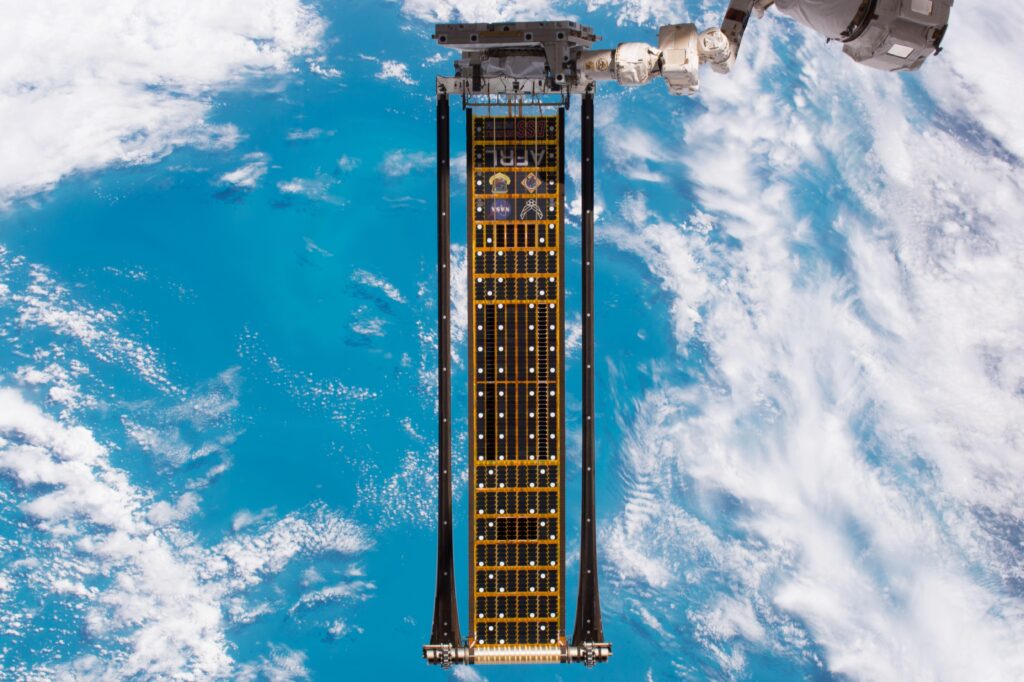

The Roll-Out Solar Array (ROSA) is Redwire’s flagship solar power product, a flexible, rollable photovoltaic array that deploys on-orbit via stored strain energy in its composite boom structure — requiring no motors, pyrotechnics, or complex mechanisms. First demonstrated on the International Space Station in 2017, ROSA and its iROSA derivative have achieved a 100% on-orbit deployment success rate across all ISS upgrades, NASA’s DART asteroid-redirect mission, and contracts for the Lunar Gateway Power and Propulsion Element. The architecture uses modular photovoltaic blankets assembled onto rollable composite booms, enabling the array to stow into a compact cylinder for launch and deploy to full span without human or mechanical assistance. Six ROSA configurations span the commercial and government power envelope: Diamond (3.3 kW / 36 kg), Opal (5.3 kW / 42.7 kg), Sapphire (12.9 kW / 160 kg), Tanzanite (17.6 kW / 180 kg), SunStone (28 kW / 331 kg), and Phenacite (37 kW / 521 kg). Bus voltage is configurable from 12 V to over 300 V. Optional retractable wings support on-orbit reconfiguration. ROSA is also the basis for Redwire’s ELSA (Extensible Low-Profile Solar Array) announced in 2024, targeting higher mass-specific power for next-generation applications. Redwire (incorporating the former Deployable Space Systems / DSS and Roccor technologies) has delivered four pairs of iROSA wings to the ISS, each extending operating life by powering the station’s expanded crew and science complement.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
