ROSA Roll-Out Solar Array
Redwire Corporation
Redwire Corporation is a US space infrastructure and manufacturing company formed from the merger of multiple space companies including DSS (Deployable Space Systems, the inventor of ROSA), Made In Space, LoadPath, and Roccor. Redwire’s flagship product is the ROSA (Roll-Out Solar Array) — a flexible, compactly stowable solar array that deploys to a large, rigid […]
Typed specifications46 values
Discloses 4 of 12 fields engineers filter by in this category (category median 3).
- Mass
- 36 000 g DIAMOND configuration · datasheet p.2 36 000 g DIAMOND wing configuration | 42 700 g OPAL configuration | 42 700 g OPAL wing configuration | 521 000 g PHENACITE configuration +12
- Output power (BOL)
- 3.3 W DIAMOND wing configuration, per wing · datasheet p.1 5.3 W OPAL wing configuration, per wing | 37 W PHENACITE wing configuration, per wing | 12.9 W SAPPHIRE wing configuration, per wing | 28 W SUNSTONE wing configuration, per wing +1
- Form factor (as printed)
- deployed wing datasheet p.2 deployed wing | deployed wing | deployed wing | deployed wing +1
- Deployable
- yes datasheet p.1
- Supply voltage
- 12 V min · datasheet p.2 300 V max
- Array configuration
- roll-out array datasheet p.1
- Flight heritage
- Flight heritage on LEO, GEO and deep space missions; NASA programs including DART and ISS; 8 SUNSTONE ROSA wings delivered to NASA for ISS datasheet p.1
- Missions flown
- 8 datasheet p.0
- Deployed size
- deployed length 8.6 m DIAMOND wing configuration (stowed width 2.32 m) · datasheet p.1 deployed length 12.6 m OPAL wing configuration (stowed width 2.67 m) | deployed length 18.5 m PHENACITE wing configuration (stowed width 4.94 m) | deployed length 21.2 m SAPPHIRE wing configuration (stowed width 3.35 m) | deployed length 19.4 m SUNSTONE wing configuration (stowed width 3.1 m) +1
- Deployment mechanism (as printed)
- strain-energy composite booms (roll-out), no motors or complex mechanisms; optional retractable solar wings datasheet p.1 proprietary roll-up stowed configuration | Integrated Modular Photovoltaic Blanket Assembly (IMBA) | no motors or complex mechanisms are required
- Hinge type
- strain energy (no hinge) composite booms utilize strain energy for deployment; no motors · datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
About

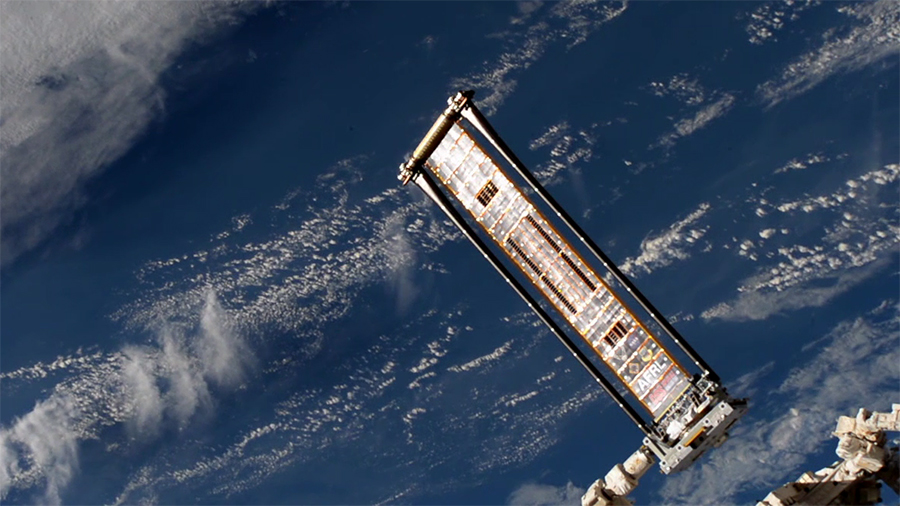

Redwire Corporation is a US space infrastructure and manufacturing company formed from the merger of multiple space companies including DSS (Deployable Space Systems, the inventor of ROSA), Made In Space, LoadPath, and Roccor. Redwire’s flagship product is the ROSA (Roll-Out Solar Array) — a flexible, compactly stowable solar array that deploys to a large, rigid power-generating structure on-orbit. ROSA was successfully demonstrated on the International Space Station in June 2017 (ISS Expedition 52), where it was attached to the station’s robotic arm and deployed to full extension. A scaled-up version called iROSA (ISS Roll-Out Solar Arrays) was installed on the ISS starting in June 2021 to upgrade the station’s electrical power — six iROSA arrays together add 30 kW of additional power to the ISS. The ROSA architecture won a NASA contract for the iROSA program, and a similar technology underlies the Solar Array Wing on NASA’s Lunar Gateway power element (built by Maxar/Deployable Space Systems). Redwire is headquartered in Jacksonville, Florida, and also manufactures semiconductor crystals, in-space bioprinted tissue, and deployable booms for satellites.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
