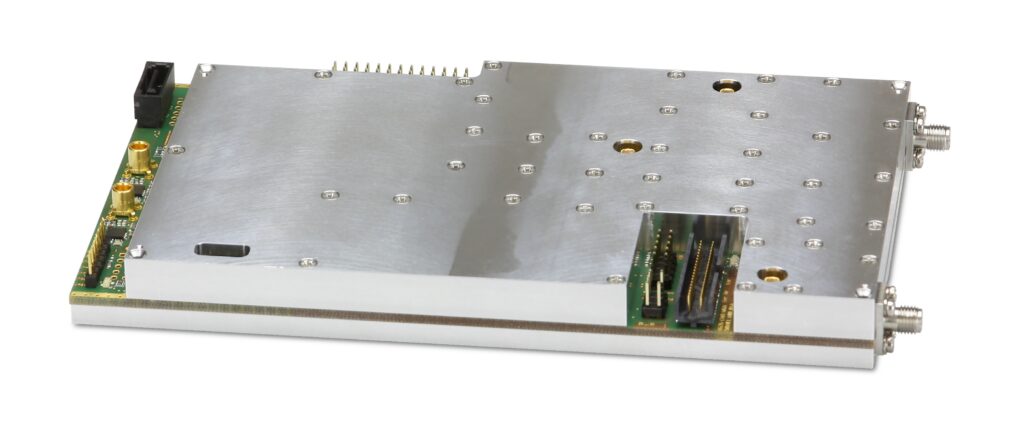

Satellite Modulator OEM Module

Typed specifications82 values

Discloses 8 of 11 fields engineers filter by in this category (category median 6).

Mass

450 000 g

approx · datasheet p.3 450 g approx.

Link protocols and waveforms

DVB-S2X - ETSI EN 302 307-2, DVB-S2 - ETSI EN 302 307-1, DVB-DSNG - ETSI EN 301 210, DVB-S - ETSI EN 300 421

datasheet p.1 other DVB Carrier ID - ETSI TS 103 129  |  other DVB-DSNG - ETSI EN 301 210  |  DVB-S ETSI EN 300 421  |  DVB-S2 ETSI EN 302 307-1  +7

Frequency range

950–2 150 MHz

IF output, L-band · datasheet p.2 50–180 MHz IF output, option V  |  950–2 150 MHz IF-Output Frequency  |  50–180 MHz IF-Output Frequency (option V)

Envelope (L×W×H)

185 x 17 x 100 mm³ (WxHxD)

standard module · datasheet p.3 185 x 25 x 100 mm³ (WxHxD) with cables and/or option EXT  |  185 x 17 x 100 WxHxD, standard module  |  185 x 25 x 100 WxHxD, with cables and/or option EXT

TX RF output power

0.001 W

max · output power, L-band output, 0.1 dB steps · datasheet p.2 0.003 W max · output power, option V output  |  0–0.001 W L-band output  |  0–0.003 W V-Band output

Data rate

213 000 kbps

max per ASI Interface · datasheet p.2 170 000 kbps max, BISS-1/E active  |  3 kbps min · ASI interface  |  213 000 kbps max · ASI interface  |  170 000 kbps max · when BISS-1/E active

Modulation

QPSK / 8PSK / 16QAM

DVB-S and DVB-DSNG · datasheet p.1 BPSK DVB-S/DVB-DSNG inner coding BPSK or QPSK  |  QPSK / 8PSK / 16APSK / 32APSK (normal, short) DVB-S2  |  QPSK / 8PSK / 16APSK / 32APSK / 64APSK / 128APSK / 256APSK (normal, short and linear) DVB-S2X  |  QPSK DVB-S2X modulations  +13

Supply voltage

12–24 V

nominal · datasheet p.3 11–26 V max  |  11–26 V max  |  12–24 V nom.

Power consumption

17 W

Option EXT, typ. · datasheet p.3 14 W Standard, typ.

Data interface

ASI

datasheet p.1 other Dual DVB-ASI-electrical, MCX female 75 Ohm  |  RS-232 monitoring and control, RS232 over 2.54 mm pin header  |  RS232

Operating temperature

-30–60 °C

option EXT, 10 minutes warm up at -30 °C · datasheet p.3 0–50 °C standard

Function

modulator

DVB satellite modulator OEM module · datasheet p.1

Link use

other

DVB satellite uplink modulator for video encoders and fly-awa… · datasheet p.1

Frequency band

L

IF-Output Frequency · datasheet p.2 IF (70/140 MHz) IF-Output Frequency (option V)  |  VHF option V, additional VHF-band output

RF connector

SMA

IF output, SMA female · datasheet p.2 SMA IF-Output Characteristics  |  MCX Transport Stream Inputs

Board format

custom

datasheet p.1

Connector

SMA female

datasheet p.2 2.54mm pin header Mains Power Input  |  2.54 mm pin header Monitoring and Control Interface  |  MCX female Transport Stream Inputs

Survival temperature

-30–80 °C

storage · datasheet p.3

Channel coding (FEC)

convolutional (Viterbi)

DVB-S/DVB-DSNG inner coding, Convolutional K=7 · datasheet p.2 Reed-Solomon DVB-S/DVB-DSNG outer RS 188/204, T=8  |  other Pragmatic Trellis (8PSK, 16QAM)

Duplex

simplex

modulator (transmit only) · datasheet p.1

Encryption

other

BISS-E scrambling (EBU Tech 3292) · datasheet p.1 other optional BISS-E encryption (option BI)

Data interface speed

213 Mbps

max · per ASI interface · datasheet p.1

Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer. Report a wrong value
