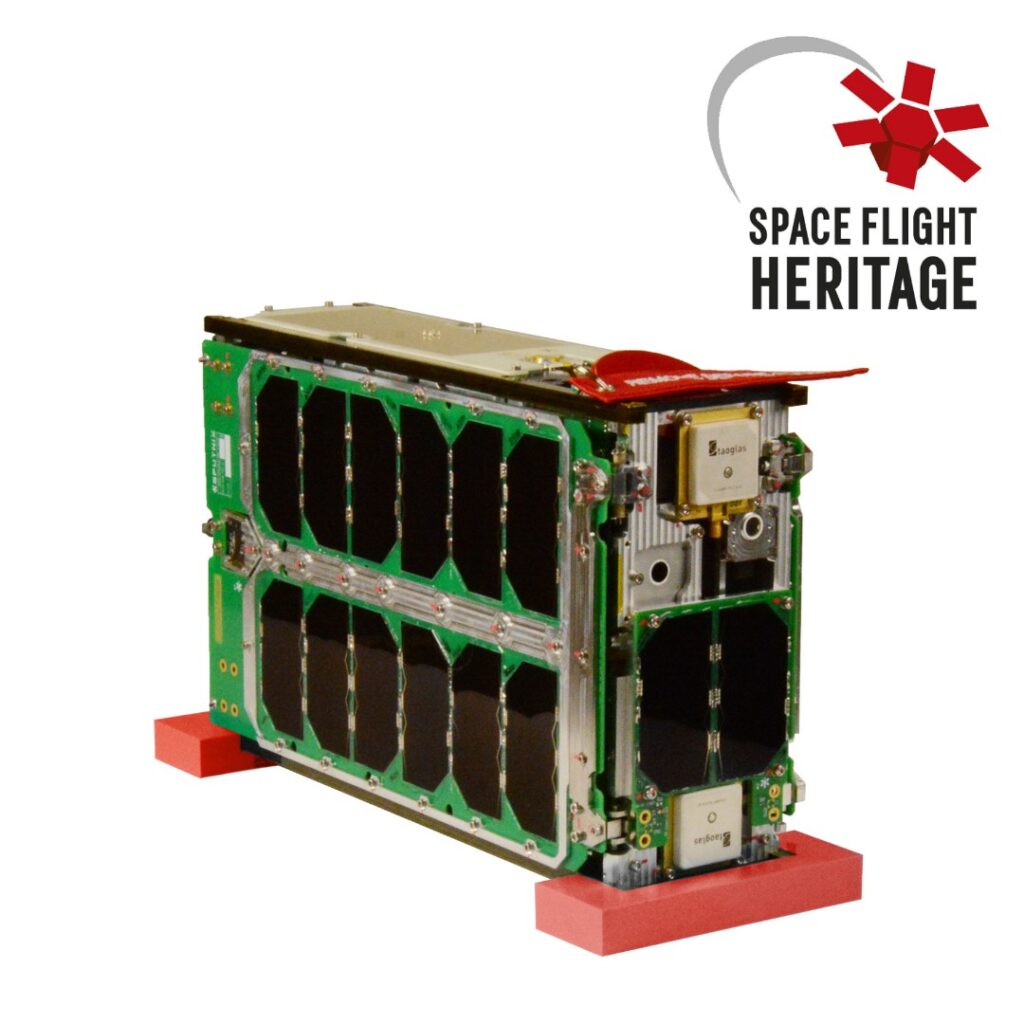

Satellite platform SXC6 modification “Basic”
SPUTNIX
The simplest configuration of the SXC6 6U CubeSat platform, offering only basic service systems (power, UHF comms, electromagnetic damping) to maximize available payload volume.
Typed specifications34 values
Discloses 5 of 7 fields engineers filter by in this category (category median 3).
- Mass
- 6 kg max · mass assembled, w/o payload, not more than · datasheet p.6
- Envelope (L×W×H)
- 100 x 226.3 x 366 dimensions at rails, deployment system pressed · datasheet p.6
- Power consumption
- 4.5 W product page 60 W
- Data interface
- CAN on-board interface CAN2.0 B · datasheet p.6
- Operating temperature
- -30–60 °C datasheet p.6
- Form factor
- 6U CubeSat 6U · datasheet p.2
- Orbit
- LEO payload power and solar panel figures are specified on LEO · datasheet p.6
- Max payload mass
- 6 kg max · max mass of payload, up to (Table 1 platform comparison) · datasheet p.2
- Payload volume, U
- 3 U min · 3U+, available volume for payload not less than · datasheet p.6
- Payload envelope (L × W × H)
- 85 x 85 x 300 3U+ available volume for payload (Table 1) · datasheet p.2
- Power available to payload
- 8 W max · average power available to payload on LEO, Sun orientation us… · datasheet p.6 25 W max · peak (max available capacity of payload, up to; Table 1)
- Regulated voltages for the payload
- 5 V output voltage 5 V ±0.5 V, output current not more than 3 A · datasheet p.6
- Power generation (orbit average)
- 35 W min · peak on LEO, not less than; row is printed as 'Peak capacity … · datasheet p.6
- Battery capacity
- 79 Wh min · not less than; battery type Li-Ion 2S 5000 mAh, rated voltage… · datasheet p.6
- Attitude control
- 3-axis stabilised three-axis w/ reaction wheels, star tracker, magnetometer, an… · datasheet p.2
- Pointing accuracy
- 0.1 ° orientation control accuracy on sunny and shadow side, up to … · datasheet p.6
- Payload data downlink rate
- 57.6 kbps max · UHF command/telemetry link, AX.25 FEC; 9600 bit/s default · datasheet p.6 10 000 kbps max · X-band downlink, DVB-S2, up to
- Radio band
- UHF command radio link 435-437 MHz (amateur) or 400-401 MHz (comm… · datasheet p.6 X X-band 10.3-10.55 GHz (amateur) or 8.0-8.4 GHz (commercial), …
- Subsystems included
- solar arrays deployable solar panels, included · datasheet p.2 GNSS receiver GPS-receiver, included | X-band downlink high-speed X-band radio link, included | battery Li-Ion 2S 5000 mAh, not less than 79 Wh | EPS regulated output voltage 5 V ±0.5 V / 3 A for payload +2
- Max satellite wet mass
- 12 kg max · max mass allowed w/ payload, not more than (Table 4); Table 1… · datasheet p.6
- Deployables
- hinges for solar wings deployable solar panels included · datasheet p.2
- Deployables (as printed)
- Deployable solar panels (included) datasheet p.2
- Satellite class
- CubeSat CubeSat nanosatellite platform line · datasheet p.2
- Form factor, U (number)
- 6 U CubeSat 6U · datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier20 lines, in the manufacturer's own wording
- Outer dimensions transport mode
- 118.6x228.6x366 mm
- Rail dimensions
- 100+-0.15 x 100+-0.15 x 366+-0.5 mm
- Mass (w/o payload)
- 3.4 kg
- Maximum mass
- 12 kg
- Power supply voltage
- 5+-0.5 V
- Power consumption
- 3 A
- Operating temperature range
- -30...+60 C
- Battery type
- Li-Ion 2S
- Battery capacity
- 78 Wh
- Onboard bus voltage
- 6.0-8.4 V (7.4 nominal)
- Peak power per solar panel
- not less than 15 W
- Service radio frequency
- 435-438 or 400-401 MHz
- Transmitter power
- not less than 30 dBm
- Receiver sensitivity
- not worse than -113 dBm
- Data rate
- 2400-57600 bps
- ADCS algorithms
- B-DOT
- Onboard interface
- CAN2.0B, SPUTNIX UniCAN
- Average payload power per orbit
- 4.5 W
- Maximum payload power
- 60 W
- Payload volume
- 5U
About
The SXC6 platform is a multipurpose, combinable set of onboard service systems and structural elements for a 6U CubeSat, compatible with any payload conforming to the SXC6 ICD. The “Basic” (SXC6-VOL) modification is the simplest configuration, with minimal service systems maximizing payload volume: power supply system with battery, UHF transceiver with patch and deployable dipole antennas, and an electromagnetic angular-velocity-damping system. Supplied: assembled SXC6 platform, transportation case, USB cable, charger.
