SRU-2
Satlab A/S

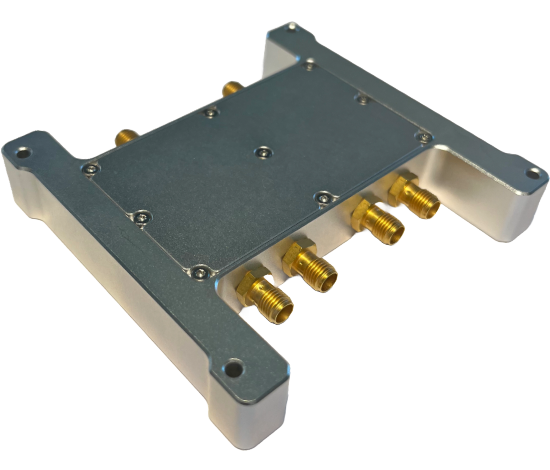

The Satlab SRU-2 is a passive S-band splitter and combiner module designed for use at ITU space operations S-band frequencies, featuring two independent Wilkinson divider/combiner paths.
Key figurescomparable across the catalogue
- Mass
- 0.181 kg
- Power
- 5 W
- Largest dimension
- 93 mm
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Frequency range on both paths
- 2000 to 2500 MHz
- Insertion loss
- Typ. 0.2 dB
- Power handling
- 5 W
- Operating temperature
- -40℃ to +85℃
- Dimensions
- 87.2 × 93.0 × 15.7 mm
- Mass
- 181 g
- Frequency
- 2000 to 2500 MHz
- Storage temperature
- -40 to 85 °C
- DC current
- 200 mA/port
- Insertion loss above 3 dB
- 0.2 dB
- Isolation port 1-2
- 20 dB
- Isolation Rx - Tx path
- 70 dB
- Phase unbalance
- 2 deg
About
The Satlab SRU-2 is a passive S-band splitter and combiner module specifically engineered for applications within the ITU space operations S-band frequencies. Its core functionality is achieved through the implementation of two independent Wilkinson divider/combiner paths, allowing it to efficiently split or combine S-band signals. This module is built to operate across a frequency range of 2000 to 2500 MHz, with a typical insertion loss of only 0.2 dB, ensuring minimal signal degradation. It can handle power up to 5 W and is designed for robust performance in extreme conditions, with an operating temperature range from -40℃ to +85℃. The compact dimensions of 87.2 × 93.0 × 15.7 mm and a mass of 181 g make it suitable for integration into various space systems. Satlab also notes that custom hardware and software requests can often be accommodated.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
