Satlab SAS-2 dual S-band patch antenna
Satlab A/S

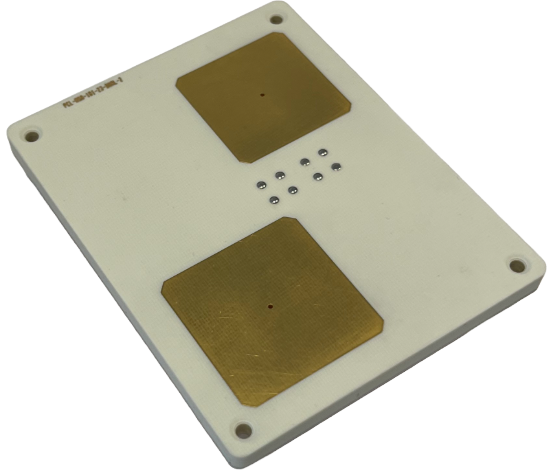

The Satlab SAS-2 is a dual S-band patch antenna designed for space operation frequencies, occupying only 1U of surface area.
Typed specifications25 values
Discloses 7 of 10 fields engineers filter by in this category (category median 3).
- Frequency band
- S datasheet p.1
- Peak gain
- 5.5 dBi Port 1 · datasheet p.1 5.5 dBi Port 1, 2025-2110 MHz, +/-0.3 dBi | 6.1 dBi Port 2 | 6.1 dBi Port 2, 2200-2290 MHz, +/-0.2 dBi
- Mass
- 107 g datasheet p.1 107 g WEIGHT on drawing
- Frequency range
- 2 025–2 110 MHz Port 1 · datasheet p.1 2 200–2 290 MHz Port 2
- Beamwidth (-3 dB)
- 87 ° Port 1 · datasheet p.1 87 ° Port 1, HPBW +/-4° | 85 ° Port 2 | 85 ° Port 2, HPBW +/-4°
- Envelope (L×W×H)
- 80.00 x 75.00 x 6.80 mm datasheet p.1
- Polarization
- RHCP Port 1 · datasheet p.1 RHCP Port 1 and Port 2 | RHCP Port 2
- Antenna type
- patch datasheet p.1 patch S-band dual patch antenna
- RF connector
- SMA Port 1 and Port 2 · datasheet p.1
- Connector
- SMA Port 1 · datasheet p.1 SMA Port 2
- VSWR, max
- 1.5 max · <1.5 : 1 · datasheet p.1
- RF ports
- 2 Port 1 / Port 2 · datasheet p.1
- Mounting
- 4x Countersunk diameter 3.2 datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier8 lines, in the manufacturer's own wording
- Frequency range rx
- 2025 to 2110 MHz
- Gain rx
- 5.5 ± 0.3 dBi
- Hpbw rx
- 87° ± 4°
- Frequency range tx
- 2200 to 2290 MHz
- Gain tx
- 6.1 ± 0.2 dBi
- Hpbw tx
- 85° ± 4°
- Dimensions
- 100.0 × 80.0 × 6.8 mm
- Mass
- 107 g
About
The Satlab SAS-2 dual S-band patch antenna is engineered for operation within the ITU-designated space operation S-band frequencies. It is designed to take up only 1U of surface area, making it suitable for compact satellite platforms. The antenna supports both reception (RX) and transmission (TX) within specific frequency ranges. For reception, it operates from 2025 to 2110 MHz with a gain of 5.5 ± 0.3 dBi and a Half Power Beamwidth (HPBW) of 87° ± 4°. For transmission, it operates from 2200 to 2290 MHz with a gain of 6.1 ± 0.2 dBi and an HPBW of 85° ± 4°. The antenna has compact dimensions of 100.0 × 80.0 × 6.8 mm and a mass of 107 g. The manufacturer also notes that custom hardware and software requests can often be accommodated.
