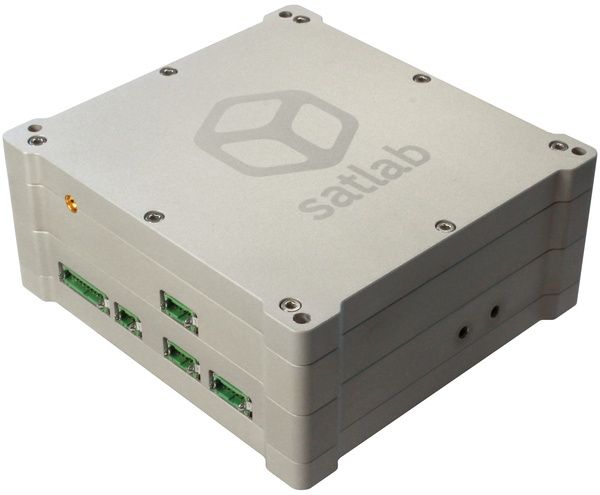

Satlab VTRX
Satlab A/S
The Satlab VTRX is a half-duplex VDES/VDE-SAT transceiver compliant with ITU-R M.2092-1, designed for nano- and microsatellites in low Earth orbit.
Typed specifications5 values
Discloses 1 of 13 fields engineers filter by in this category (category median 3).
- Mass
- 420 g product page
- Envelope (L×W×H)
- 93.0 mm × 87.2 mm × 39.7 mm product page
- Supply voltage
- 11 V product page
- TRL
- 9 product page
- Flight heritage
- since 2023 product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier17 lines, in the manufacturer's own wording
- Parameter
- Specification
- Transmitter frequency
- 157.1875 MHz to 157.3375 MHz (lower leg) 161.7875 MHz to 161.9375 MHz (upper leg)
- Transmitter channels
- 2
- Transmitter power
- 20 dBm per channel (nominal, adjustable)
- Transmitter link ids
- 26, 32, 33
- Receiver frequency
- 157.1875 MHz to 157.3375 MHz (lower leg) 161.7875 MHz to 161.9375 MHz (upper leg) 156 MHz to 162.025 MHz (spectrum capture)
- Receiver channels
- 2
- Receiver sensitivity
- -134 dBm (Link ID 20, <1% PER)
- Receiver link ids
- 20, 21, 22
- Supply voltage
- 11 V to 18 V
- Typical power consumption (12 V input, 20℃, 2 channels)
- RX: 7 W TX: 11 W
- Operating temperature
- Nominal: -20℃ to +50℃ Extended: -40℃ to +70℃ Non-op: -40℃ to +85℃
- Dimensions
- 93.0 mm × 87.2 mm × 39.7 mm
- Mass
- 420 g
- Timing input
- NMEA 0183 and PPS (3.3 V differential)
- Flight heritage
- since 2023
- TRL
- 9
About
The Satlab VTRX is a half-duplex VDES/VDE-SAT transceiver specifically designed for integration on nano- and microsatellites operating in 500-700 km orbits. It is compliant with the ITU-R M.2092-1 standard. The transceiver incorporates a multi-channel modem and a VDE-SAT protocol stack, enabling robust communication capabilities. For precise timing and frequency control, the VTRX requires an external GNSS-receiver with NMEA 0183 and PPS output. The product has a demonstrated reliable flight heritage since 2023 and boasts a Technology Readiness Level (TRL) of 9, indicating it is fully qualified and operational in its intended space environment. Custom hardware and software requests can often be accommodated.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
