Polaris AIS
Satlab A/S

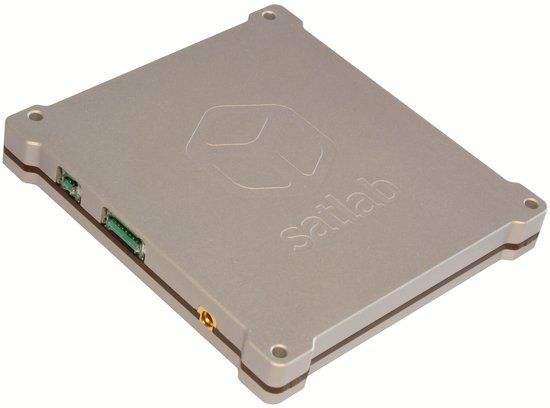

The Satlab Polaris AIS is a self-contained software-defined radio receiver for the maritime VHF band, designed for CubeSats and larger LEO satellites to receive standard and long-range AIS messages.
Typed specifications77 values
Discloses 7 of 9 fields engineers filter by in this category (category median 4).
- Mass
- 185 g datasheet p.1
- Link protocols and waveforms
- AIS Class-A/B messages 1-5 slots incl. type 27 long-range · datasheet p.3 CSP command/control interface | CSP
- Frequency range
- 156.775, 156.825, 161.975, 162.025 MHz datasheet p.1 156.78 MHz AIS channel | 156–162.03 MHz SAW filter / FPGA receive range | 156.83 MHz AIS channel | 161.98 MHz AIS channel +1
- Envelope (L×W×H)
- 87.2 x 93.0 x 12.5 mm datasheet p.1
- Data rate
- 1 000 kbps datasheet p.1 3 000 kbps Full duplex | 100 000 kbps Full duplex
- RX sensitivity
- -121 dBm nom. · AIS, 80 % reception rate, typ · datasheet p.16 -121 dBm 80 % reception rate | -121 dBm 80% reception rate | -120 dBm max · 80% reception rate | -120 dBm max · AIS, 80 % reception rate, max
- Supply voltage
- 4.5 V min · datasheet p.1 40 V max | 4.5–40 V | 4.5–40 V input voltage
- Power consumption
- 1.5 W Typical, 5 V input, 25°C · datasheet p.1 0.185 W Additional power for Ethernet enabled @ VIN 5 V | 0.11 W Additional power for RS-422 enabled @ VIN 5 V | 0.08 W Additional power for SDRAM enabled @ VIN 5 V | 1.82 W VIN 28 V, CAN on, Ethernet off, RS-422 off +5
- Data interface
- CAN datasheet p.1 UART Debug-UART (TTL), EGSE | RS-422 Full duplex | Ethernet full duplex, 100 Mbit/s | RS-422 full duplex, up to 3 Mbit/s +5
- Operating temperature
- -40–85 °C datasheet p.1
- Radiation tolerance (TID)
- 20 krad board level · datasheet p.13
- TRL
- 9 product page
- Function
- receiver SDR receiver, 4-channel AIS · datasheet p.1 digitizer streaming of filtered AIS channels over Ethernet
- Link use
- other AIS, signal reception (AIS, ADS-B, spectrum) · datasheet p.1
- Frequency band
- VHF maritime VHF band · datasheet p.1
- TX chains
- 0 datasheet p.1
- RF connector
- SMP antenna input, Amphenol SMP-MSFD-PCE-1 full detent · datasheet p.14
- RX chains
- 4 4 AIS channels demodulated in parallel · datasheet p.1
- Board format
- PC/104 datasheet p.19 CubeSat Kit bus CubeSat Kit (PC/104) mounting hole layout, enclosure CubeSat …
- Connector
- Harwin Gecko datasheet p.3 Amphenol coaxial SMP
- Survival temperature
- -40 °C datasheet p.15 -40–85 °C storage | 85 °C
- Random vibration
- 14.1 g RMS qualification · datasheet p.13
- Flight heritage
- QubeAIS receiver which has flown on several missions since 2013 datasheet p.3 based on in-orbit experience of predecessor QubeAIS, flown on several missions since 2013 predecessor product
- Satellite class
- CubeSat datasheet p.1 large >500 kg
- TX/RX chains (as printed)
- 4-channel AIS Receiver datasheet p.1
- Max RX input level
- 10 dBm max · RF input power, absolute maximum rating · datasheet p.15
- FPGA / SoC
- Yes datasheet p.6
- Duplex
- simplex receiver only · datasheet p.1
- ADC / DAC resolution
- 16 bit ADC, dual channel · datasheet p.6
- Sample rate
- 25 MSPS ADC · datasheet p.6
- Data interface speed
- 100 Mbps Ethernet · datasheet p.1 1 Mbps max · CAN-bus | 3 Mbps max · RS-422
- Additional power (option)
- 0.185 W Additional power for Ethernet enabled @ VIN 5 V · datasheet p.18 0.11 W Additional power for RS-422 enabled @ VIN 5 V | 0.08 W Additional power for SDRAM enabled @ VIN 5 V
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier21 lines, in the manufacturer's own wording
- Frequency coverage
- 156.000 to 162.025 MHz
- Ais channel frequencies
- 156.775, 156.825, 161.975, 162.025 MHz
- Sensitivity
- -121 dBm (80% reception rate)
- Co-channel rejection
- 7 dB (80% reception rate)
- Time tagging accuracy
- 3.6 µs @ −121 dBm, 1 µs @ −110 dBm
- Frame store capacity
- 261120 frames
- Supply voltage
- 4.5 - 40 V
- Typical power consumption
- 1500 mW (5 V input, 25℃)
- Operating temperature
- -40℃ to +85℃
- CAN-bus
- Up to 1 Mbit/s
- RS-422
- Full duplex, up to 3 Mbit/s
- Ethernet
- Full duplex, 100 Mbit/s
- Primary storage
- 128 MB NOR-flash
- Secondary storage
- 1 GB SLC SD card
- Dimensions
- 87.2 x 93.0 x 12.5 mm
- Mass
- 185 g
- Thermal soak
- -40 to +85℃
- Vibration testing
- 14.1 Grms
- TID
- 20 krad(Si) board level
- TRL
- 9
- Flight heritage
- Since 2019 (Polaris SDR product line), QubeAIS since 2013
About
The Satlab Polaris AIS is a fully self-contained software-defined radio receiver specifically designed for the maritime VHF band. It features integrated demodulators for the reception of both standard and long-range AIS messages. This versatile Software-Defined Radio (SDR) offers excellent performance while adhering to the typical size, weight, and power constraints of CubeSats, and can also serve as an additional payload on larger Low Earth Orbit (LEO) satellites. The Polaris AIS represents Satlab’s second-generation Satellite-AIS receiver, building upon the in-orbit experience gained from the QubeAIS receiver, which has been flying on various missions since 2013. As part of the Polaris SDR product line, it has demonstrated reliable flight heritage since 2019, with over 100 units successfully delivered to customers worldwide for a multitude of space missions. With a Technology Readiness Level (TRL) of 9, the Polaris AIS is fully qualified and operational in its intended environment. Custom hardware and software requests can often be accommodated.
