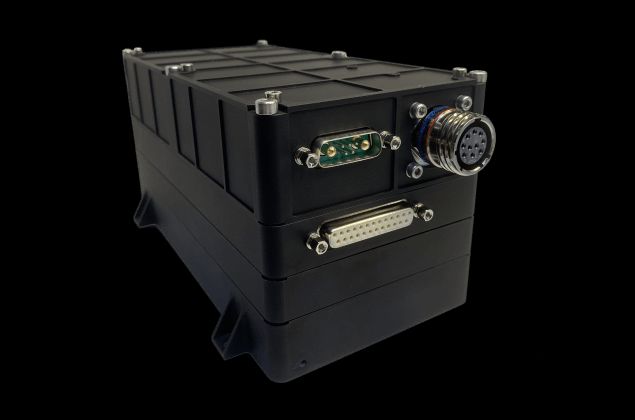

PPU-200 (Power Processing Unit)
Space Electric Thruster Systems (SETS)
The PPU-200 is a power management unit for LEO satellites, designed to supply Hall-effect thrusters in the 80–230 W range and control the Xenon Feed System.
Typed specifications21 values
Discloses 4 of 8 fields engineers filter by in this category (category median 2).
- Propulsion family
- electric supplies Hall-effect thrusters, part of the SPS-25 electric p… · datasheet p.1
- Envelope (L×W×H)
- 218 x 124 x 102 with connectors · datasheet p.2
- Supply voltage
- 28 V nom. · Unregulated · datasheet p.2 26 V min · Input | 26 V min · Unregulated | 36 V max · Input | 36 V max · Unregulated +1
- Power consumption
- 230 W max · Discharge Power Supply · datasheet p.2
- Data interface
- RS-485 datasheet p.2 CAN
- Radiation tolerance (TID)
- 30 krad max · datasheet p.2
- TRL
- 9 datasheet p.2
- Flight heritage
- flight heritage datasheet p.1
- Satellite class
- microsat 10-100 kg LEO satellite applications · datasheet p.1 smallsat 100-500 kg LEO satellite applications | large >500 kg LEO satellite applications
- Missions flown
- flight heritage in orbit · datasheet p.1
- Power processing unit included
- yes datasheet p.0
- PPU output power
- 230 W max · discharge power supply · datasheet p.2
- Discharge (anode) voltage
- 400 V max · discharge power supply output voltage · datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier12 lines, in the manufacturer's own wording
- Power range for hall-effect thrusters
- 80–230 W
- Flight heritage
- Yes
- Anode power supply architecture
- Patented
- Supply voltage
- 26-36 V
- Control Interface
- RS-485, CAN
- Power
- Up to 230 W
- Heater (Xenon)
- 1 channel 12 V (Up to 2 A)
- Solenoid Valve
- Up to 6 channels
- Pressure Transducers
- Up to 6 channels
- TRL
- 9
- Radiation tolerance
- Up to 30 kRad
- Dimensions
- 218 x 124 x 102 mm
About
The PPU-200 (Power Processing Unit) is a power management unit specifically engineered for Low Earth Orbit (LEO) satellite applications. Its primary function is to convert onboard electrical power to efficiently supply Hall-effect thrusters operating within the 80–230 W power range. Beyond power conversion, it also provides crucial control over the Xenon Feed System, making it an integral component of the overall electric propulsion system. The unit boasts flight heritage, demonstrating reliable performance in orbit. A key feature is its patented anode power supply architecture, which ensures stable and efficient operation of the thruster while simultaneously optimizing the entire system’s performance. Designed with an emphasis on mass manufacturing, the PPU-200 is optimized for scalable production and seamless integration into satellite constellations, aiming for low system cost and complexity while maintaining reliable and efficient operation.
