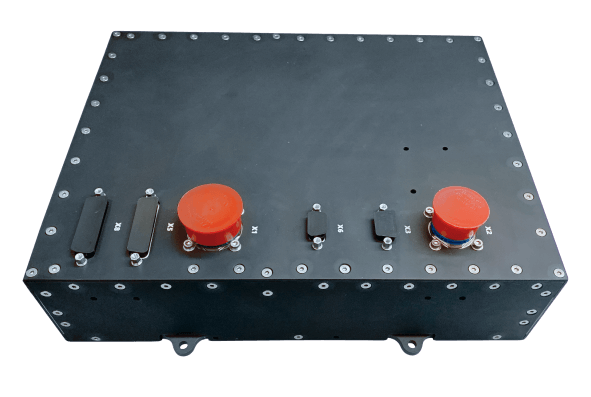

PPU-500 (Power Processing Unit)
Space Electric Thruster Systems (SETS)
The PPU-500 is a power processing unit designed for 500 W class electric propulsion systems, providing efficient and reliable power management for Hall-effect thrusters.
Typed specifications22 values
Discloses 4 of 8 fields engineers filter by in this category (category median 2).
- Propulsion family
- electric datasheet p.1 electric power processing unit for electric propulsion systems in the …
- Supply voltage
- 24–36 V 28V Unregulated, inverter input voltage · datasheet p.2 24–36 V Unregulated
- Power consumption
- 500 W max · Up to · datasheet p.2
- Data interface
- CAN datasheet p.2 Ethernet optional | RS-485
- Operating temperature
- -35–80 °C product page
- Radiation tolerance (TID)
- 30 krad COTS · datasheet p.2 30 krad max · COTS
- TRL
- 9 previous configuration of the PPU-500 launched into orbit in … · datasheet p.2
- Power at thrust
- 500 W max · datasheet p.2
- Flight heritage
- Successful flight heritage datasheet p.1
- Satellite class
- GEO datasheet p.1 microsat 10-100 kg for constellation platforms | smallsat 100-500 kg for constellation platforms | large >500 kg for constellation platforms
- Missions flown
- 1 is the previous configuration of the PPU-500 launched into or… · datasheet p.2
- Power processing unit included
- yes datasheet p.0
- PPU output power
- 500 W max · discharge power supply · datasheet p.2
- Discharge (anode) voltage
- 400 V max · discharge power supply max output voltage · datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier9 lines, in the manufacturer's own wording
- Anode power
- Up to 500 W
- Supply voltage
- 24-36 V
- Operating temperature
- -35 to +80 C
- Efficiency
- Up to 94%
- Power
- Up to 500 W
- Control Interface
- CAN/RS-485, Ethernet (optional)
- Max Output Voltage
- Up to 400 V
- Max Output Current
- Up to 2.0 A
- Radiation tolerance (COTS)
- Up to 30 kRad
About
The PPU-500 is a power processing unit specifically engineered for electric propulsion systems in the 500 W class. Its primary function is to provide efficient and reliable power management for Hall-effect thrusters. The unit is composed of three key subsystems: the thruster power module, the xenon feed system power module, and the main controller. The thruster power module is responsible for converting onboard power into stabilized outputs required for the anode and cathodes of the thruster. The xenon feed system (XFS) power module manages low-voltage supplies for various components associated with xenon flow management, including sensors, heaters, valves, and measurement circuits. The main controller is the brain of the system, executing operating algorithms, managing all power converters and system measurements, and facilitating communication with the onboard computer. This comprehensive design enables fully autonomous and reliable system operation, crucial for demanding space missions.
