SPS-40 Propulsion System
Space Electric Thruster Systems (SETS)
The SPS-40 is a high-efficiency electric propulsion system for a wide range of space missions, offering precise orbit control and high total impulse with minimal propellant consumption.
Typed specifications15 values
Discloses 8 of 11 fields engineers filter by in this category (category median 3).
- Propulsion family
- electric datasheet p.1
- Mass
- 9 kg max · Dry mass (without tank) · datasheet p.1
- Thrust
- 31 mN max · datasheet p.1
- Specific impulse
- 1 650 s max · datasheet p.1
- Total impulse
- 300 000 N·s max · one thruster configuration · datasheet p.1
- Propellant
- Xenon, Krypton datasheet p.1 krypton
- Power consumption
- 300–600 W product page
- TRL
- 9 datasheet p.1
- Thruster technology
- Hall effect Hall-effect thruster ST-40 · datasheet p.1
- Power at thrust
- 300 W min · Total power consumption · datasheet p.1 600 W max · Total power consumption | 300–600 W total power consumption
- Power processing unit included
- yes datasheet p.1
- Dry mass
- 9 kg max · without tank · datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier7 lines, in the manufacturer's own wording
- Total power consumption
- 300-600 W
- Thrust
- Up to 31 mN (0.031 N)
- Dry mass (without tank)
- Up to 9 kg
- Total impulse
- Up to 300 kN*s (one thruster configuration)
- Propellant
- Xenon, Krypton
- Specific impulse
- Up to 1650 s
- TRL Level
- 9
About

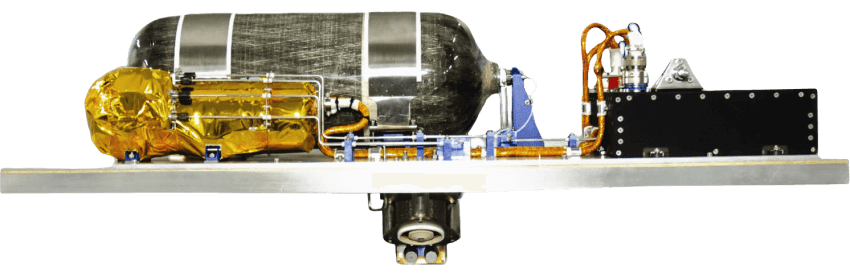

The SPS-40 is a high-efficiency electric propulsion system developed by SETS for a wide range of space missions. It enables precise orbit control and high total impulse with minimal propellant consumption, making it well suited for long-duration operations. The system consists of ST-40 Hall-effect thruster(s), a xenon storage and feed system, and a Power Processing Unit, forming a fully integrated and scalable propulsion solution. Designed for reliability and efficiency, SPS-40 delivers millinewton-class thrust with high specific impulse, helping optimize mission lifetime and overall performance. The ST-40 Hall Thruster, a component of the SPS-40, was designed for use as part of the propulsion system for LEO-GEO satellites, and its mass manufacturing capabilities make it a perfect low-cost solution for satellite constellations.
