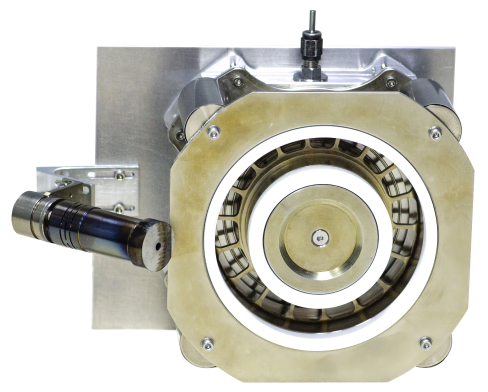

ST-100 Hall Thruster
Space Electric Thruster Systems (SETS)
The ST-100 is a 1.5 kW Hall-Effect Thruster developed by SETS for a wide range of spacecraft applications, offering high parameters, reliability, and a long lifetime.
Typed specifications20 values
Discloses 9 of 10 fields engineers filter by in this category (category median 3).
- Propulsion family
- electric datasheet p.1
- Mass
- 3 kg including two cathodes · datasheet p.1
- Thrust
- 50 mN min · datasheet p.1 95 mN max | 50–95 mN | 95 mN max
- Envelope (L×W×H)
- 215 × 143.5 × 110 datasheet p.1
- Specific impulse
- 1 400 s min · datasheet p.1 1 900 s max | 1 400–1 900 s
- Total impulse
- 3 N·s max · datasheet p.1
- Propellant
- Xenon datasheet p.1 Krypton
- Power consumption
- 800–1 500 W product page
- TRL
- 6 datasheet p.1
- Thruster technology
- Hall effect datasheet p.1
- Power at thrust
- 800 W datasheet p.2 800 W min | 1 500 W max | 800–1 500 W total power consumption
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier10 lines, in the manufacturer's own wording
- Consumption power
- 800-1500 W
- Thrust
- 50-95 mN (0.05-0.095 N), depends on input power
- Specific impulse
- 1400-1900 s
- Efficiency
- Up to 56%
- Propellant
- Xenon, Krypton
- Total Impulse
- Up to 3 MN•s
- Mass
- 3 kg
- Dimensions
- 215 × 143.5 × 110 mm
- Cathode type
- Heated hollow cathode(s)
- TRL Level
- 6
About
The ST-100 is a 1.5 kW Hall-Effect Thruster developed by SETS, dedicated to various spacecraft applications. It provides capabilities for maintaining spacecraft orbit parameters, performing orbital maneuvers, and executing deep space missions. The thruster’s parts are produced using additive manufacturing technologies, which have significantly increased the accuracy of parts manufacturing and ensured an automated production process. Key advantages of the ST-100 Hall Effect Thruster include high parameters, reliability, and a long lifetime, which depends on the input power.
