SIGI Satellite Mission
Reflex Aerospace

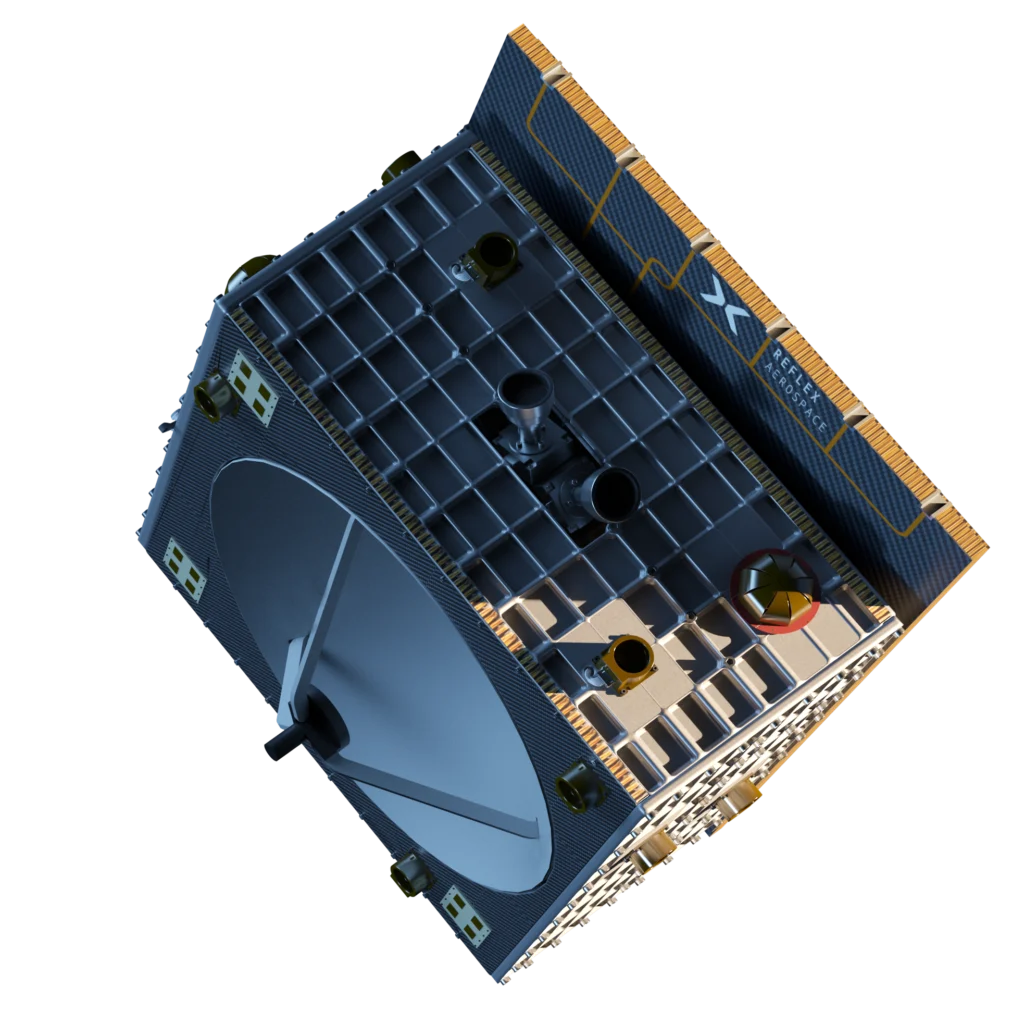

SIGI is a 109 kg remote sensing satellite developed by Reflex Aerospace, showcasing a flight-proven platform for demanding space missions, validated after over a year in orbit.
Typed specifications3 values
Discloses 1 of 11 fields engineers filter by in this category (category median 1).
- Mass
- 109 kg product page
- Power consumption
- 900 W product page 330 W
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier12 lines, in the manufacturer's own wording
- Orbit
- 510 km Sun Synchronous Orbit (~97,4° inclination)
- Local time of the ascending node (LTAN)
- 22:30
- Planned mission duration
- 1-year
- Total mass
- 109 kg
- Peak power
- 900 W
- Usable battery capacity
- 500 Wh
- Solar array nominal power generation
- 330 W
- S-band tmtc uplink
- 1 Mbit/s
- S-band tmtc downlink
- 128 kbit/s
- X-band
- up to 80 Mbit/s
- Launch date
- 14 January 2025
- Launch vehicle
- SpaceX Falcon 9 (Transporter-12)
About
The SIGI mission is a first-of-its-kind satellite developed by Reflex Aerospace, utilizing their innovative OmniFlex customizable satellite configuration. This platform is engineered to meet and exceed demanding mission requirements, offering adaptability and tailored solutions for diverse space applications. The satellite, weighing 109 kg, is designed for remote sensing and has demonstrated complete mission success, exceptional reliability, and continuous operational efficiency over thousands of orbital cycles, validated after more than one year in space. It operates in a 510 km Sun Synchronous Orbit with approximately 97.4° inclination and a Local Time of Ascending Node (LTAN) of 22:30. The planned mission duration is one year. The satellite features a 900 W peak power system, 500 Wh usable battery capacity, and 330 W solar array nominal power generation. For communication, it uses S-band for Telemetry, Tracking, and Command (TMTC) with a 1 Mbit/s uplink and 128 kbit/s downlink, and X-band for data transmission up to 80 Mbit/s. SIGI was launched on January 14, 2025, aboard a SpaceX Falcon 9 rocket as part of the Transporter-12 mission.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
