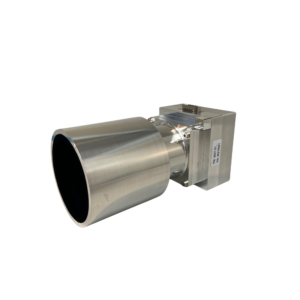

FDSS Fine Digital Sun Sensor
Solar MEMS Technologies
High-accuracy digital sun sensor from Solar MEMS, immune to Earth albedo, with sub-millisecond Sun imaging and plug & play operation.
Typed specifications25 values
Discloses 6 of 8 fields engineers filter by in this category (category median 4).
- Accuracy
- 0.1 ° Better than · datasheet p.1 0.1 ° max · better than 0.1 degree
- Mass
- 170 g datasheet p.1
- Envelope (L×W×H)
- 70 x 60 x 40 mm datasheet p.1
- Output type
- digital datasheet p.1
- Field of view
- 140 ° x · datasheet p.1 140 ° y
- Supply voltage
- 5 V nominal · datasheet p.1 5 V nom. · power supply 5V
- Power consumption
- 2 W consumption · datasheet p.1
- Data interface
- RS-232 datasheet p.1 RS-232 electrical interface RS 232
- Operating temperature
- -30 °C min · datasheet p.1 70 °C max | -30–70 °C operating temperature
- Radiation tolerance (TID)
- 20 krad datasheet p.1 20 krad radiation hardness
- TRL
- 9 ITAR free & space qualified (TRL 9) · datasheet p.1
- Export status
- ITAR-free datasheet p.1
- Sensor class
- fine FDSS Fine Digital Sun Sensor; type: Digital Sun Sensor · datasheet p.1
- Connector
- nanoD connector datasheet p.1
- Random vibration
- 14 g RMS random RMS · datasheet p.1
- Flight heritage
- COTS camera with space heritage and space grade parts datasheet p.1
- Shock qualification
- 1 050 g shock 1050 g at 2 kHz · datasheet p.1
- Sensing element
- CMOS/CCD imager captures images of the Sun in less than one millisecond; COTS… · datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier17 lines, in the manufacturer's own wording
- Industry
- Space
- Full field of view
- 140 x 140º
- Accuracy
- Better than 0.1 degree
- Power supply
- 220VAC (50 Hz) 75 W max
- Optical head temperature range
- -50º to 100º C (no vacuum) / -40º to 80º C (vacuum)
- Optical head mounting
- M6 for rod and/or tripod. Customization available
- Maximum slew rate
- > 10 º/s
- Electrical interface
- RS 232 nanoD connector
- Power
- 2 W
- Dimensions
- 70 x 60 x 40 mm
- Mass
- 170 g
- Operating temperature
- -30º to 70º Celsius
- Random RMS
- 14 gRMS
- Shock
- 1050 g at 2 kHz
- EMC tests
- MIL-STD 461G
- Thickness of aluminum case
- 4 mm
- Radiation Hardness
- 20Krad
About
FDSS of Solar MEMS is a very accurate sun sensor immune to Earth albedo and any other unexpected albedo source. This sensor captures images of the Sun in less than one millisecond and identifies the Sun and any other light source, allowing it to collect extra information like the albedo vector. Its robustness is based on highly used COTS devices together with space grade parts, and it is plug & play, so it does not need any additional electronic support or module for operating. The optical head offers a full field of view of 140 x 140 degrees with an accuracy better than 0.1 degree, making it suitable for precise attitude determination on satellites and other space platforms. The optical head mounting is via M6 for rod and/or tripod, with customization available for specific mission integration needs. The sensor is designed to operate across a wide temperature range, both in vacuum and non-vacuum conditions, reflecting its space-grade design heritage from Solar MEMS’ sun sensor product line.
