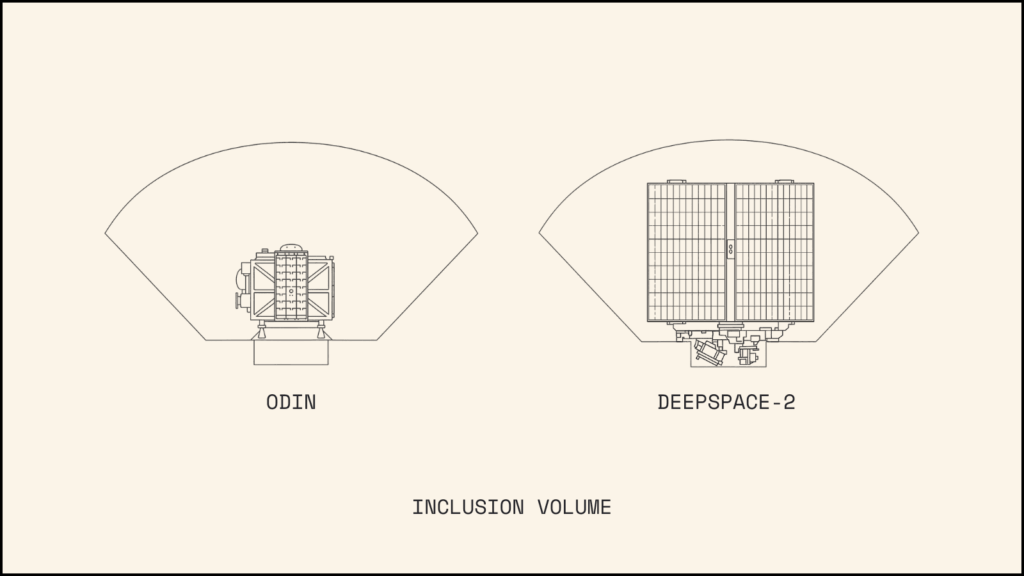

Spacecraft Structures
AstroForge's spacecraft structures are designed to support, deploy, protect, and correctly orient various equipment and instrumentation, ensuring hardware survives launch and functions optimally in space.
Typed specifications3 values
Discloses 1 of 11 fields engineers filter by in this category (category median 1).
- Mass
- 200 kg product page 11 kg | 60 kg
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier7 lines, in the manufacturer's own wording
- Vehicle Mass (DeepSpace-2)
- 200 kg
- Axial Load Factor (DeepSpace-2)
- 8.0g
- Lateral Load Factor (DeepSpace-2)
- 12.5g
- Bolt Circle for Mounting
- 24 inch
- Propellant Tank Mass
- 11 kg
- Xenon Gas Mass
- 60 kg
- Minimum Structural Mode Frequency
- 40 Hz
About
All space missions require hardware to survive the violent environment of launch and be properly positioned in space. Spacecraft structures serve this essential purpose, functioning as vehicles that support, deploy, protect, and correctly orient various equipment and instrumentation. They provide secure attachment points for major components like the spacecraft separation system, propulsion system, navigation components, and solar arrays. A well-designed structure must withstand all loads and forces the spacecraft will encounter while preventing these forces from affecting sensitive attached equipment. Key considerations include maximum allowable mass, expected loads/forces, reentry requirements, landing expectations, temperature extremes, size limitations, and connection to the launch vehicle. The primary structure includes the baseplate, radiator panels, and brackets for various components, all designed to manage loads and ensure structural integrity.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
