SpaceTech Deployable Solar Arrays
SpaceTech GmbH
One-stop deployable and body-mounted solar array solution with in-house panel manufacturing and multi-hinge deployment mechanisms.
Technical specifications
- Fill ratio
- 85%
- Panel size range
- < 0.5 m² (XS) to > 6 m² (XL) per panel
- Deployment technology
- Controlled, unsynchronized multi-hinge deployment using standardized C-spring hinges
- Manufacturing
- In-house panel manufacturing with automated photovoltaic cell laydown
- Product scope
- Body-mounted panels, single-hinge deployable arrays, multi-hinge deployable solar array wings, deployment electronics & HDRM, solar array drive mechanisms, photovoltaic assemblies
- Selected missions
- OneWeb Satellites, York Space Systems, GökTürk-2, Sentinel-5P, Sentinel-6, EUCLID, CHIME, CO2M, CRISTAL, LSTM, PLATO
- Mass
- 3 to 6 kg/m²
- Stowed stiffness
- > 50 Hz out-of-plane, > 120 Hz in-plane
- Deployed stiffness
- > 1 Hz for multi hinge deployments, > 10 Hz for single hinge deployments
- Power EOL
- up to 5 kW
- Interface
- on demand
- Bleed resistor
- 10 / 20 kΩ
- Thermistor
- PT 1000
- Reliability
- > 0.9999
- Power-area density
- 280 W/m² to 320 W/m²
- Acoustic vibration
- 148 dB
- Vibration (Qual.)
- 20 g (3 axes)
About

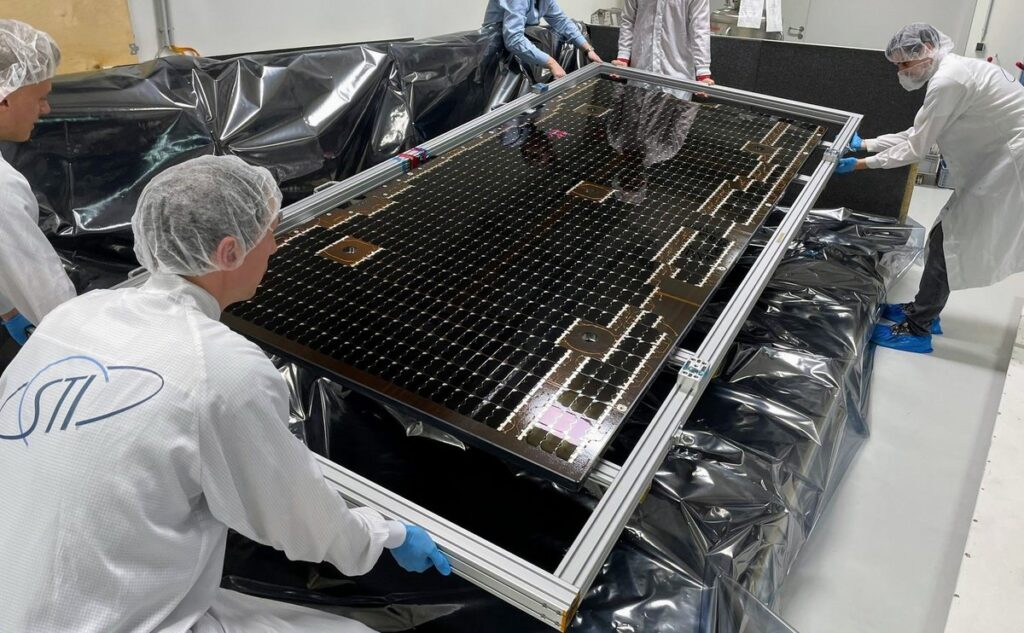

SpaceTech offers a one-stop solution for the full scope of solar arrays: body-mounted panels, single-hinge deployable arrays, and multi-hinge deployable solar array wings, including deployment electronics, hold-down and release mechanisms (HDRM), solar array drive mechanisms, as well as photovoltaic assemblies on panels. Production is highly automated yet flexible, using in-house panel manufacturing and photovoltaic cell laydown together with SpaceTech’s unique deployment mechanisms. Over the last years, SpaceTech has developed a novel multi-hinge deployment mechanism technology suitable for a wide range of solar array sizes, from less than 0.5 square meters (XS) to more than 6 square meters (XL) per panel, featuring controlled, unsynchronized deployment using C-spring hinges of standardized sizes. SpaceTech serves both NewSpace mega-constellations and the most demanding institutional missions; examples of its solar array activities include the Airbus OneWeb Satellites constellation, York Space Systems, GökTürk-2, Sentinel-5P, Sentinel-6, EUCLID, CHIME, CO2M, CRISTAL, LSTM and PLATO.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
