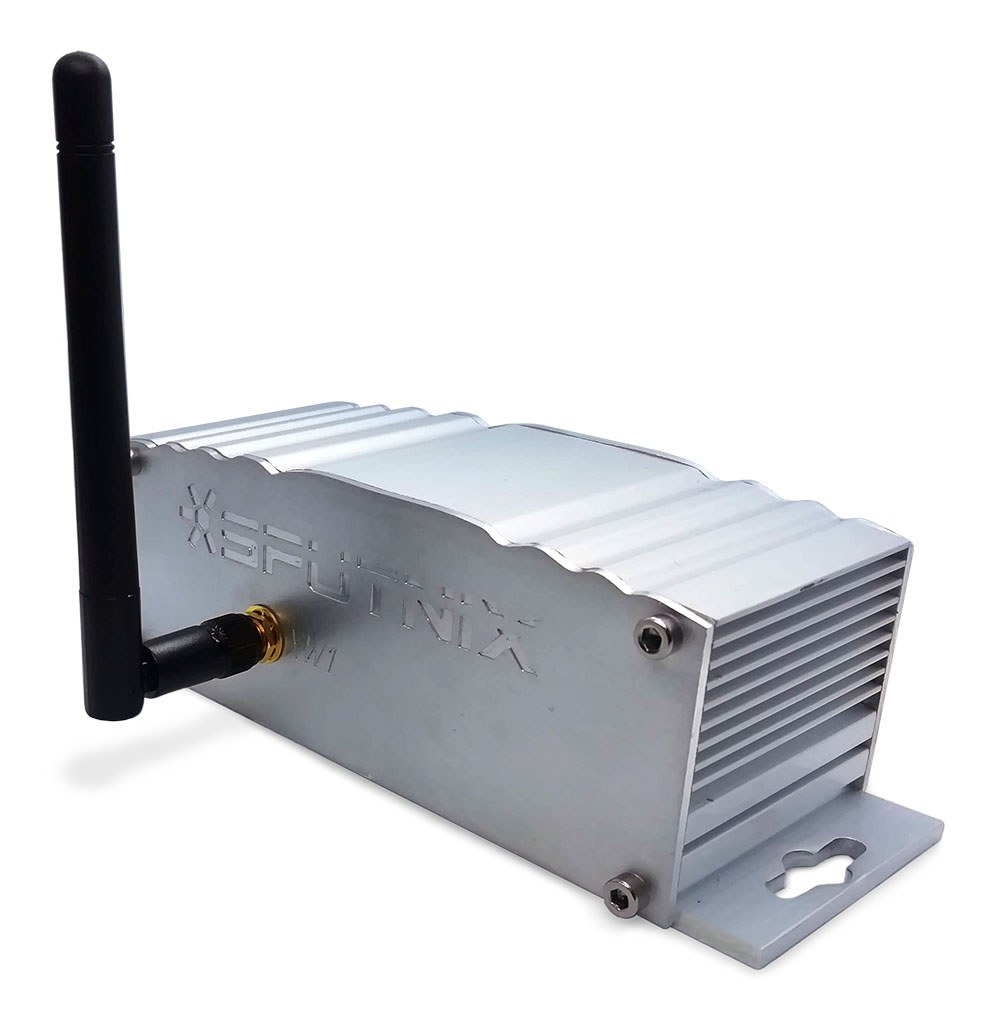

SX-GND-03 Laboratory UHF Transceiver
SPUTNIX
Laboratory UHF transceiver for working with satellites in lab conditions over the standard radio channel. Connects to a PC via USB and is controlled by Houston CC software, allowing the frequency to be tuned in software.
Typed specifications3 values
Discloses 0 of 13 fields engineers filter by in this category (category median 2).
- Envelope (L×W×H)
- 149 × 64 × 49 product page
- Power consumption
- 0.01 W product page
- Transmit power
- 0.01 W product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier11 lines, in the manufacturer's own wording
- Type
- Laboratory UHF transceiver
- Frequency range
- 398–410, 435–438 MHz
- Tx output power
- 10 mW (10 dBm)
- Power at antenna
- 28 mW
- Interface
- mini-USB 2.0
- Antenna
- Stick
- Mass (with antenna)
- ≤ 235 g
- Dimensions
- 149 × 64 × 49 mm
- Supply voltage
- 4.7–5.5 V
- Software
- Houston CC
- Operating temperature
- +15 … +45 °C
About
Laboratory UHF transceiver for working with satellites in lab conditions over the standard radio channel. Connects to a PC via USB and is controlled by Houston CC software, allowing the frequency to be tuned in software.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
